GOODMAN PTSB330E Amana Standard Electrical Sub Base for 30 Amp Units

Product Description

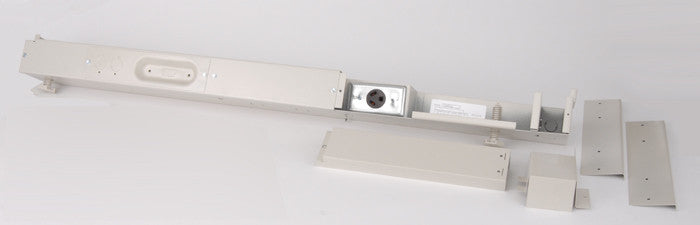

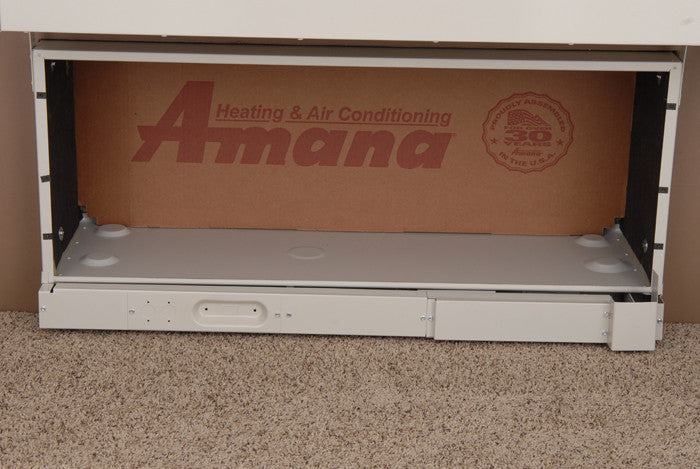

The Goodman PTSB330E is a reliable electrical sub base designed for 30 amp units. This sub base provides a stable support for your PTAC system and includes a receptacle for easy installation. The fully skirted design ensures wiring is concealed, creating a clean appearance.

• Pre-wired for easy electrical connections
• Compatible with NEC requirements for safety
• Adjustable leveling legs for installation accuracy

Product Highlights

This product is ideal for both new installations and replacements, ensuring compliance with safety standards while providing functional support.

Product Information

Standard Information

• Brand: Goodman
• Model: PTSB330E
• Power Rating: 30 Amp

Technical Specifications

• Minimum clearance from bottom of wall sleeve to finished floor: three and three-quarter inches
• Maximum height clearance from bottom of wall sleeve to finished floor: five inches
• Minimum clearance between wall sleeve flange and finished wall: two and three-quarter inches
• Installation: Can be installed before or after wall sleeve installation
• Grounding screw included
