GOODMAN PTSB320E Amana Standard Electrical Sub Base for 15 and 20 Amp Units

Product Description

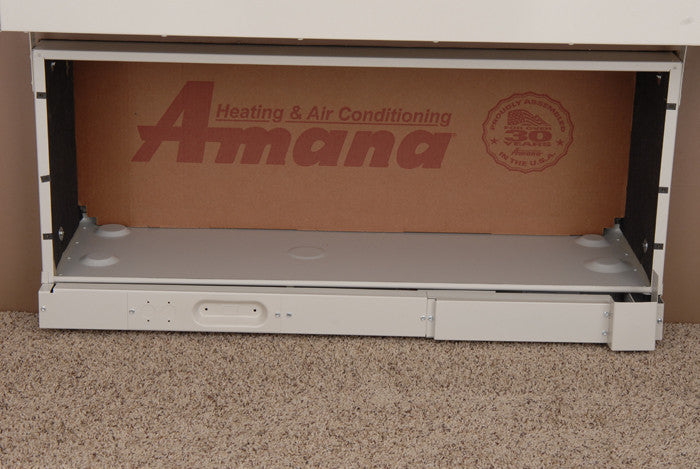

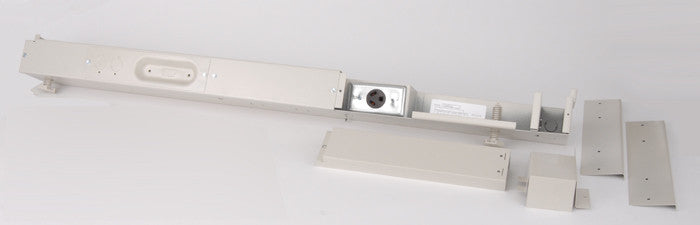

The Goodman PTSB320E is an electrical sub-base designed for ease of installation under PTAC units. This sub-base provides stability for the PTAC units with features such as leveling legs and an electrical receptacle.

• Prewired for quick connections
• Meets NEC requirements
• Clean appearance with hidden wiring

Product Highlights

This sub-base simplifies electrical installations and maintains a neat look.

Product Information

Standard Information

• Brand: Goodman
• MPN: PTSB320E

Technical Specifications

• Electrical Connections: Made on left side
• Minimum Clearance: Three and three-quarters inches from wall sleeve bottom to finished floor
• Maximum Height Clearance: Five inches from wall sleeve bottom to finished floor
• Minimum Flange Clearance: Two and three-quarters inches from wall sleeve flange to finished wall
• Grounding Screw: Provided
