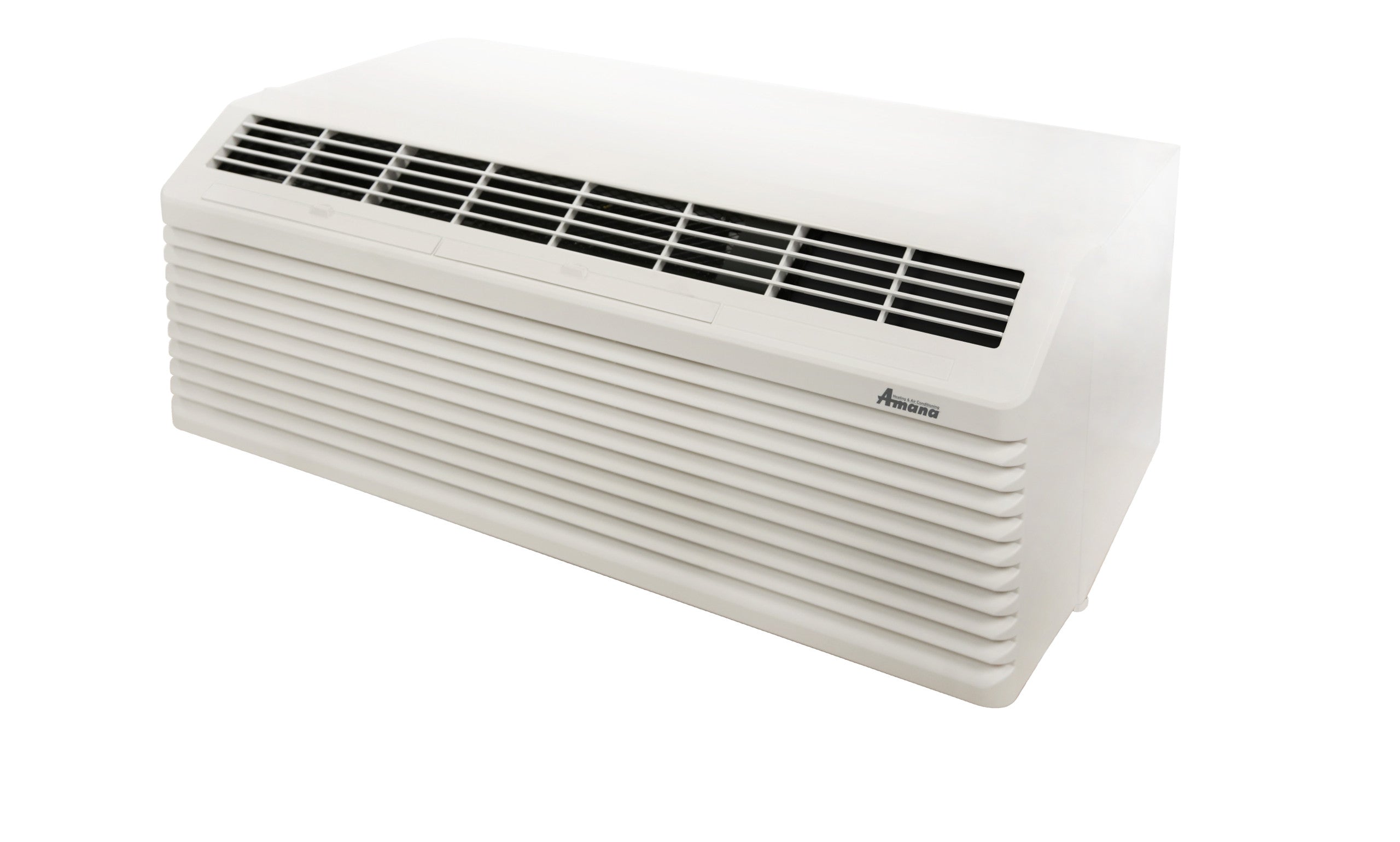

Goodman PTH154J35AXXX Ptac Heat Pump 14600 Btu 265V

Product Description

The Goodman PTH154J35AXXX is a commercial-grade packaged terminal air conditioner (PTAC) with an integrated heat pump and backup electric heat strip, designed for through-the-wall installation in hotels, motels, and commercial buildings. It delivers 14,600 BTU of cooling capacity at an EER of 10.4 operating on 265 volts, making it suitable only for buildings wired for 265/277-volt service. The heat pump provides 14,100 BTU of heating output, with a 3.7 kW (12,600 BTU) electric resistance heat strip as backup. This unit uses R32 refrigerant, which carries a lower Global Warming Potential than R410A. A licensed HVAC technician should handle all installation and commissioning work.

This unit is for commercial use only and is not intended for residential applications. It is engineered for spaces of approximately 450 to 575 square feet, making it well-suited for guest rooms, office suites, and similar commercial environments. The PTH154J35AXXX requires a wall thermostat for operation and is compatible with both wired and wireless wall thermostats. It also supports RF and Bluetooth connectivity for integration with energy management systems such as Eden EMS and DigiSmart controllers, enabling site-wide configuration, diagnostics, and automated setback rules. This model meets California and Washington state requirements.

Key Features

• 14,600 BTU cooling at 265V with a 10.4 EER rating
• 14,100 BTU heat pump output with 3.7 kW electric backup heat strip
• R32 refrigerant with lower Global Warming Potential than R410A
• Integrated Bluetooth and RF connectivity for Eden EMS and DigiSmart compatibility
• Sound Transmission Class (STC) rating of 28 for reduced noise transfer into occupied spaces
• Room Freeze Protection activates fan and electric heat when ambient temperature reaches 40 degrees F or below
• Advanced condensate dispersion system routes excess condensation onto the outdoor coil for fast evaporation
• 30-second fan-off delay improves efficiency by dispersing conditioned air after compressor shutdown

Compatibility

Fits a standard 42-inch PTAC sleeve measuring 42 inches wide by 16-1/16 inches high by 14-1/8 inches deep. Required wall cutout dimensions are 42-1/4 inches wide by 16-1/4 inches high. A PTAC sleeve and rear grille are required for new installations and are sold separately. Wireless thermostat adapters, room occupancy sensors, and DigiSmart controllers are also sold separately.

Installation Notes

Installation must be performed by a qualified HVAC technician in a commercial building wired for 265/277-volt service. Power to the circuit must be shut off and locked out before beginning any installation or service work. A dedicated 20-amp circuit with a 7-20P receptacle is required. A PTAC sleeve and rear grille are necessary for new installations and are not included with the unit.

Technical Specifications

• Cooling Capacity: 14,600 BTU/h at 265V
• EER: 10.4 at 265V
• Heat Pump Heating Capacity: 14,100 BTU/h at 265V
• Heat Pump COP: 3.0 at 265V
• Electric Heat Strip Capacity: 3.7 kW / 12,600 BTU/h at 265V
• Voltage: 265V
• Amperage (Cooling): 6.6 amps at 265V
• Amperage (Electric Heat): 14.0 amps at 265V
• Wattage (Cooling): 1,405 watts at 265V
• Wattage (Electric Heat): 3,700 watts at 265V
• Airflow (CFM): 314 CFM low / 400 CFM high
• Dehumidification: 4.4 pints/hr
• Refrigerant Type: R32
• Heat Type: Heat pump with backup electric resistance
• Control Type: Wall thermostat required
• Connectivity: Bluetooth and RF
• Sleeve Size Required: 42 inches wide by 16-1/16 inches high by 14-1/8 inches deep
• Net Weight: 113 pounds
• Certifications: ETL / AHRI
• Application: Commercial use only

Standard Information

• Brand: Goodman
• Manufacturer Part Number: PTH154J35AXXX
