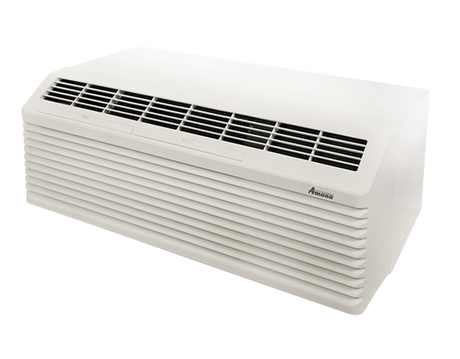

Goodman PTH124J50AXXX Amana Digismart PTAC Heat Pump 12K 265V 30A R32 California Approved

Product Description

The GOODMAN PTH124J50AXXX Amana Digismart PTAC Heat Pump 12K 265V is engineered with Digismart Technology, offering a solution to manage energy costs by enabling control of all units via a centralized system. This PTAC unit operates quietly due to its two-fan design and ultra-quiet indoor tangential 2-speed blower. It uses R-32 refrigerant and has AHRI & CEC Performance Certification.

• Integrated Bluetooth & RF connectivity and the new Amana brand mobile app
• Features advanced unit troubleshooting and diagnostics
• Improved design and materials to reduce operating noise transmission
• UL 2-40 compliant materials and assembly

Product Highlights

The Amana PTH124J50AXXX PTAC heat pump provides efficient heating and cooling with advanced control features and quiet operation.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: PTH124J50AXXX

Technical Specifications

• System Model#: PTH124J50AXXX
• Controls: Top Right
• Control Type: Digital
• Cooling Capacity (BTUH): 12,000/11,600
• Heating Capacity (BTUH): 17,100/14,000
• Reverse Cycle Heathing (BTUH): 11,000/10,800
• Refrigerant: R-32
• EER: 11.5/11.5
• Rated Voltage: 265V, 60Hz
• Electric Heat: 5.0 kW
• MOCP: 30 Amps
• Power Cord: 7-30 P
• W x H x D (inches): 42 x 16 1/16 x 14 1/8
• Performance Certification: AHRI & CEC
• BTU: 12000
• Power: 5.0 kW
• Amperage: 30 Amp
• Voltage: 265V
