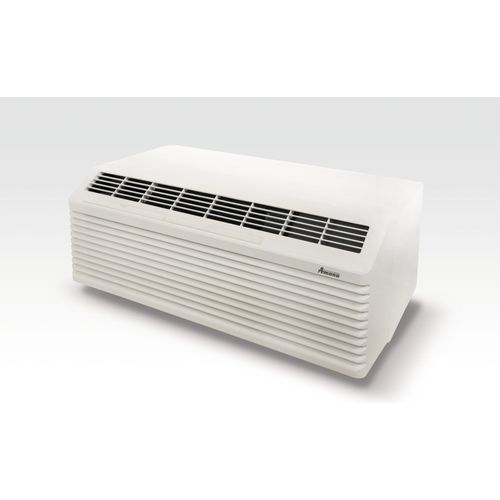

Goodman PTH094J25AXXX Amana Digismart PTAC Heat Pump 9K 265V

Product Description

The GOODMAN PTH094J25AXXX Amana Digismart PTAC Heat Pump 9K 265V offers a solution to cut energy costs with Digismart Technology, allowing control of the unit via Bluetooth & RF connectivity and the Amana mobile app. It features a two-fan design and an ultra-quiet indoor tangential 2-speed blower. The unit is constructed with UL 2-40 compliant materials.

• Integrated Bluetooth & RF connectivity and the new Amana brand mobile app
• Features advanced unit troubleshooting and diagnostics
• Sound Transmission Class (STC 29) rating for all units
• UL 2-40 compliant materials and assembly

Product Highlights

The Amana Digismart PTAC Heat Pump offers integrated connectivity, advanced diagnostics, and quiet operation.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: PTH094J25AXXX

Technical Specifications

• System Model#: PTH094J25AXXX
• Controls: Top Right
• Control Type: Digital
• Cooling Capacity (BTUH): 9,000/9,000
• Heating Capacity (BTUH): 8,500/6,800
• Reverse Cycle Heathing (BTUH): 8,200/8,000
• Refrigerant: R-32
• EER: 12.4/12.5
• Rated Voltage: 265V, 60Hz
• Electric Heat: 3.0 kW
• MOCP: 15 Amps
• COP: 3.6 / 3.6 Amps
• Power Cord: 7-20 P
• Number of Fan Motors: 2
• Cord Included: Yes
• Corrosion Protection: No
• BTU Cool: 9000 Btu
• BTU Heat: 8200 Btu
• Voltage: 265 V
• Amps: 15 A
• Heating Type: Heat Pump
• Temperature Limiting: Yes
• Drain Kit Available: Yes
• Remote Thermostat: Wired/Wireless Available
• Wi-Fi Connectivity: Yes
