Goodman PTC154J35AXXX Amana Digismart PTAC Heat/Cool 15k 265V

Product Description

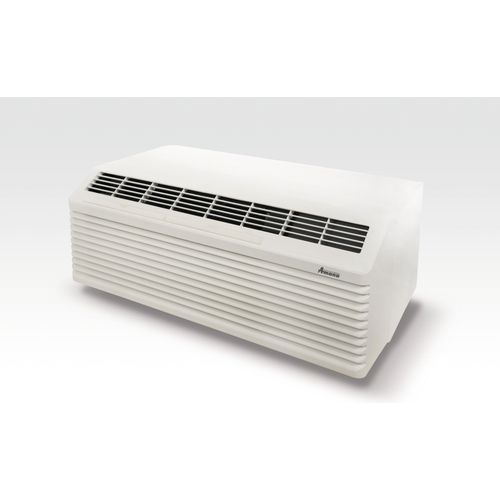

The GOODMAN PTC154J35AXXX Amana PTAC Heat/Cool 15K 265V offers Digismart Technology to control unit settings. Features a two-fan design and an ultra-quiet indoor tangential 2-speed blower. Integrated Bluetooth & RF connectivity works with the Amana mobile app. Requires a thermostat for operation.

• Integrated Bluetooth & RF connectivity and the new Amana brand mobile app
• Reduces unit setting and unit configuration time
• Features advanced unit troubleshooting and diagnostics

Product Highlights

The Amana PTAC offers unique Digismart Technology, ultra-quiet operation, and integrated Bluetooth & RF connectivity.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: PTC154J35AXXX

Technical Specifications

• System Model#: PTC154J35AXXX
• Control Type: Thermostat Required
• Capacity (BTUs) Cooling: 14,800/14,900
• Capacity (BTUs) Electric Heat: 12,000/9,900
• Refrigerant: R-32
• EER: 10.3/10.4
• Rated Voltage: 265V, 60Hz
• Electric Heat: 3.7 kW
• MOCP: 20 Amps
• Power Cord: 7-20 P
• Number of Fan Motors: 2
• Cord Included: Yes
• Corrosion Protection: No
• Wall Sleeve Depth: 14.125 in
• Wall Sleeve Height: 16.0625 in
• Wall Sleeve Width: 42 in
• Voltage: 265 V
• Amps: 20 A
• Certifications And Listings: CSA Type 2, Class C
• BTU Class: 15000
• Heating Type: Resistance Heat
• Temperature Limiting: Yes
• Drain Kit Available: Yes
• Remote Thermostat: Wired/Wireless Available
• Wi-Fi Connectivity: Yes
