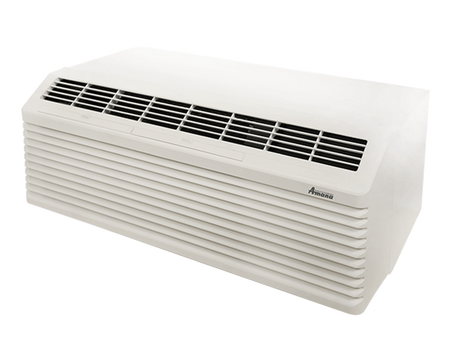

Goodman PTC094J35AXXX Amana Digismart PTAC Heat/Cool 9K 265V, 20A, R32, California Approved

Product Description

The Goodman PTC094J35AXXX Amana PTAC Heat/Cool 9K 265V offers Digismart Technology to control unit settings. Features include a two-fan design and ultra-quiet indoor tangential 2-speed blower. Integrated Bluetooth & RF connectivity works with the Amana mobile app. Improved design and materials reduce operating noise transmission. UL 2-40 compliant materials and assembly.

• Integrated Bluetooth & RF connectivity and the new Amana brand mobile app
• Reduces unit setting and unit configuration time
• Features advanced unit troubleshooting and diagnostics

Product Highlights

The Amana PTAC unit provides a solution to cut energy costs with quiet operation and advanced connectivity.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: PTC094J35AXXX

Technical Specifications

• System Model#: PTC094J35AXXX
• Control Type: Thermostat Required
• Capacity (BTUs) Cooling: 9,200/9,000
• Capacity (BTUs) Electric Heat: 12,000/9,900
• Refrigerant: R-32
• EER: 12.1/12.2
• Rated Voltage: 265V, 60Hz
• Electric Heat: 3.7 kW
• MOCP: 20 Amps
• Power Cord: 7-20 P
• W x H x D (inches): 42 x 16 1/16 x 14 1/8
• Performance Certification: AHRI & CEC
• Brand: Amana
• Type: Cooling
• Voltage: 250 V
• Item Length: 22 in
• Item Width: 42 in
• MPN: PTC094J35AXXX
• Model: PTC094J35AXXX
• Features: Amana PTC094J35AXXX PTC Series 9
• California Prop 65 Warning: Yes
• BTUCooling: 9000
• CFM: 290
• Fan Speeds: 2
• UPC: 663051658462
• BTU: 9000
• kW: 3.7
• Amps: 20
• Input Voltage: 265V
