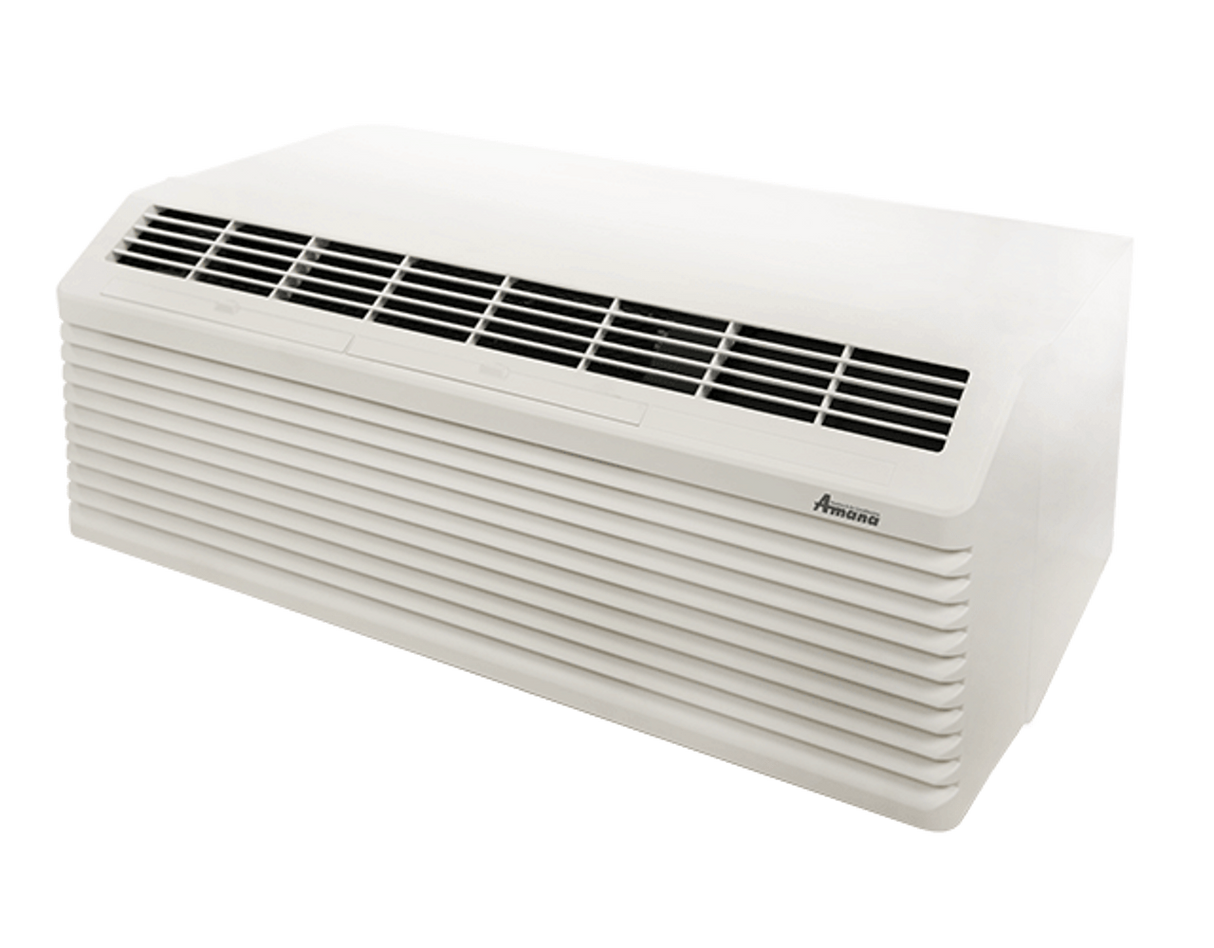

Goodman PTC074J35AXXX Amana Digismart PTAC Heat/Cool 7K 265V

Product Description

The GOODMAN PTC074J35AXXX Amana PTAC Heat/Cool 7K 265V offers Digismart Technology to control unit settings. Features a quiet operation due to its two fan design and ultra-quiet indoor tangential 2-speed blower. This unit uses R-32 refrigerant and requires a thermostat for operation. It has a cooling capacity of 7,000 BTU and electric heat capacity of 12,000/9,900 BTU.

• Integrated Bluetooth & RF connectivity and the new Amana brand mobile app
• Features advanced unit troubleshooting and diagnostics
• Improved design and materials to reduce operating noise transmission

Product Highlights

The Amana PTAC combines smart technology with quiet operation, offering efficient heating and cooling with streamlined control and modern design.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: PTC074J35AXXX
• Country of Origin: United States

Technical Specifications

• System Model#: PTC074J35AXXX
• Control Type: Thermostat Required
• Capacity (BTUs) Cooling: 7,000/7,000
• Capacity (BTUs) Electric Heat: 12,000/9,900
• Refrigerant: R-32
• EER: 12.8/12.8
• Air Volume CFM: 234/234
• Rated Voltage: 265V, 60Hz
• Electric Heat: 3.7 kW
• MOCP: 20 Amps
• Power Cord: 7-20 P
• W x H x D (inches): 42 x 16 1/16 x 14 1/8
• Performance Certification: AHRI & CEC
• Brand: Amana
• Model #: PTC074J35AXXX
