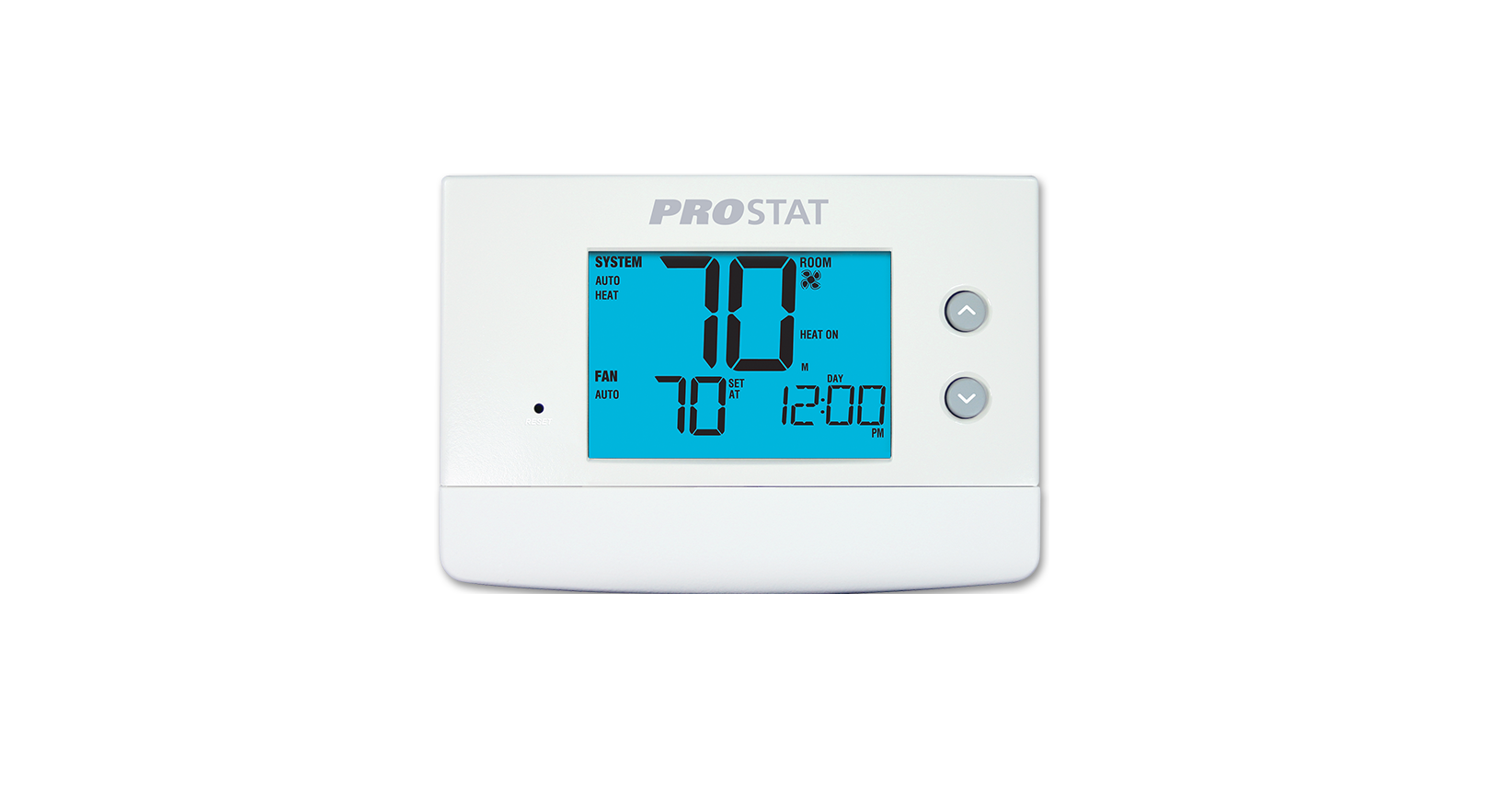

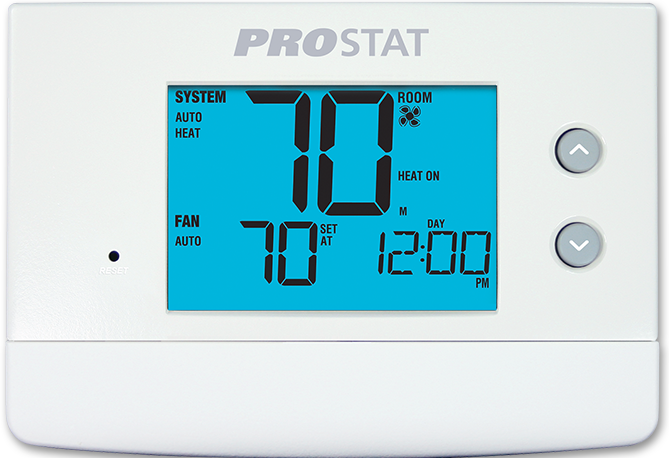

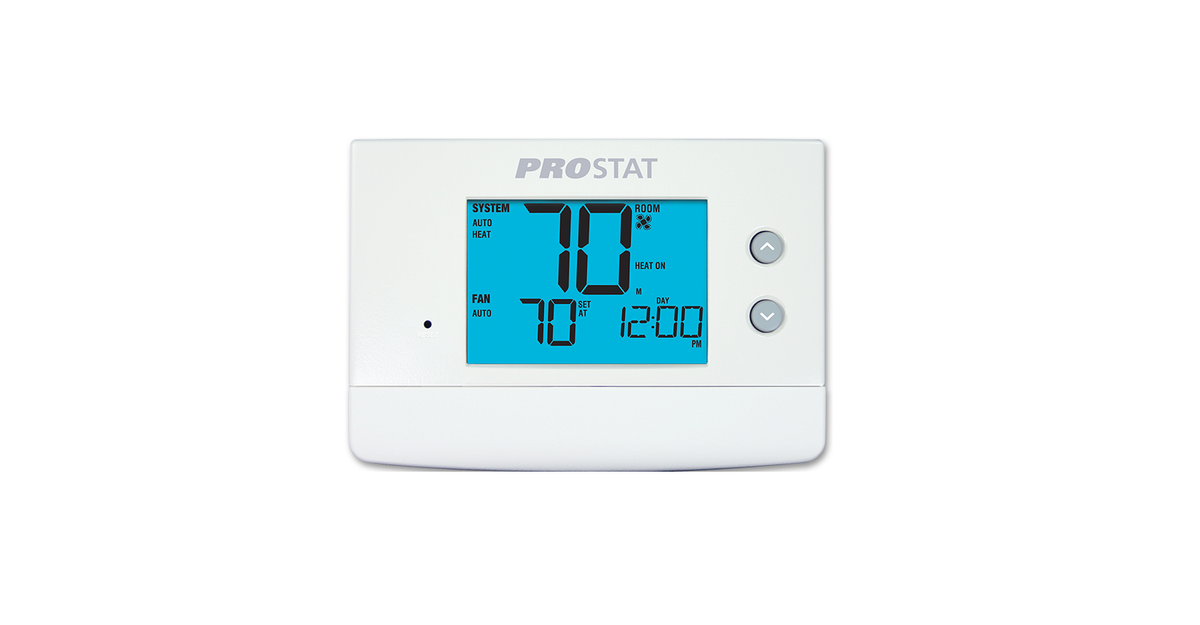

Goodman PSP2111 2 Heat/1 Cool Thermostat

Product Description

The Goodman PSP2111 is a thermostat designed for residential heating and cooling systems. It supports two heat and one cool configuration. This thermostat allows for adjustable temperature control within a range of thirty-five degrees to ninety-nine degrees Fahrenheit. It has an accuracy of plus or minus two degrees Fahrenheit. Programmable options include seven-day, five plus one plus one-day, and one-day schedules with up to four time periods each day.

• Programmable for seven-day, five plus one plus one day or one-day use with four time periods daily.
• Includes a dry contact input for twist timers and condensate overflow warnings.
• Features adjustable and fixed deadband settings.

Product Highlights

The Goodman PSP2111 offers flexible programming options, geofencing capabilities, and user-friendly operations.

Product Information

Standard Information

• Brand: Goodman
• MPN: PSP2111

Technical Specifications

• Electric Rating: 20 - 28 VAC, 5 VA max
• Output Rating: Y1, Y2, G - 0.8A, all others 0.4A, 3A total max on all outputs
• Temperature Control Range: 35 - 99 F (2 - 36 C)
• Temperature Control Accuracy: +/- 2 F (+/- 1 C)
• Outdoor Sensor: 10K NTC thermistor
• Inputs: Dry contact (condensate, twist timer, more)
• Outputs: Y1, G, W1/O/B, W2

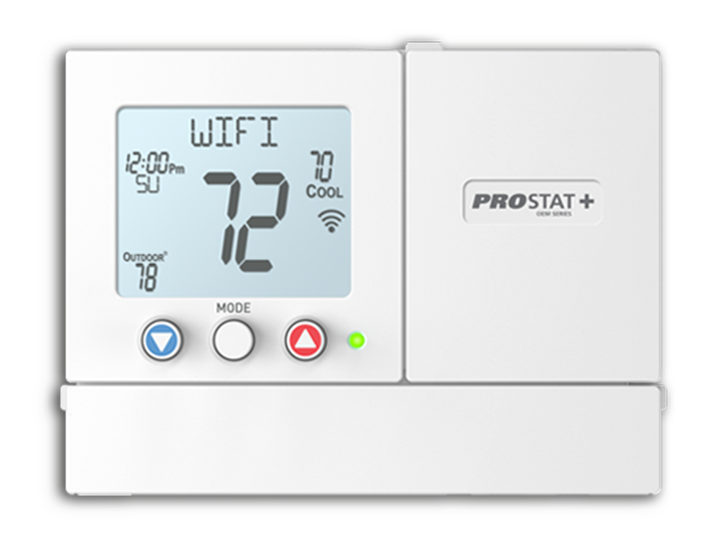

• Connectivity: 2.4 GHz b/g/n optional WiFi module
• Programming: 7-Day, 5/1/1 Day or 1-Day Programming
• Vacation Programming: 365-Day Vacation Programming (When Connected to ProStat+ Web Portal)
• First Stage Deadband: Adjustable first stage deadband (1 - 6 F)
• Second Stage Deadband: Fixed 2 degree Second Stage Deadband
• Keypad: Keypad Lock
• Language: English, Spanish, or French for Scrolling Display
• Equipment Fault Protection: FDD Notification
• Condensate Overflow: Warning System
• LED: Bi-color LED Indicates Heating or Cooling
• Buttons: Backlit, Color Coded
• Backlight: Adjustable Backlight Intensity
• Title 24 Compliance: Complies with 2016 Title 24, Part 6 Thermostat Requirements
• Geofencing: Automatic settings using the ProStat+ app location services
