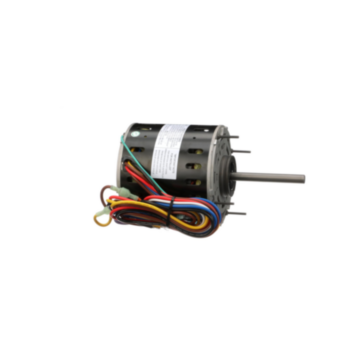

GOODMAN PP3464 Blower Motor 1/6-1/2hp 230v

Product Description

The GOODMAN PP3464 blower motor is a multi-speed PSC motor designed for HVAC systems. It operates at a voltage of 208-230 V, with horsepower ranging from one-sixth to one-half. This motor features a frame size of forty-eight, making it easy to install in various applications.

• Multi-speed PSC motor
• Reversible rotation
• Direct drive system

Product Highlights

This blower motor is suitable for use in heating, ventilation, and air conditioning applications.

Product Information

Standard Information

• Motor Type: Blower Motor
• Speed: Multi Speed

Technical Specifications

• Motor Design: PSC
• Frame: 48
• Horsepower: 1/6-1/2 Hp
• Voltage: 208-230 V
• Phase: 1 Ph
• Frequency: 50/60 Hz
• Class: B
• Amperage: 3.9 A
• Bearing Type: Sleeve Bearing
• Drive Type: Direct Drive
• Rotation: Reversible
• Speeds: 4 Speed
• RPM: 1075 rpm
• Shaft Size: 0.5 in x 4.5 in
• Width: 6.8 in
• Height: 7.2 in
• Depth: 15.1 in
