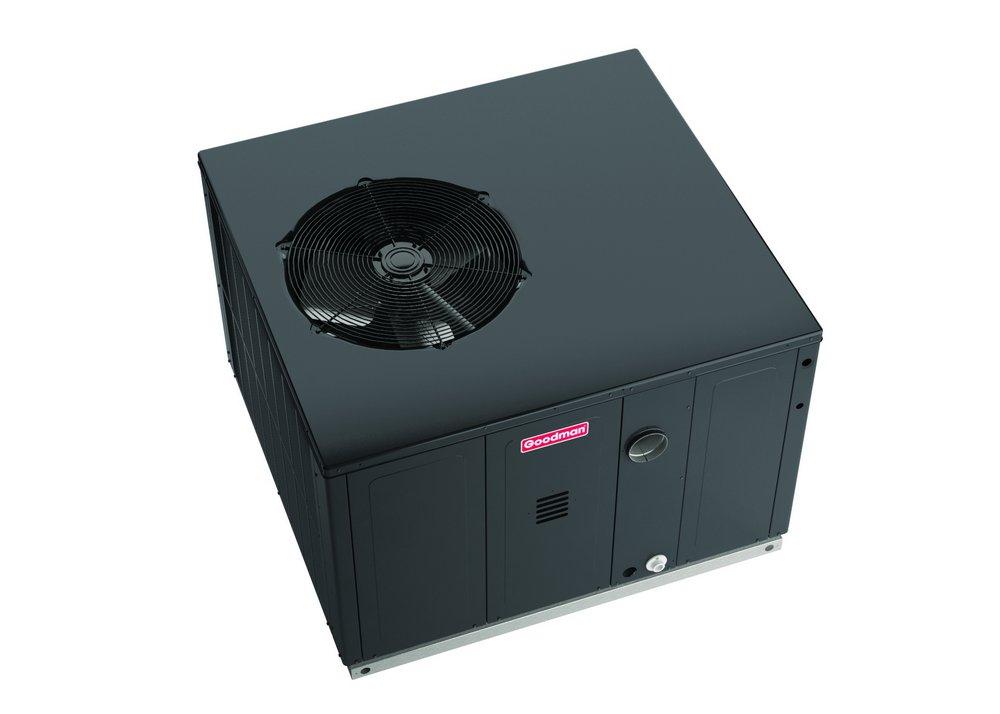

Goodman GPDM34810041 Packaged Furnace Heat Pump Unit 4.0 Ton 100,000 BTU 13.4 SEER2

Product Description

The Goodman GPDM34810041 is a convenient all-in-one HVAC unit designed to meet your heating and cooling needs. This 4.0 Ton Packaged Furnace and Heat Pump Unit offers 100,000 BTUs of heating power and an efficient 13.4 SEER2 rating.

• Combines the performance of a gas-fired furnace and heat pump in one package
• Equipped with a multi-speed ECM blower for efficient airflow
• Designed for easy installation with downflow or horizontal configurations

Product Highlights

This Goodman unit features dual-fuel capability, combining heat pump and gas heating technologies for year-round efficiency. It uses an energy-efficient scroll compressor with a sound blanket, ensuring smooth and reliable operations. Built with heavy-duty aluminized-steel heat exchangers, the GPDM34810041 offers durability and efficient heat transfer.

Product Information

Standard Information

• Brand: Goodman
• MPN: GPDM34810041

Technical Specifications

• AFUE: 81%
• EER2: 10.6
• HSPF2: 6.7
• SEER2: 13.4
• Capacity: 4.0 Tons
• Cooling Capacity: 44,500 BTU
• High Fire Input: 100,000 BTU
• Low Fire Input: 75,000 BTU
• High Fire Output: 81,000 BTU
• Low Fire Output: 60,750 BTU
• Maximum Air Flow: 1,628 CFM
• Minimum Air Flow: 1,290 CFM
• Sound Level: 76 dB
• Voltage: 208/230 Volts
• Frequency: 60 Hz
• Phase: 1
• Minimum Circuit Ampacity: 31.7 Amps
• Recommended Breaker Size: 50 Amps
• Product Depth: 51 Inches
• Product Width: 47 Inches
• Product Height: 42.5 Inches
• Product Weight: 525 Pounds
• Shipping Weight: 545 Pounds
• Refrigerant Type: R-410A
• Blower Motor Type: Multi-Speed
• Compressor Stages: Single Stage
• Gas Conversion Kit: Available
• Installation Location: Outdoor
• Operating Mode: Heating and Cooling
• Fuel Type: Natural Gas
• Motor Type: ECM
• Modulating/Staging: Single Stage
• DOE Regional Compliance: Nationwide
• Low NOx Emissions: Yes
• Parts Warranty: 10 Limited Years
• Compressor Warranty: Limited 10 Years
• Heat Exchanger Warranty: 20 Limited Years
• UPC: 663051662315
• AHRI Reference Number: 209319585
• Product Category: Packaged HVAC Unit
• Energy Star Listed: No
• ETL Listed: Yes
• ISO Certified: Yes
• AHRI Certified: Yes
• General Information: Type - Gas/Electric Packaged Unit, Configuration - Downflow/Horizontal, Operating Mode - Heating and Cooling, Product Line - GPDM3
