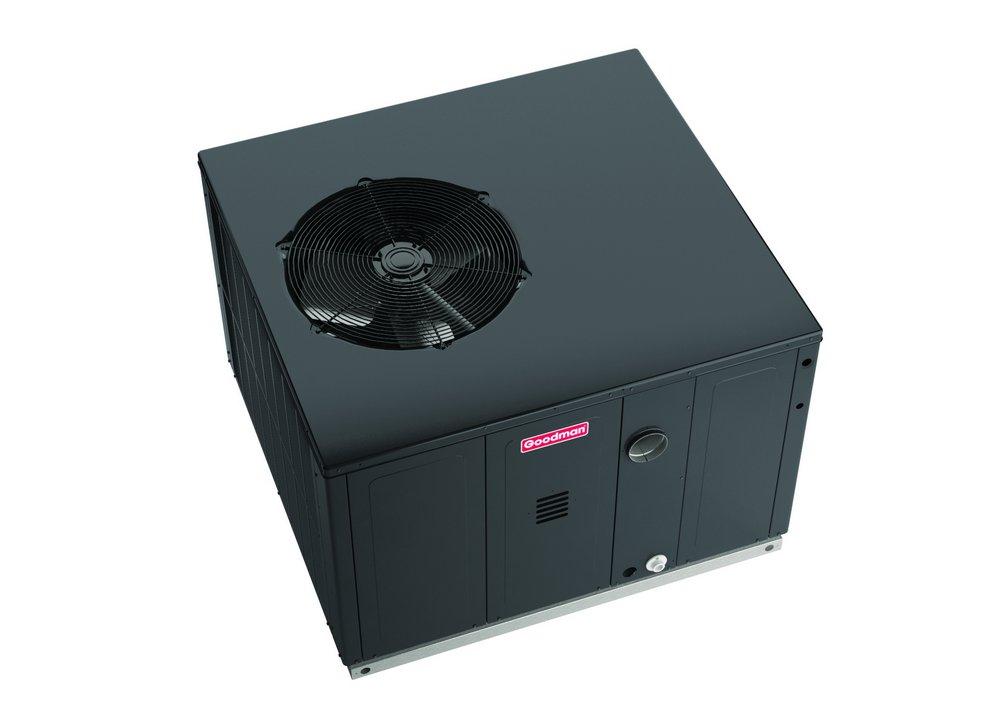

Goodman GPUM34208041 Packaged Gas/Electric Central Air System 3.5 Ton Cooling 80,000 BTU Heating 13.4 SEER2 81% AFUE

Product Description

The Goodman GPUM34208041 is a packaged gas/electric central air system. It features 3.5 tons of cooling and 80,000 BTU/hr heating capacity, making it suitable for residential applications. The unit provides 13.4 SEER2 cooling efficiency and 81% AFUE heating efficiency. It is designed for either downflow or horizontal installation.

• Energy-efficient scroll compressor
• Multi-speed ECM blower motor
• Heavy-duty stainless-steel heat exchanger

Product Highlights

This unit combines a gas-fired furnace, air conditioning condenser, evaporator coil, and multi-speed ECM blower into one package. It meets California's ultra-low NOx emissions standards, making it compliant with strict air quality regulations.

Product Information

Standard Information

• Brand: Goodman
• MPN: GPUM34208041
• Type: Gas/Electric Packaged Unit
• Fuel Type: Natural Gas
• Configuration: Downflow/Horizontal

Technical Specifications

• Cooling Capacity: 3.5 Tons
• Heating Capacity: 80,000 BTU/hr
• SEER2: 13.4
• AFUE: 81%
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Product Depth: 51 Inches
• Product Width: 47 Inches
• Product Height: 42.5 Inches
• Product Weight: 420 Pounds
• Shipping Weight: 545 Pounds
• Refrigerant Type: R-410A
• Blower Motor Type: Multi-Speed
• Compressor Stages: Single Stage
• Minimum Circuit Ampacity: 22.8 Amps
• Recommended Breaker Size: 35 Amps
• Maximum Sound Level: 78 dB
• Maximum Air Flow: 1225 CFM
• Minimum Air Flow: 960 CFM
• Operating Mode: Heating and Cooling
• AHRI Certified: Yes
• ISO Certified: Yes
• ETL Listed: Yes
• DOE Regional Compliance: Nationwide
• Ultra Low NOx Emissions: Yes
• Parts Warranty: 10 Limited Years
• Compressor Warranty: Limited* 10 Years
• Heat Exchanger Warranty: 20 Limited Years
