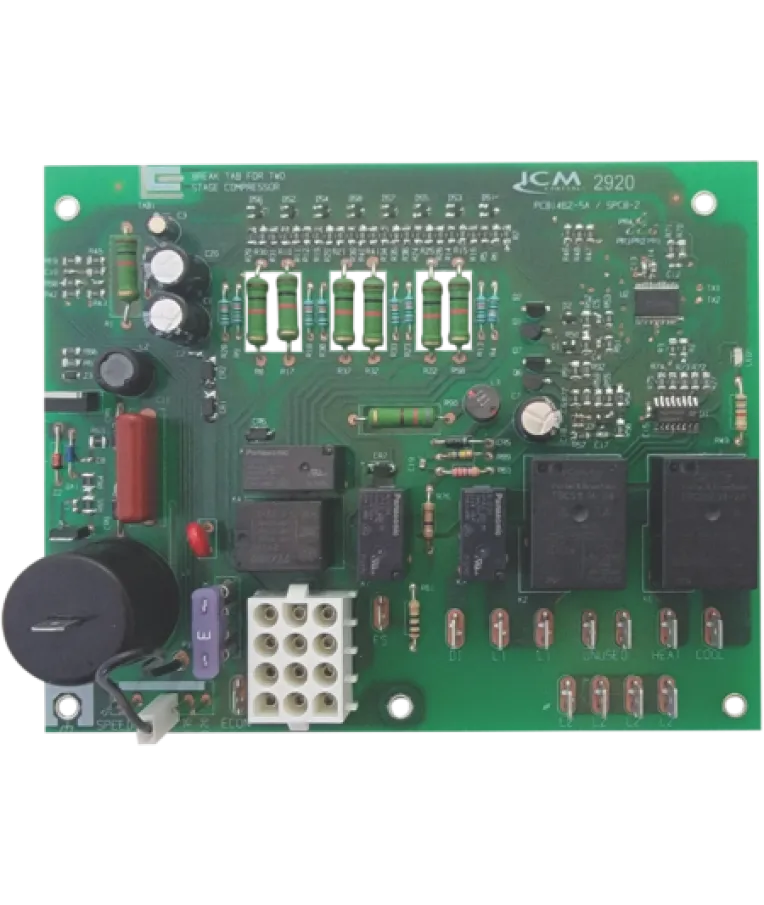

Goodman ICM2920 replacement gas furnace ignition control board

Product Description

The GOODMAN ICM2920 is a replacement furnace control module that manages blower motors, gas valve, and spark ignitor sequences. It powers a cooling compressor and offers short-cycling protection. Features include selectable heat blower off-delay time and the ability to control 2-stage cooling. Onboard LED flash codes aid in troubleshooting, and repeated ignition failures disable heat operation for safety.

• Powers a cooling compressor and protects against short-cycling
• Selectable heat blower off-delay time
• Control can be used for 2-stage cooling by removing a tab

Product Highlights

Automated gas ignition control board monitors the ignition sequence and maintains complete safety circuit monitoring.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: ICM2920

Technical Specifications

• Line voltage: 24 VAC (RMS)
• Line frequency: 50/60 Hz
• Control voltage: 18-30 VAC, 0.15A maximum
• Fuse rating: 3 A
• Relay Heat/cool N.O.: 24 VAC
• Relay Heat/cool N.C.: 24 VAC
• Inducer: 4A FLA, 4A LRA @ 230 VAC
• Gas valve: 1.5A @ 24 VAC pilot duty
• Compressor contactor: 1.0 A @ 24 VAC
• Relay contact ratings Heat/cool N.O.: 15A FLA, 30A LRA @230 VAC
• Relay contact ratings Heat/cool N.C.: 16A FLA, 36A LRA @230 VAC
• Replaces: Goodman PCBAG123, PCBAG123S direct spark ignition controls
