Goodman hec153j50axxx Ptac Air Conditioner 14800 Btu/h

Product Description

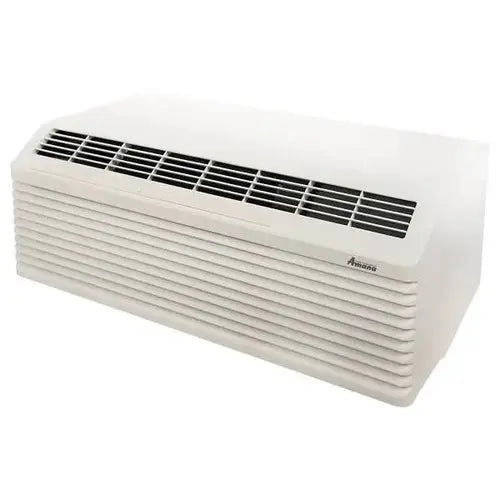

The GOODMAN hec153j50axxx is a packaged terminal air conditioner (PTAC) designed for through-the-wall installation in single-room applications. It operates on R32 refrigerant and delivers 14800 BTU/h at 230 volts or 14500 BTU/h at 208 volts, with an Energy Efficiency Ratio (EER) of 10.7 at 230 volts and 10.8 at 208 volts. This is an indoor unit produced under the Amana PTAC line and distributed by Goodman. Installation is typically performed by licensed HVAC technicians in commercial, multi-family, or residential settings where wall-sleeve PTAC systems are already present or being newly constructed.

The hec153j50axxx is suited for hotel guest rooms, extended-stay lodging, apartment units, condominiums, and assisted living facilities where individual room climate control is required. It functions as a self-contained cooling unit, eliminating the need for a central duct system. The 230 volt and 208 volt dual-voltage compatibility makes it adaptable to a range of building electrical configurations commonly found in older multi-family and commercial structures.

Key Features

• 14800 BTU/h cooling capacity at 230 volts; 14500 BTU/h at 208 volts
• EER of 10.7 at 230 volts and 10.8 at 208 volts
• R32 refrigerant — lower global warming potential than R410A
• Dual-voltage operation: 230 volts and 208 volts
• Indoor, through-the-wall unit type for single-room zoning
• 5-year parts warranty across residential, multi-family, and commercial registered applications

Compatibility

Designed as an OEM PTAC replacement or new-installation unit for through-the-wall sleeve applications compatible with standard PTAC wall sleeve dimensions. Verify sleeve size and electrical service before ordering.

Installation Notes

Installation must be performed by a licensed HVAC technician familiar with PTAC systems and local mechanical codes. Disconnect and lock out electrical power at the breaker before removing or installing the chassis. Confirm that the existing or new wall sleeve dimensions and electrical circuit ampacity match the unit specifications prior to installation. R32 is a mildly flammable refrigerant classified A2L — follow all applicable safety protocols and local regulations when handling or recovering this refrigerant.

Technical Specifications

• Cooling Capacity (230V): 14800 BTU/h
• Cooling Capacity (208V): 14500 BTU/h
• EER (230V): 10.7
• EER (208V): 10.8
• Voltage: 230 volts / 208 volts
• Refrigerant: R32
• Unit Type: Indoor
• Product Class: PTAC Air Conditioner
• Registered Parts Warranty (Residential): All parts - 5 years
• Registered Parts Warranty (Multi-Family): All parts - 5 years
• Registered Parts Warranty (Commercial): All parts - 5 years
• Country of Origin: Not USA produced

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: hec153j50axxx
