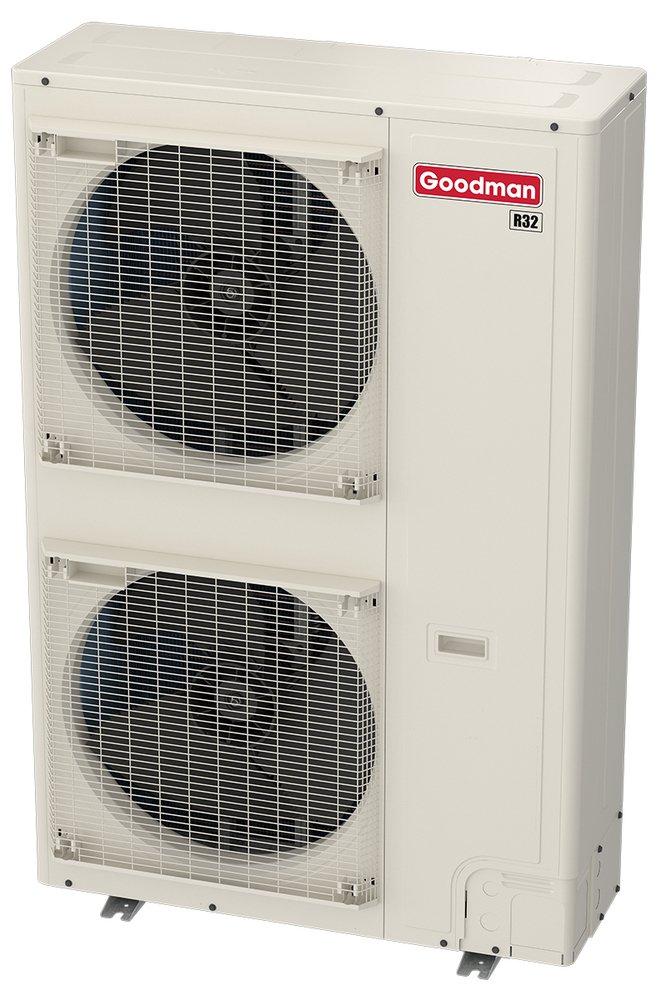

Goodman gxv9sa6010 Variable Speed Ac 5 Ton 19 SEER2 R-32

Product Description

The GOODMAN gxv9sa6010 is a 5-ton variable speed inverter-driven air conditioner rated up to 19.0 SEER2, designed for high-efficiency residential and light commercial cooling applications. It operates on R-32 refrigerant, an A2L-classified mildly flammable refrigerant that requires certified handling by licensed HVAC contractors. The unit features a communicating, inverter-driven compressor with variable speed operation, allowing it to modulate capacity across a SEER2 range of 15.2 to 40.0 depending on system configuration. The side-discharge cabinet design suits installations where overhead clearance is limited or site layout demands horizontal airflow away from the structure. Single-phase, 208/230-volt power supply is standard.

This condensing unit is intended for residential split-system cooling installations where a high-efficiency, communicating variable speed system is specified. The inverter-driven compressor reduces short-cycling, improves dehumidification, and delivers more consistent comfort across varying load conditions compared to single- or two-stage equipment. Installation is limited to licensed HVAC contractors qualified to handle A2L refrigerants. Product availability is region-specific and not for sale in California under current CEC regulations. Contractors should confirm local availability before specifying this unit on a job.

Key Features

• Variable speed inverter-driven compressor for continuous capacity modulation
• Up to 19.0 SEER2 efficiency rating with a system SEER2 range of 15.2 to 40.0
• R-32 refrigerant with A2L classification — requires certified contractor handling
• Communicating system architecture for integration with compatible air handlers and controls
• Side-discharge cabinet design for flexible installation orientations
• Single-phase 208/230-volt operation suits standard residential electrical service

Compatibility

Designed as a communicating variable speed split-system condensing unit. Compatible indoor equipment must support R-32 refrigerant and the communicating control protocol. Consult the equipment submittal documentation for approved matched indoor unit combinations. Not for sale in California.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate refrigerant handling certification for A2L refrigerants per EPA Section 608 requirements. Disconnect and lock out all electrical power before servicing the unit. R-32 is an A2L mildly flammable refrigerant — follow current ASHRAE 15 and local mechanical code requirements for leak detection, ventilation, and safe handling procedures. Do not mix refrigerants or use substitute refrigerants not approved for this equipment.

Technical Specifications

• Tonnage: 5 Ton
• SEER2: 19.0
• SEER2 Range: 15.2 - 40.0
• Compressor Type: Variable Speed Inverter Driven
• Compressor Stages: Variable Speed
• Refrigerant: R-32
• A2L Compatible: Yes
• Factory Standard Refrigerant Charge: 162 oz
• Voltage: 208/230V
• Phase: Single Phase
• Discharge Orientation: Side Discharge
• CEC Compliant: Not for Sale in CA

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: gxv9sa6010
