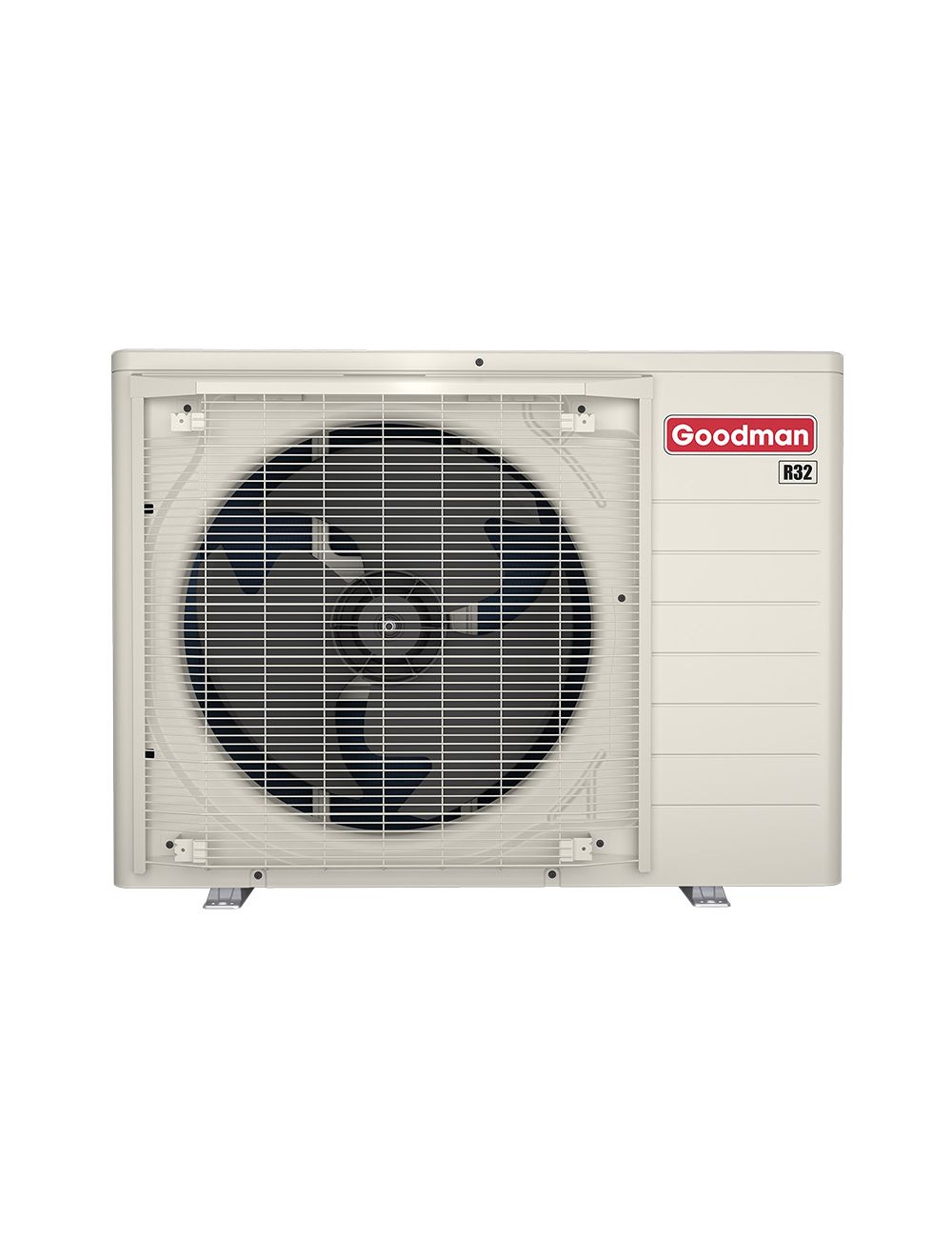

Goodman gxv9sa2410 Ac Condenser 2 Ton 19 SEER2 R32

Product Description

The GOODMAN gxv9sa2410 is a 2-ton variable-speed inverter air conditioning condenser rated up to 19.2 SEER2, designed for high-efficiency residential cooling applications. This unit uses R32 refrigerant and features a side-discharge configuration, making it well-suited for installations where airflow direction or clearance constraints require a non-top-discharge layout. The inverter-driven variable-speed compressor modulates capacity continuously to match load demand, reducing short-cycling and improving dehumidification. Licensed HVAC technicians handle installation, startup, and refrigerant handling in compliance with EPA Section 608 requirements.

The gxv9sa2410 is intended for residential split-system cooling installations paired with a compatible air handler or coil. The side-discharge design is particularly useful in space-constrained installations such as tight side yards or equipment pads where overhead clearance or neighbor proximity makes a top-discharge unit impractical. The variable-speed inverter operation supports zoned and communicating system architectures, delivering quiet, efficient, sustained cooling cycles rather than on-off cycling typical of single-stage equipment.

Key Features

• Up to 19.2 SEER2 efficiency rating for high-efficiency residential cooling
• Variable-speed inverter compressor for continuous capacity modulation and quiet operation
• Side-discharge airflow configuration for flexible installation placement
• R32 refrigerant with lower global warming potential compared to R410A
• 2-ton nominal cooling capacity suited for small to mid-size residential zones

Compatibility

Designed as an OEM-style residential split-system air conditioning condenser intended for use with a compatible matched indoor coil or air handler. Consult the Goodman product documentation for approved matched-system combinations to achieve rated SEER2 efficiency.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician. Shut off all power at the disconnect and breaker panel before making any electrical connections. R32 is an A2L mildly flammable refrigerant — follow all applicable local codes, ASHRAE 15, and manufacturer guidelines regarding refrigerant handling, leak detection, and ventilation requirements. Do not use with refrigerants other than R32.

Technical Specifications

• Equipment Type: Air Conditioning Condenser
• Cooling Capacity: 2 Ton Nominal
• Efficiency Rating: Up to 19.2 SEER2
• Refrigerant: R32
• Discharge Configuration: Side Discharge
• Compressor Type: Variable-Speed Inverter
• Weight: 149 pounds

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: gxv9sa2410
