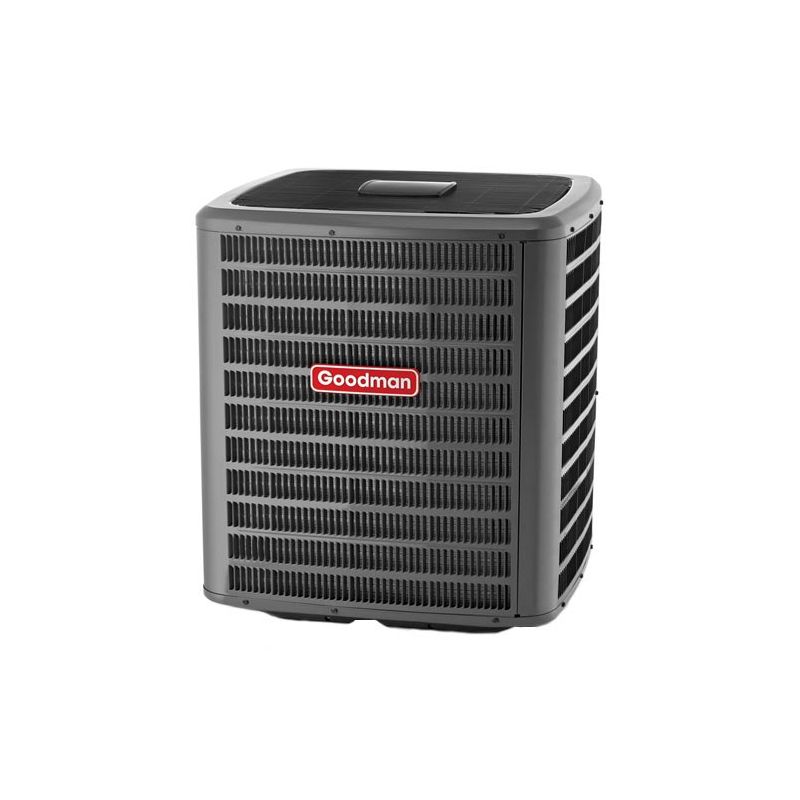

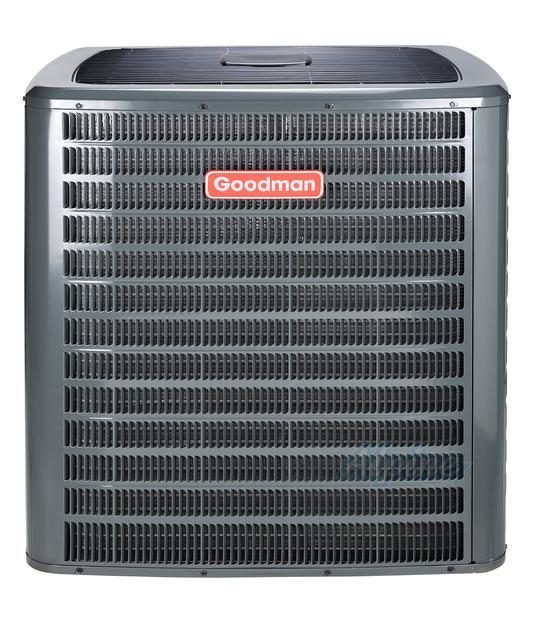

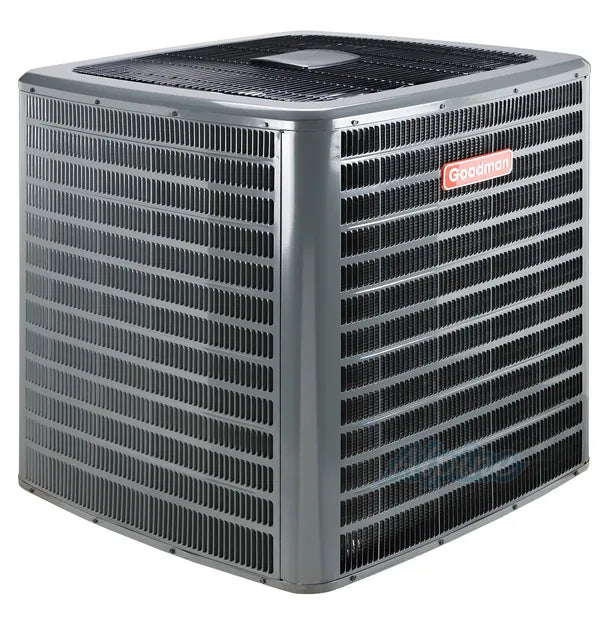

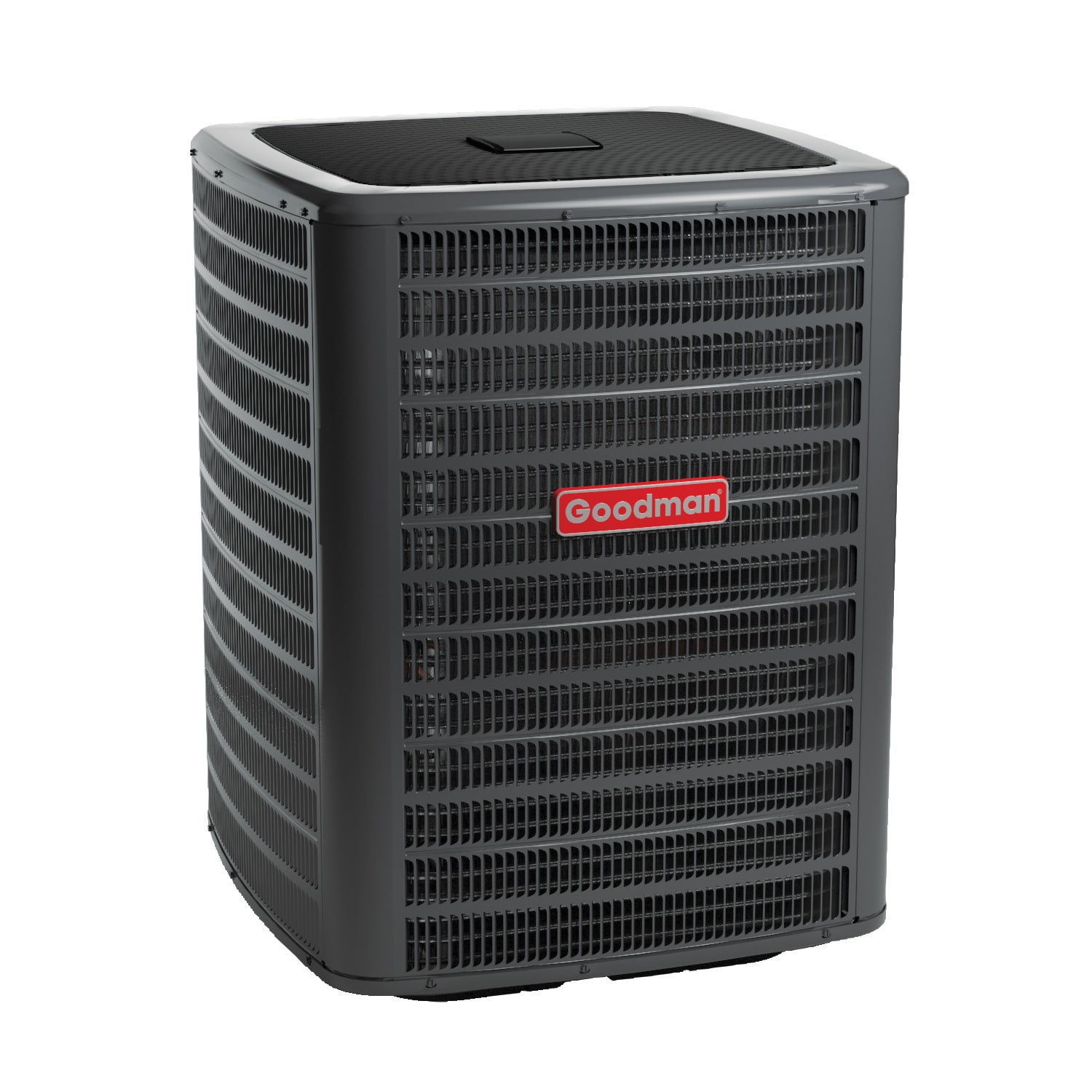

Goodman GSXC180361 split air conditioner 18 SEER, two stage 3 ton

Product Description

The Goodman GSXC180361 is a split air conditioner with 18 SEER efficiency and a two-stage compressor. This 3-ton unit is ComfortBridge Technology compatible. It features a high-efficiency two-stage scroll compressor and a two-speed ECM condenser fan motor. The unit is fully charged for fifteen feet of tubing length and AHRI certified and ETL listed.

• Features a high-efficiency two-stage scroll compressor.
• Equipped with a high-efficiency two-speed ECM condenser fan motor.
• ComfortBridge Communications System compatible.

Product Highlights

This Goodman split air conditioner offers efficient cooling with its two-stage compressor and compatibility with ComfortBridge technology.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GSXC180361
• Country of Origin: USA

Technical Specifications

• Family: GSXC18
• Tonnage: 3 tons
• Unit Type: Outdoor
• Unit Depth: 35-3/4 in
• Unit Width: 35-3/4 in
• Power Phase: 1 Ph
• Refrigerant: R-410A
• Unit Height: 40 in
• Max Voltage: 253 V
• Min. Circuit: 21.3 A
• Min. Voltage: 197 V
• Power Voltage: 208/230 V
• Compressor Type: Scroll
• Power Frequency: 60 Hz
• Model Efficiency: 18 SEER
• Motor Speed Type: Two-Speed ECM
• Compressor Stages: Two Stage
• Cooling Capacity Rated: 34000 Btu/H
• Airflow Rate Low Cooling: 790 ft³/min
• Airflow Rate High Cooling: 1050 ft³/min
• Liquid Valve Outside Diameter: 3/8 in
• Suction Valve Outside Diameter: 3/4 in
• Product Category: Unitary
• Product Class - (PIM): Split Air Conditioner
• System Family: Unitary Split System
• Function Category: Cooling Only
• Product Type: Equipment
• Market Type: Residential-Single Family
• Product Family: GSXC18
• Series Name: GSXC18
• Installation Type: Ducted
• Communication Feature: Yes
• Communication Feature Type: ComfortBridge Technology compatible
• DOE Regional Compliance: North;Southeast;Southwest
• Serialized Flag: Yes
• AHRI Reference Number: 201505458.0
• Cooling Capacity - (Nominal): 34000 Btu/H
• EER (HSVTC): 12.5
• ENERGY STAR® Certified: Yes
• SEER (HSVTC): 15.5
• Cooling Operation Range - (Std. Max): 125 °F
• Cooling Operation Range - (Std. Min): 55 °F
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Subcooling Temp at Service Valve: 6 °F
• Superheat Temp at Service Valve: 8 °F
• Compressor LRA: 84.2 A
• Compressor RLA: 14.8 A
• Control Voltage Conduit Size: 1/2 in;3/4 in
• Current Type: AC
• Max Overcurrent Protection: 35 A
• Outdoor Fan FLA: 2.8 A
• Air Flow Rate (High) - Cooling: 1050 ft³/min
• Air Flow Rate (Low) - Cooling: 790 ft³/min
• Compressor Sound Blanket: Yes
• Condenser Fan Blade Count: 3.0
• Condenser Fan Diameter: 26 in
• Condenser Fan RPM: 850 r/min
• Dimensions - (Unit Depth): 35-3/4 in
• Dimensions - (Unit Height): 40 in
• Dimensions - (Unit Width): 35-3/4 in
• Energy Source: Electric
• ETL Listed: Yes
• Expansion Device: TXV
• Sound Pressure (High) - Cooling: 71 dBA
• Sound Pressure (Low) - Cooling: 70 dBA
• Cooling Capacity - (Rated): 34000 Btu/H
• Cooling Capacity - (Sensible): 25800 Btu/H
• Cooling Input Power: 2.72 kW
• Sensible Heat Ratio - (S/T): 0.758
• Additional Refrigerant Charge - (oz/ft): 0.6
• Factory Std. Refrigerant Charge: 133 oz
• Indoor TXV Kit: TX3N4
• Long Line Set Length - (Equivalent): 150 ft
• Long Line Set Length - (Linear): 150 ft
• Pipe Size Gas: 7/8 in
• Pipe Size Liquid: 3/8 in
• Refrigerant Pre-Charged Line Length: 15 ft
• Standard Line Set Length - (Max): 80 ft
• Standard Line Set Length - (Vertical): 25 ft
• Valve Connection Type: Sweat
• Valve Size Liquid (O.D.): 3/8 in
• Valve Size Suction (O.D.): 3/4 in
• Proposition 65 Label: Yes
• Carton Type: CTN
• Case Qty: 1.0
• Cooling Capacity: 36,000 BTU
• Voltage: 208/230 V
• Phase: 1 Phase
• Frequency: 60 Hz
• SEER Rating: 18 SEER
• System: Split System
• Speed: 2-Speed
• Stages: Two-Stage
• Decibel Level (dBA): 71
• Electrical: 208 / 230 V. 1 Phase 60 Hz
• Valve Type: Sweat
• Cooling BTU: 35,000
• Energy Star: Yes
• Refrigerant Type: R-410A
• Brand/Manufacturer: Goodman
• Max Breaker Size: 35 amps
• Min. Breaker Size: 21.3 amps
• Liquid Valve Size: 3/8"
• Suction Valve Size: 3/4"
• Features High Pressure Safety Switch: Yes
• Features Low Pressure Safety Switch: Yes
• SEER2: 18
• SEER: 15.0 - 18.0
• EER: 12.2 - 13.5
• Primary Refrigerant: R-410A
• TXV Required: Yes
• Mobile Home Compatible: No
• RDS (Refrigerant Detection System) On-Board: No
• Low Output Cool: 24100 BTU
• High Output Cool: 36000 BTU
• Stages of Cool: Two
• Sound Rating: 75 Decibels
• Communication Wiring: Goodman 0130M00485
• Minimum Ampacity: 21.3 Amps
• Maximum Fuse/Breaker: 35 Amps
• Lineset Compatibility Code: L07-25 / L08-35 / L08-50
• Liquid Line Size (OD): 3/8 Inches
• Suction Line Size (OD): 3/4 Inches
• Width: 35 1/2 Inches
• Depth: 35 1/2 Inches
• Height: 38 1/4 Inches
• Pad Size: 36x36 Inches
• Cross-Brand Compatibility: R-410A Air Handler: No
• Cross-Brand Compatibility: R-32 Air Handler: No
• Cross-Brand Compatibility: R-454B Air Handler: No
• Cross-Brand Compatibility: R-410A Evaporator Coil: No
• Cross-Brand Compatibility: R-32 Evaporator Coil: No
• Cross-Brand Compatibility: R-454B Evaporator Coil: No
• Cross-Brand Compatibility: Modular Blower: No
• Cross-Brand Compatibility: Forced Air Furnace: No
• Noise Rating: 71dB
• Voltage Rating: 208/230VAC
• Operating Mode: Cool Only with Electric Heat
