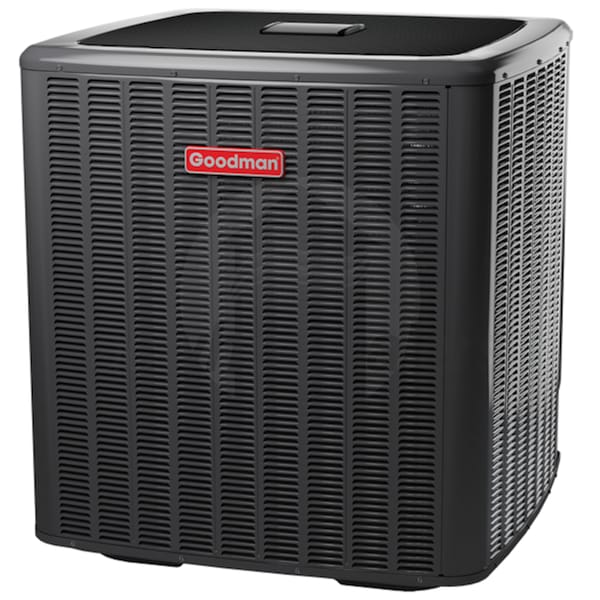

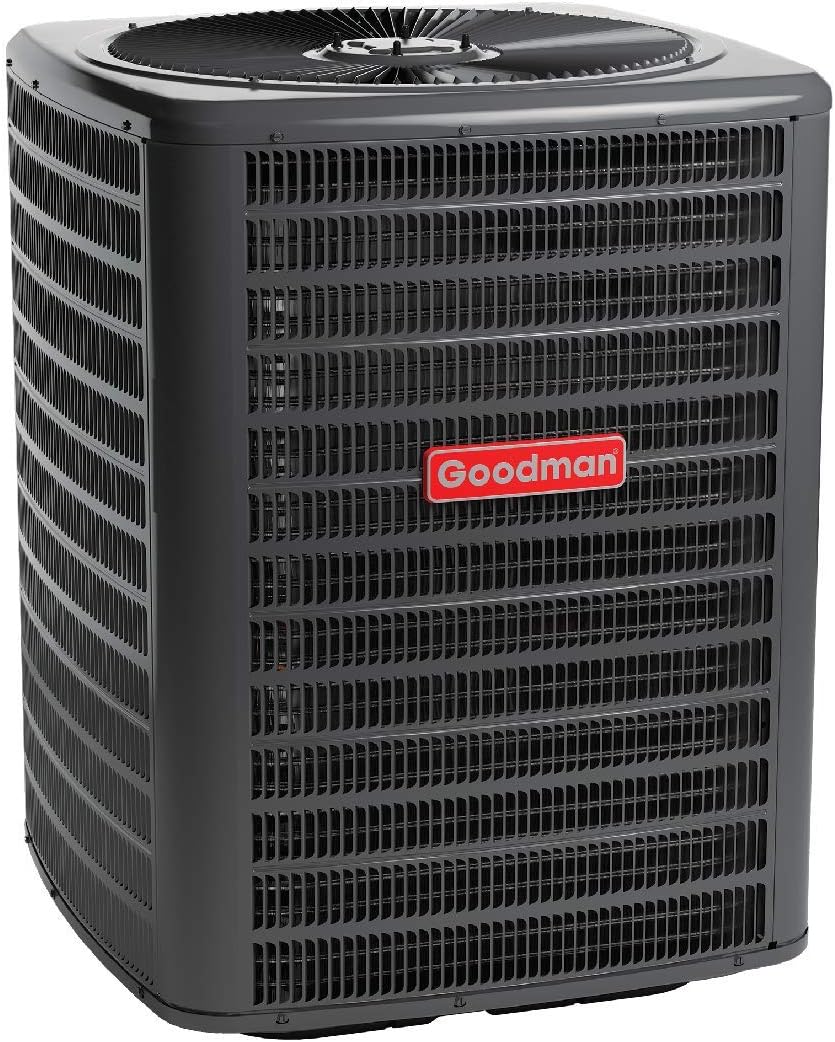

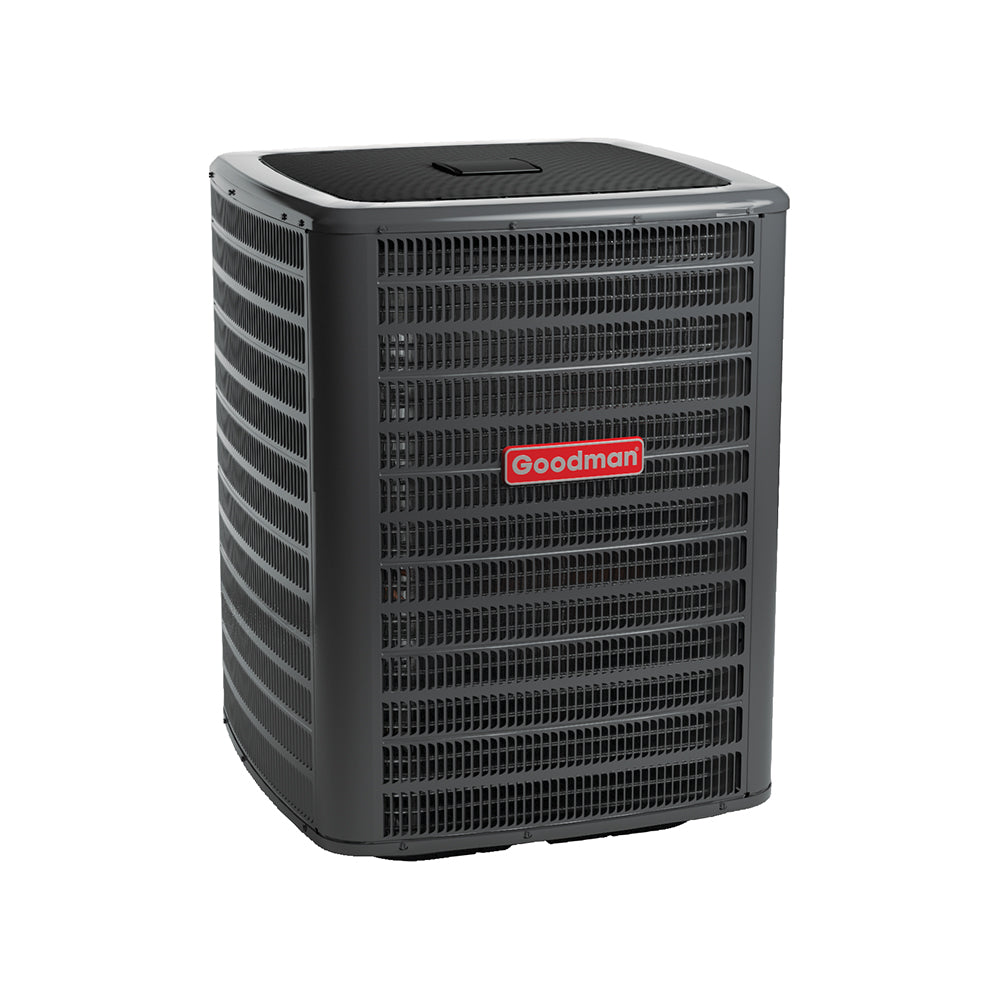

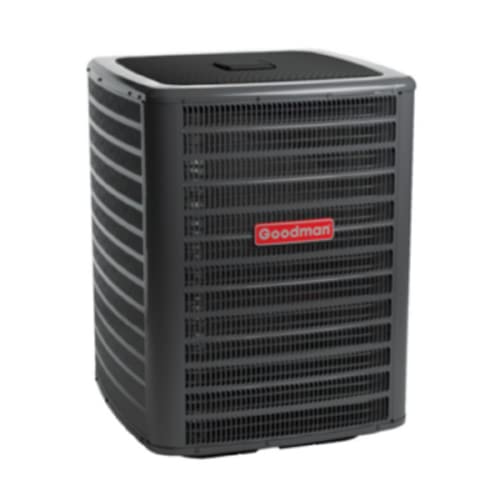

Goodman GSXC160361 Split Air Conditioner 16 SEER, Two Stage 3 Ton

Product Description

The Goodman GSXC160361 split air conditioner features 16 SEER and a two-stage compressor. Compatible with ComfortBridge Technology, this 3-ton unit is designed for outdoor installation. It features a high-efficiency two-stage scroll compressor and a two-speed PSC condenser fan motor. The unit is fully charged for fifteen feet of tubing length.

• High-efficiency two-stage scroll compressor

• Two-speed PSC condenser fan motor

• ComfortBridge Communications System compatible

• The unit can get ratings anywhere from 14 up to 17 SEER

Product Highlights

This Goodman GSXC160361 air conditioner provides efficient cooling with its two-stage compressor and compatibility with ComfortBridge technology.

Product Information

Standard Information

• Brand: GOODMAN

• Manufacturer Part Number: GSXC160361

• Country of Origin: United States

Technical Specifications

• Class: Split Air Conditioner

• Family: GSXC16

• Tonnage: 3 tons

• Category: Split Air Conditioner

• Keywords: GSXC160361

• Unit Type: Outdoor

• Unit Depth: 35-3/4 in

• Unit Width: 35-3/4 in

• Power Phase: 1 Ph

• Refrigerant: R-410A

• Unit Height: 36-1/2 in

• Max Voltage: 253 V

• Min. Circuit: 19.7 A

• Min. Voltage: 197 V

• Power Voltage: 208/230 V

• Compressor Type: Scroll

• Power Frequency: 60 Hz

• Cabinet Features: 1. Heavy-gauge galvanized steel cabinet and louvered coil guards 2. Service valves with sweat connections and easy-access gauge ports 3. Engineered sound control top design 4. Wire fan discharge grille 5. Baked-on powder-paint finish with 500-hour salt-spray approval 6. Single-panel access to controls with space for field-installed accessories 7. Service port and controls are accessible while unit is operating 8. Compact footprint 9. Rust-resistant screws 10. When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

• Model Efficiency: 16 SEER

• Motor Speed Type: Two-Speed PSC

• Compressor Stages: Two Stage

• Family Description: 16 SEER Two-Stage Condensers

• Product ID Bar Code: GSXC160361

• Prop65 Label Required: TRUE

• Cooling Capacity Rated: 34000 Btu/H

• Airflow Rate Low Cooling: 760 ft³/min

• Airflow Rate High Cooling: 1100 ft³/min

• Liquid Valve Outside Diameter: 3/8 in

• Suction Valve Outside Diameter: 3/4 in

• Voltage: 208/230 Volts

• Capacity: 3.0 Tons

• Cooling Power: 36000 British Thermal Units

• Special Feature: Air Purification Filter

• Number of Speeds: 2

• Installation Type: Split System

• Seasonal Energy Efficiency Ratio (SEER): 16

• Air Conditioner Phase: 1 Phase

• Motor Type: PSC

• Liquid Line Valve Connection: 3/8

• Suction Line Valve Connection: 3/4

• Model Number: GSXC160361

• Brand: Goodman

• Product Category: Air Conditioner & Coil Package

• System Family: Unitary Split System

• Function Category: Cooling Only

• Product Type: Equipment

• Market Type: Residential-Single Family

• Product Family: GSXC16

• Series Name: GSXC16

• Communication Feature: Yes

• Communication Feature Type: ComfortBridge Technology compatible

• DOE Regional Compliance: North;Southeast;Southwest

• Serialized Flag: Yes

• Item Stocking Unit of Measure (UOM): EA

• Pallet Qty: 1.0

• US HTS Code: 8415.90.8065

• Canadian HTS Code: 8415.90.90.00

• Cooling Capacity - (Nominal): 34000 Btu/H

• EER (HSVTC): 12.2

• ENERGY STAR® Certified: Yes

• Rated Cooling Condition - (Ambient DB): 95 °F

• Rated Cooling Condition - (Ambient WB): 75 °F

• Rated Cooling Condition - (Room DB): 80 °F

• Rated Cooling Condition - (Room WB): 67 °F

• Subcooling Temp at Service Valve: 6 °F

• Superheat Temp at Service Valve: 8 °F

• Compressor LRA: 84.2 A

• Compressor RLA: 14.8 A

• Control Voltage Conduit Size: 1/2 in;3/4 in

• Current Type: AC

• Max Overcurrent Protection: 30 A

• Outdoor Fan FLA: 1.2 A

• Air Flow Rate (High) - Cooling: 1100 ft³/min

• Air Flow Rate (Low) - Cooling: 760 ft³/min

• Compressor Sound Blanket: Yes

• Condenser Fan Blade Count: 3.0

• Condenser Fan Diameter: 26 in

• Condenser Fan RPM: 825 r/min

• Energy Source: Electric

• ETL Listed: Yes

• Expansion Device: TXV

• Sound Pressure (High) - Cooling: 71 dBA

• Sound Pressure (Low) - Cooling: 69 dBA

• Condenser Fan Horsepower: 1/6 metric hp

• Cooling Capacity - (Sensible): 26300 Btu/H

• Cooling Input Power: 2.79 kW

• Sensible Heat Ratio - (S/T): 0.719

• Additional Refrigerant Charge - (oz/ft): 0.6

• Factory Std. Refrigerant Charge: 114 oz

• Indoor TXV Kit: TX2N4A

• Long Line Set Length - (Equivalent): 150 ft

• Long Line Set Length - (Linear): 150 ft

• Pipe Size Gas: 7/8 in

• Pipe Size Liquid: 3/8 in

• Refrigerant Pre-Charged Line Length: 15 ft

• Refrigerant Type: R-410A

• Standard Line Set Length - (Max): 80 ft

• Standard Line Set Length - (Vertical): 25 ft

• Valve Connection Type: Sweat

• Valve Size Liquid (O.D.): 3/8 in

• Valve Size Suction (O.D.): 3/4 in

• Proposition 65 Label: Yes

• Carton Type: CTN

• Case Qty: 1.0

• Dimensions - (Case Depth): 37.00 in

• Dimensions - (Case Height): 38.50 in

• Dimensions - (Case Width): 37.00 in

• Dimensions - (Pallet Depth): 37.00 in

• Dimensions - (Pallet Height): 38.50 in

• Dimensions - (Pallet Width): 37.00 in

• Dimensions - (Shipping Unit Depth): 37.00 in

• Dimensions - (Shipping Unit Height): 38.50 in

• Dimensions - (Shipping Unit Width): 37.00 in

• Shipping Volume - (Unit): 52706.500 in³

• Truck Factor: 0.0

• Volume - (Case): 52706.500 in³

• Product Description - (E-Comm): Goodman Split Air Conditioner 16 SEER, Two Stage

• Short Description - (E-Comm): Goodman Split Air Conditioner 16 SEER, Two Stage, 3 Ton, ComfortBridge Technology compatible

• Long Description - (E-Comm): Goodman Split Air Conditioner 16 SEER, Two Stage, 3 Ton, ComfortBridge Technology compatible

• Release Status: Active

• Ecomm Path Display: Equipment/Residential Split System/Split Air Conditioner

• Operating Mode: Cooling

• Coil Width: 21 Inches

• Configuration: Upflow/Downflow

• Nominal Cooling Capacity: 36000 BTU

• Minimum Circuit Ampacity: 20 Amps

• Recommended Breaker Size: 30 Amps

• Suction Connection Size: 7/8 Inch

• Liquid Connection Size: 3/8 Inch

• Product Height: 36 1/2 Inches

• Product Width: 35 3/4 Inches

• Product Depth: 35 3/4 Inches

• Casing: Cased

• Style: A Coil

• Nominal Minimum Cooling Capacity: 42000 BTU

• Cabinet Width: 21 Inches

• Amperage Rating: 20 A

• Dimensions: 36-1/2 in H x 35-3/4 in W x 35-3/4 in D

• Finish: Galvanized/Powder-Coated

• Fuse Rating: 30 A

• Material: Steel

• Nominal Capacity: 3 ton

• Number of Stages: 2

• Phase: 1 ph

• Sound Level: 71 dB

• Additional Information: High-Efficiency

• Liquid Line Size: 3/8 in

• Series: GSXC16 Series

• Suction Line Size: 7/8 in
