Product Description

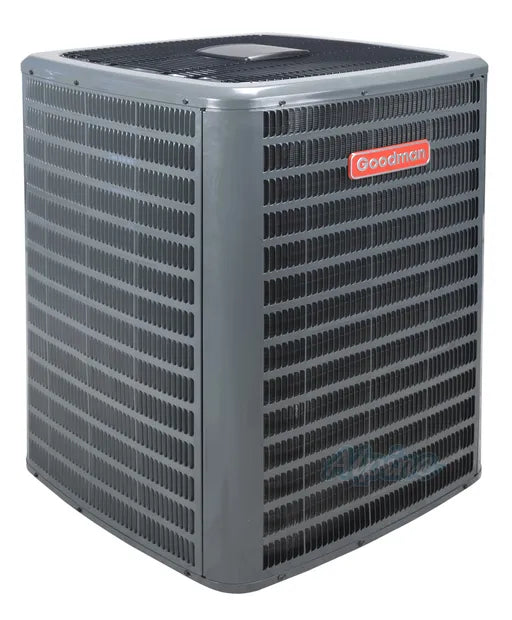

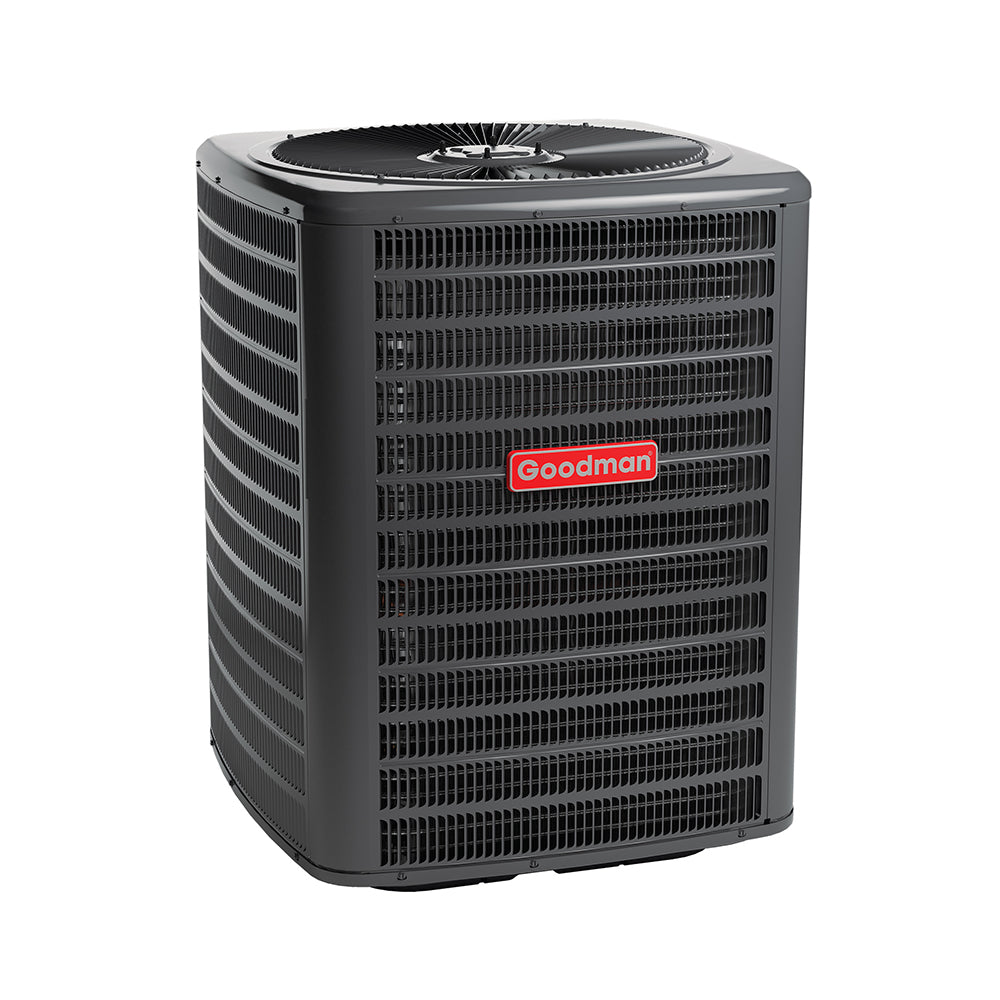

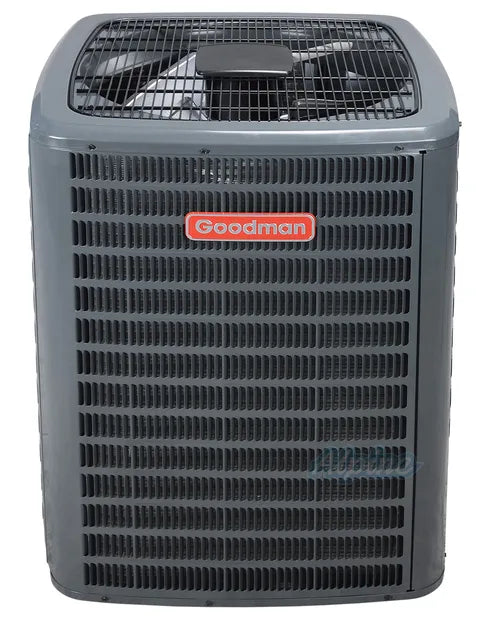

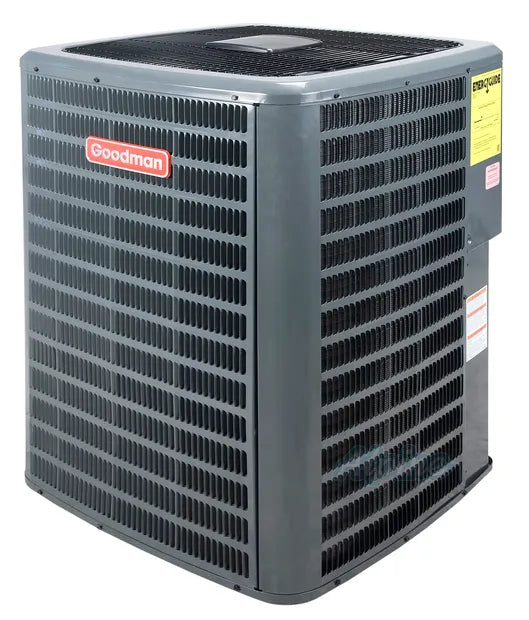

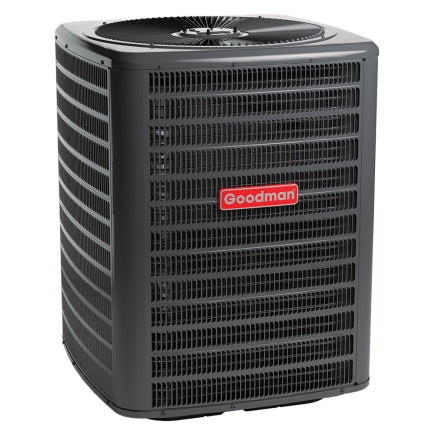

The Goodman GSX16S181 is a 1.5 Ton split air conditioner with a 16 SEER rating and single-stage compressor. This outdoor unit features a heavy-gauge galvanized steel cabinet with louvered coil guards and a baked-on powder-paint finish. It is fully charged with R-410A refrigerant for up to fifteen feet of tubing length.
- Features a high-efficiency compressor
- Equipped with a single-speed PSC condenser fan motor
- Includes a factory-installed filter drier
Product Highlights
The GSX16S181 offers efficient cooling and durable construction for residential applications. It is designed for easy installation and maintenance.
Product Information
Standard Information
-
Brand: GOODMAN
-
Manufacturer Part Number: GSX16S181
-
Country of Origin: USA
Technical Specifications
-
Class: Split Air Conditioner
-
Family: GSX16
-
Tonnage: 1.5 tons
-
Category: Split Air Conditioner
-
Unit Type: Outdoor
-
Unit Depth: 29.25 in
-
Unit Width: 29.25 in
-
Power Phase: 1 Ph
-
Refrigerant: R-410A
-
Unit Height: 32.5 in
-
Unit Weight: 145 lb
-
Max Voltage: 253 V
-
Min. Circuit: 8.5 A
-
Min. Voltage: 197 V
-
Power Voltage: 208/230 V
-
Compressor Type: Rotary
-
Power Frequency: 60 Hz
-
Model Efficiency: 16 SEER
-
Compressor Stages: Single Stage
-
Liquid Valve Outside Diameter: 3/8 in
-
Suction Valve Outside Diameter: 3/4 in
-
Cooling Capacity: 18000 Btu/hr
-
EER (HSVTC): 12.2
-
AHRI Reference Number: 202373189.0
-
Rated Cooling Condition - (Ambient DB): 95 °F
-
Rated Cooling Condition - (Ambient WB): 75 °F
-
Rated Cooling Condition - (Room DB): 80 °F
-
Rated Cooling Condition - (Room WB): 67 °F
-
Compressor LRA: 37.5 A
-
Compressor RLA: 6.0 A
-
Control Voltage Conduit Size: 1/2 in;3/4 in
-
Current Type: AC
-
Max Overcurrent Protection: 15 A
-
Outdoor Fan FLA: 0.95 A
-
Condenser Fan RPM: 810 r/min
-
Energy Source: Electric
-
Expansion Device: TXV;Orifice
-
Sound Pressure (High) - Cooling: 71 dBA
-
Additional Refrigerant Charge - (oz/ft): 0.6
-
Factory Std. Refrigerant Charge: 84 oz
-
Indoor TXV Kit: TXV-30
-
Long Line Set Length - (Equivalent): 150 ft
-
Long Line Set Length - (Linear): 150 ft
-
Pipe Size Gas: 3/4 in
-
Pipe Size Liquid: 3/8 in
-
Refrigerant Pre-Charged Line Length: 15 ft
-
Standard Line Set Length - (Max): 80 ft
-
Standard Line Set Length - (Vertical): 50 ft
-
Valve Connection Type: Sweat
-
Valve Size Liquid (O.D.): 3/8 in
-
Valve Size Suction (O.D.): 3/4 in
-
Vertical Length - (OD Above ID): 80 ft
-
Vertical Length - (OD Below ID): 80 ft
-
High Pressure Safety Switch: Yes
-
Low Pressure Safety Switch: No
-
SEER2: 15
-
EER: 11.5 - 13.0
-
TXV Required: No
-
Mobile Home Compatible: Yes
-
RDS (Refrigerant Detection System) On-Board: No
-
High Output Cool: 18000 BTU
-
Sound Rating: 71 Decibels
-
Frequency: 60 Hz
-
Voltage Phase: 1
-
Liquid Line Size (OD): 3/8 Inches
-
Suction Line Size (OD): 3/4 Inches
-
Width: 29 Inches
-
Depth: 29 Inches
-
Height: 32 1/4 Inches
-
Product Weight: 135 lbs
-
Pad Size: 30x30 Inches
-
Cross-Brand Compatibility: Modular Blower: Yes
-
Cross-Brand Compatibility: Forced Air Furnace: Yes
-
Approved for US Region(s): North
-
Amperage Rating: 20 A
-
HP Rating: 1/6 hp
-
Number of Stages: 1
-
SEER Rating: 16
-
Voltage Rating: 208-230 V
-
Series: GSX16 Series
-
Product Height (in): 32
-
Avg Coverage Area: 750 - 900 Sq Ft
-
Product Length (in): 29
-
Electrical Phase: 1-Phase
-
Line Set Connection Type: Sweat
-
Weight (lbs): 154.000000
-
Cooling Efficiency: 16 SEER
-
System Application Type: Central Split Systems
-
Voltage: 240
-
Region Compatibility: North, Southeast
