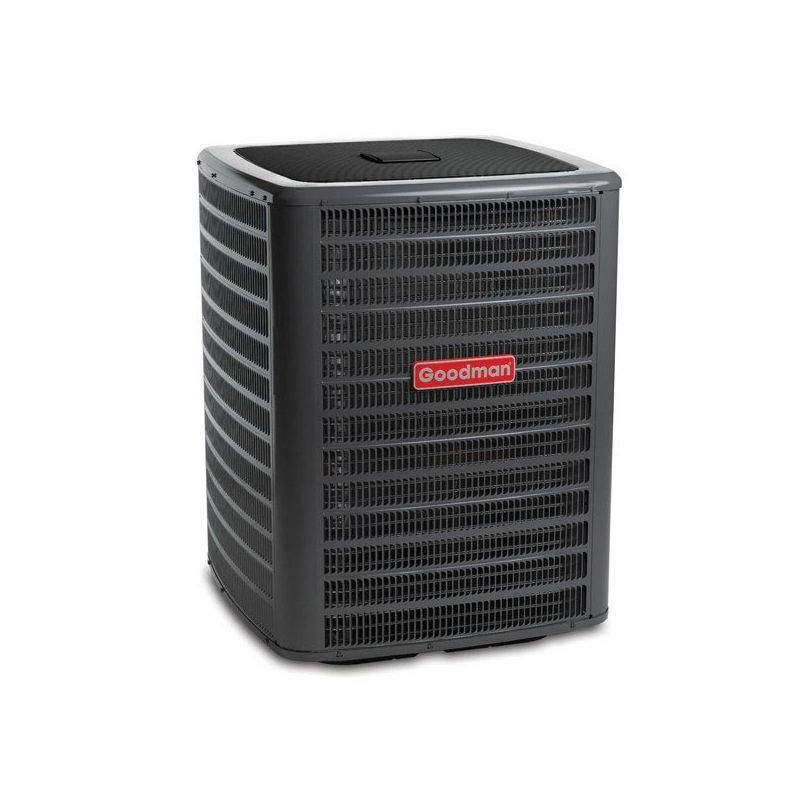

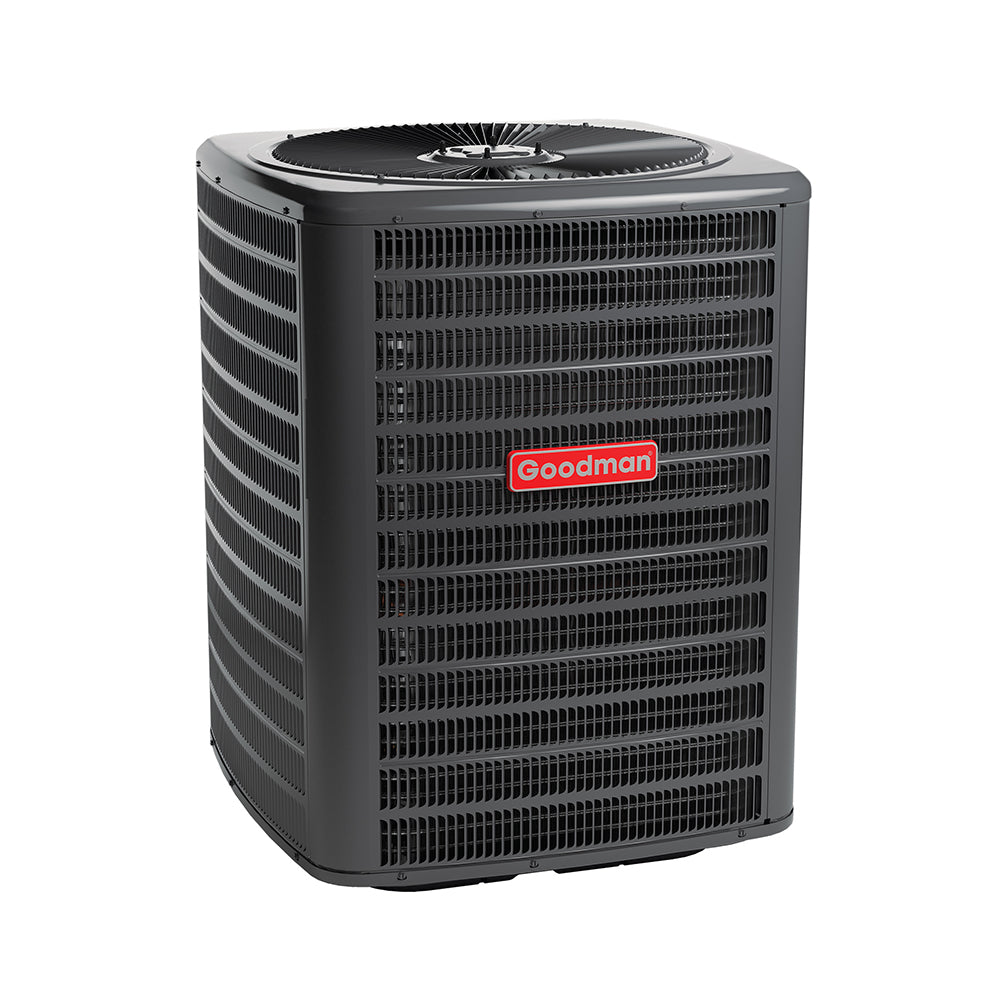

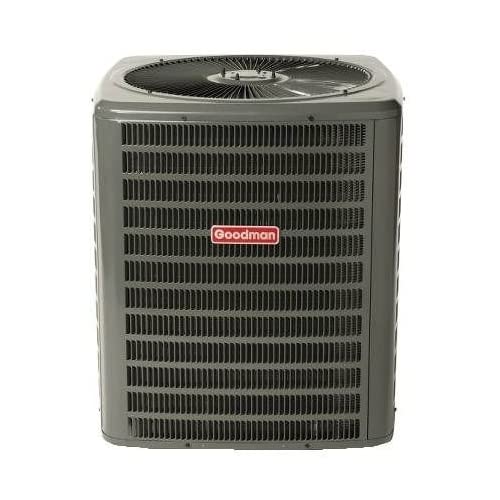

Goodman GSX140311 Split Air Conditioner 14 seer, single stage 2.5 ton

Product Description

The Goodman GSX140311 is a split air conditioner with 14 SEER and a single-stage compressor, with a capacity of 2.5 tons. It features an energy-efficient compressor designed to deliver indoor comfort. The unit is pre-charged for fifteen feet of tubing length. The heavy-gauge galvanized steel cabinet has louvered coil guards.

• Energy-efficient compressor
• Single-speed PSC condenser fan motor
• Factory-installed filter drier
• Fully charged for fifteen feet of tubing length

Product Highlights

This Goodman split air conditioner provides efficient cooling and is built with durable components for lasting performance. Ideal for residential use.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GSX140311
• Country of Origin: USA

Technical Specifications

• Class: Split Air Conditioner
• Family: GSX14
• Tonnage: 2.5 tons
• Category: Split Air Conditioner
• Keywords: GSX140311
• Unit Type: Outdoor
• Unit Depth: 29-1/4 in
• Unit Width: 29-1/4 in
• Power Phase: 1 Ph
• Refrigerant: R-410A
• Unit Height: 32-1/2 in
• Max Voltage: 253 V
• Min. Circuit Amps: 17.0 A
• Min. Voltage: 197 V
• Power Voltage: 208/230 V
• Compressor Type: Scroll
• Power Frequency: 60 Hz
• Model Efficiency: 14 SEER
• Motor Speed Type: Single Speed
• Compressor Stages: Single Stage
• Liquid Valve Outside Diameter: 3/8"
• Suction Valve Outside Diameter: 3/4"
• Cooling Power: 30000 British Thermal Units
• Seasonal Energy Efficiency Ratio (SEER): 14
• Cooling Capacity - (Nominal): 28600 Btu/H
• EER (HSVTC): 12.2
• ENERGY STAR® Certified: No
• SEER (HSVTC): 14.0
• Installation Type: Ducted
• Communication Feature: No
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Compressor LRA: 67.8 A
• Compressor RLA: 12.8 A
• Indoor Blower FLA: 0.95 A
• Outdoor Fan FLA: 0.95 A
• Max Overcurrent Protection: 25 A
• Sound Pressure (High) - Cooling: 72 dBA
• Sound Pressure (Super High) - Cooling: 72 dBA
• Nominal Capacity: 2.5 t
• Cooling SEER: 14
• BtuH Cooling: 30 000
• Liquid Line Size: 3/8 In.
• Suction Line Size: 3/4 In.
• Precharged With: R-410A
• Air Conditioner Phase: 1 Phase
• Voltage: 230 Volts
• Line Set Connection Type: Sweat
• Region Compatibility: North
