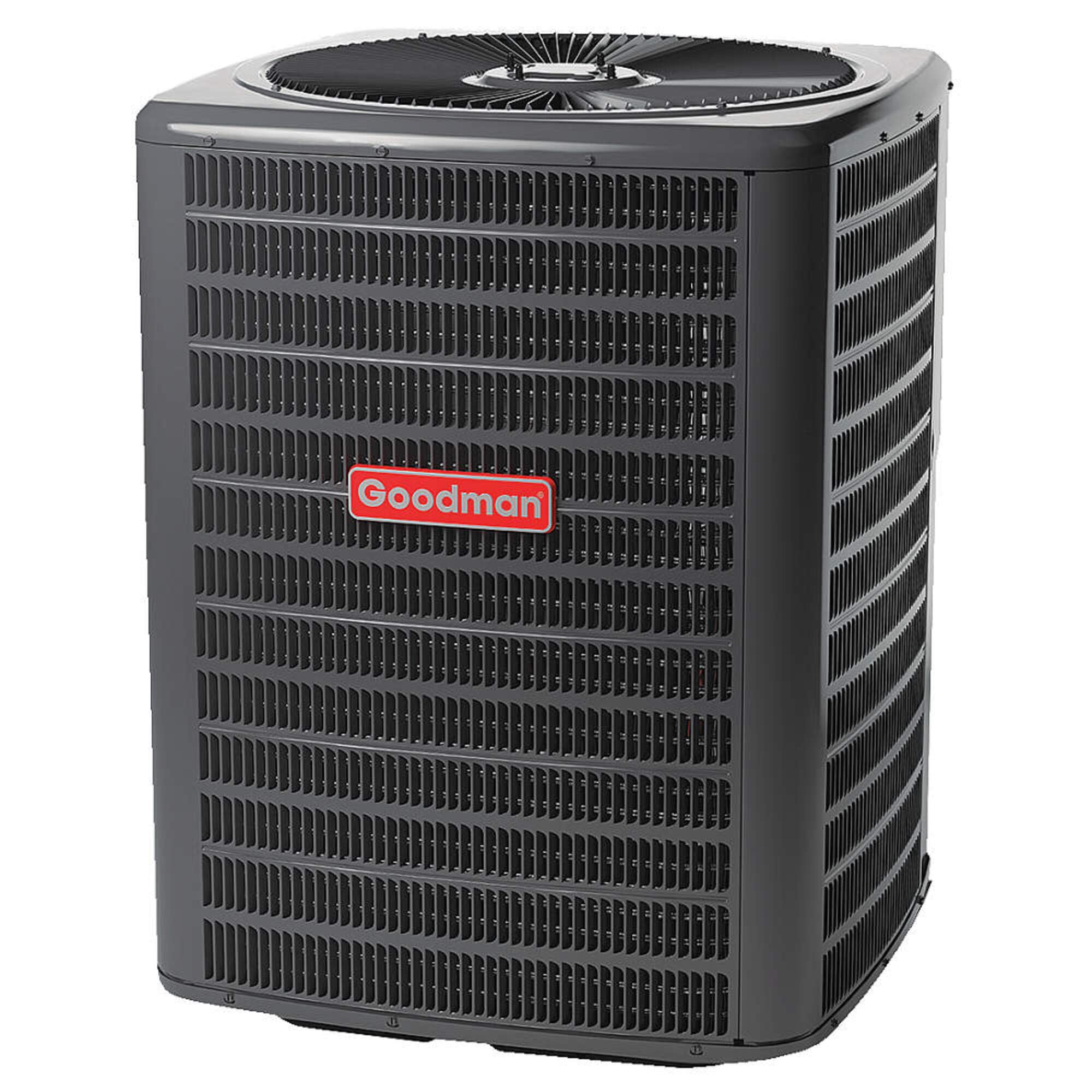

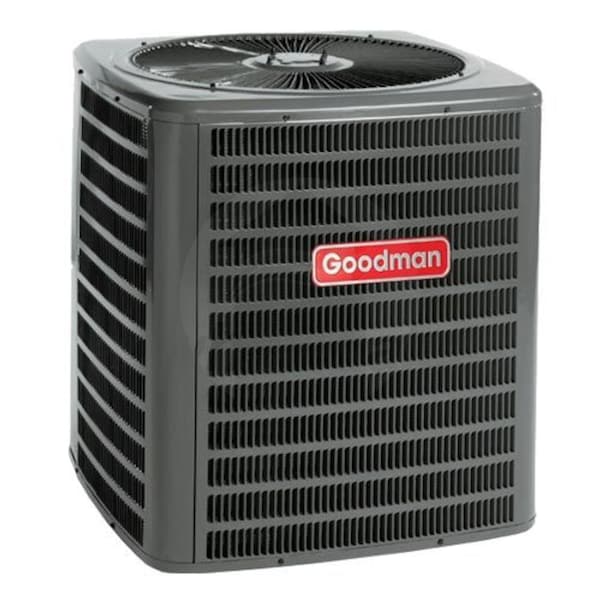

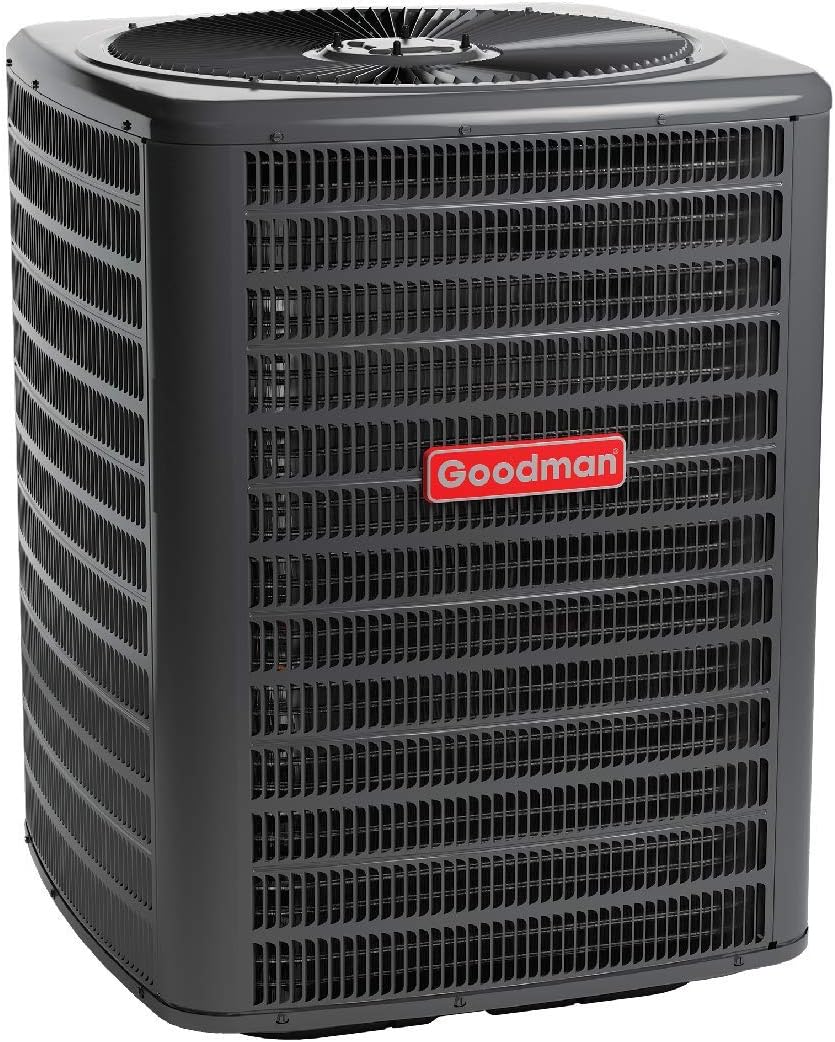

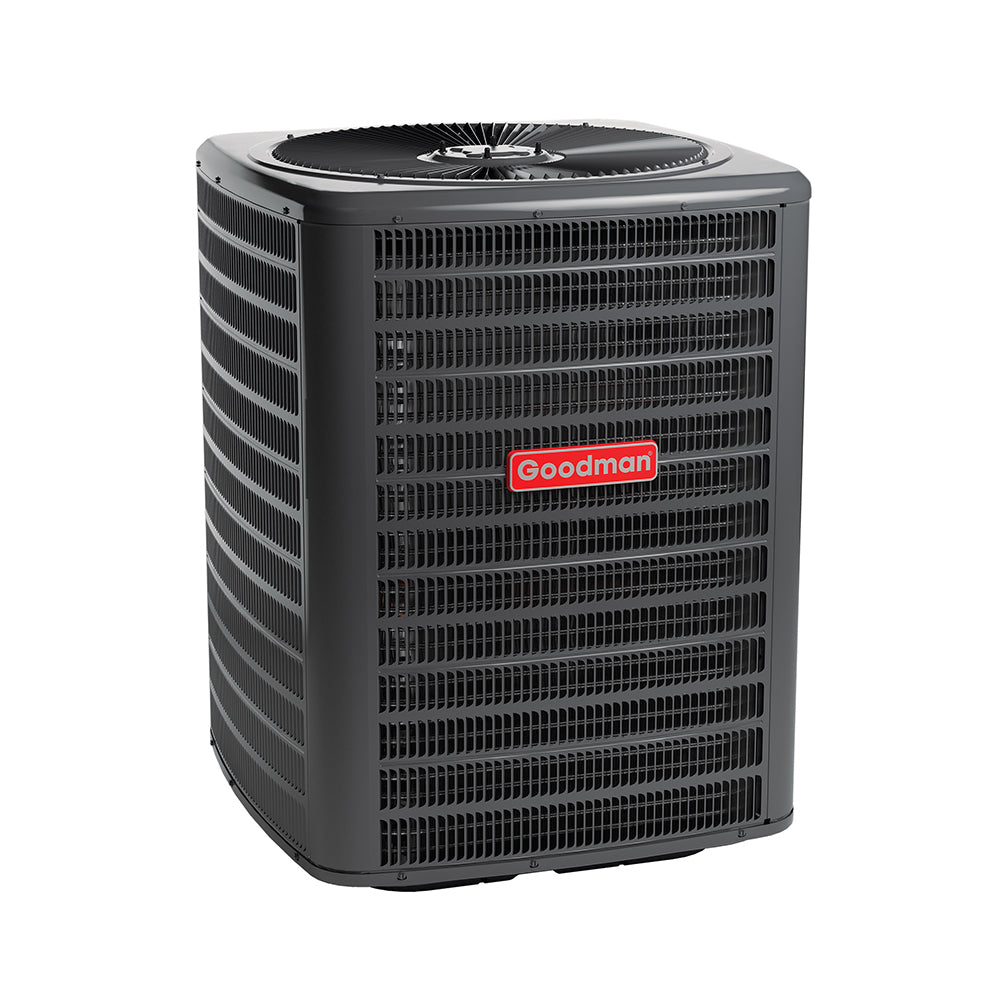

Goodman GSX140191 split air conditioner 14 SEER, single stage 1.5 ton

Product Description

The Goodman GSX140191 split air conditioner features 14 SEER and a single-stage compressor. This 1.5-ton unit is designed for outdoor installation. It includes a heavy-gauge galvanized steel cabinet with louvered coil guards and service valves with sweat connections. The unit is pre-charged for 15 feet of tubing length.

• Energy-efficient compressor
• Single-speed PSC condenser fan motor
• Factory-installed filter drier
• Fully charged for fifteen feet of tubing length

Product Highlights

The Goodman GSX140191 provides efficient cooling with features like a single-speed motor and a durable, compact design.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GSX140191
• Country of Origin: USA

Technical Specifications

• Class: Split Air Conditioner
• Family: GSX14
• Tonnage: 1.5 tons
• Category: Split Air Conditioner
• Unit Type: Outdoor
• Unit Depth: 26-1/4 in
• Unit Width: 26-1/4 in
• Power Phase: 1 Ph
• Refrigerant Type: R-410A
• Unit Height: 27-1/2 in
• Max. Voltage: 253 V
• Min. Circuit: 12.0 A
• Min. Voltage: 197 V
• Power Voltage: 208/230 V
• Compressor Type: Scroll
• Power Frequency: 60 Hz
• Model Efficiency: 14 SEER
• Motor Speed Type: Single Speed
• Compressor Stages: Single Stage
• Liquid Valve Outside Diameter: 3/8 in
• Suction Valve Outside Diameter: 3/4 in
• EER: 12.2
• SEER (HSVTC): 14.5
• Cooling Capacity: 18000 Btu/H
• Frequency: 60 Hz
• AHRI Certified: Yes
• ETL Listed: Yes
• Maximum Sound Level: 71 dBA
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Minimum Circuit Ampacity: 12.0 A
• Recommended Breaker Size: 20 A
• Installation Location: Outdoor
• Operating Mode: Cooling
• Condenser Fan RPM: 840 r/min
• Sound Pressure (High) - Cooling: 71 dBA
• Sound Pressure (Super High) - Cooling: 71 dBA
• Valve Size Liquid (O.D.): 3/8 in
• Valve Size Suction (O.D.): 3/4 in
• Compressor LRA: 47.5 A
• Compressor RLA: 9.0 A
• Indoor Blower FLA: 0.7 A
• Outdoor Fan FLA: 0.7 A
• Max Overcurrent Protection: 20 A
• Refrigerant Pre-Charged Line Length: 15 ft
• Long Line Set Length - (Equivalent): 250 ft
• Long Line Set Length - (Linear): 200 ft
• Standard Line Set Length - (Max): 80 ft
• Standard Line Set Length - (Vertical): 50 ft
• Vertical Length - (OD Above ID): 80 ft
• Vertical Length - (OD Below ID): 80 ft
• Indoor Orifice Size: 0.051 in
