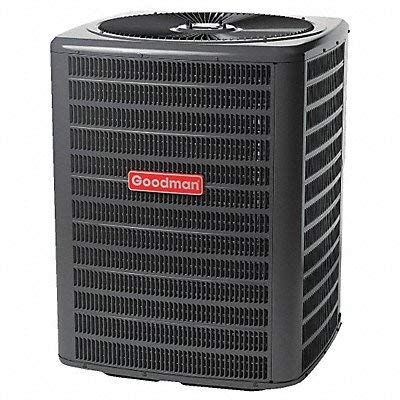

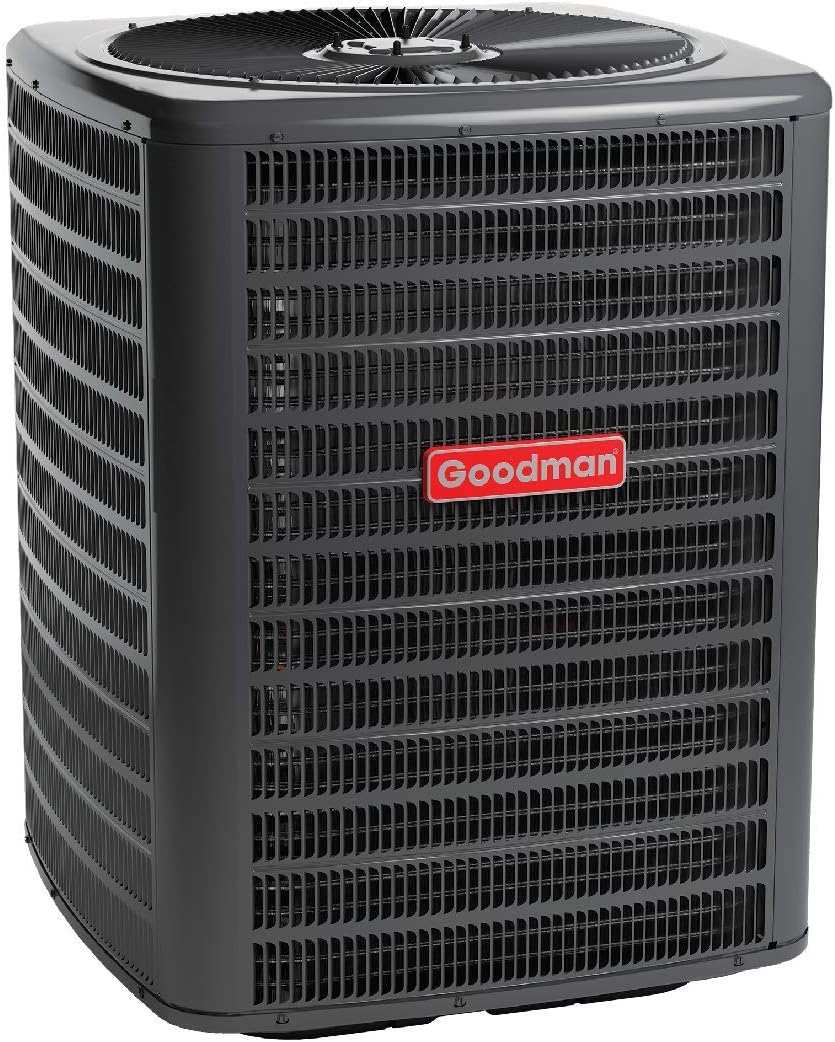

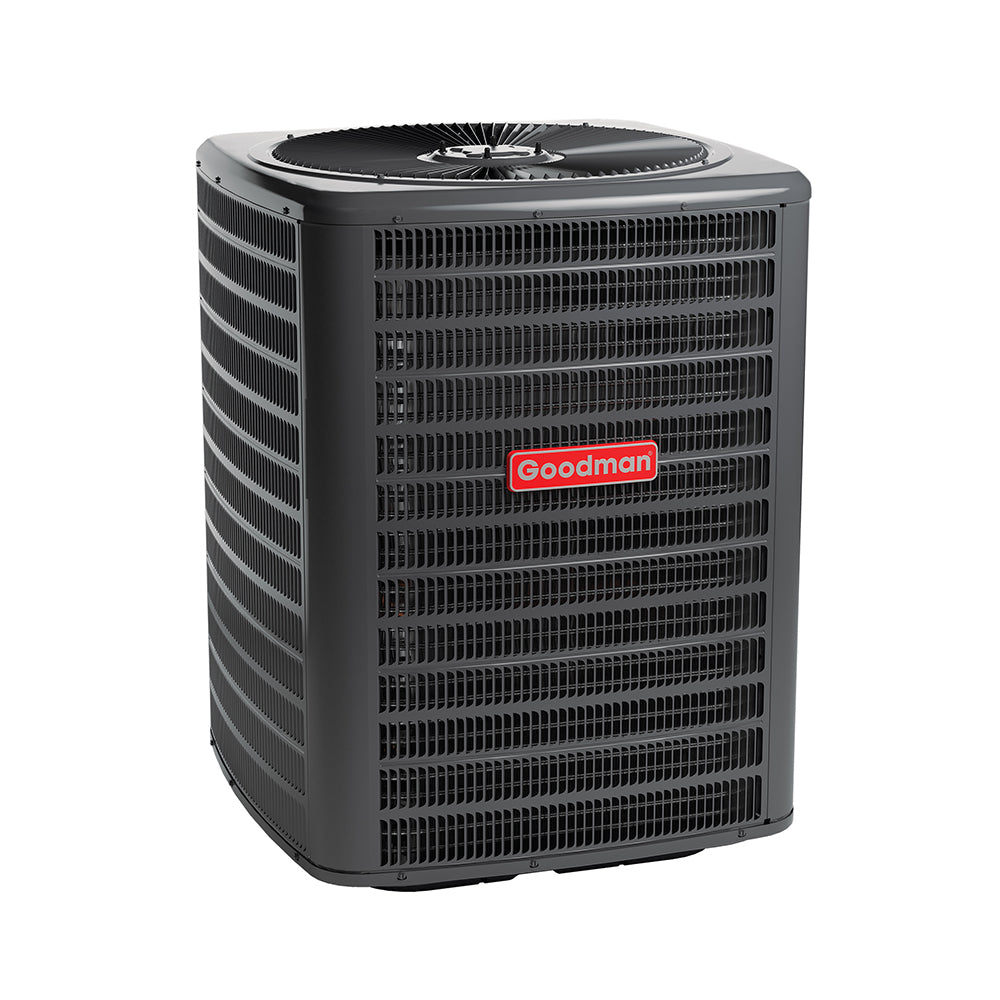

Goodman GSX140181 Air Conditioner 1.5 Ton 14 SEER

Product Description

The Goodman GSX140181 is a split air conditioner with 14 SEER, single stage, and 1.5 ton capacity. It features an energy-efficient compressor designed to deliver indoor comfort and potentially save on energy costs. The unit is fully charged with refrigerant for up to 15 feet of tubing length.

• Features an energy-efficient compressor
• Equipped with a single-speed PSC condenser fan motor
• Includes a factory-installed filter drier

Product Highlights

This Goodman air conditioner provides efficient cooling with key features for performance and easy installation.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GSX140181
• Country of Origin: USA

Technical Specifications

• Brand: Goodman
• MPN: GSX140181
• Class: Split Air Conditioner
• Family: GSX14
• Tonnage: 1.5 tons
• Category: Split Air Conditioner
• Unit Type: Outdoor
• Unit Depth: 23-1/4 in
• Unit Width: 23-1/4 in
• Power Phase: 1 Ph
• Refrigerant: R-410A
• Unit Height: 25-3/4 in
• Max Voltage: 253 V
• Min. Circuit Amps: 8.2 A
• Min. Voltage: 197 V
• Power Voltage: 208/230 V
• Compressor Type: Rotary
• Power Frequency: 60 Hz
• Model Efficiency: 14 SEER
• Motor Speed Type: Single Speed
• Compressor Stages: Single Stage
• Cooling Capacity Rated: 18000 Btu/H
• Airflow Rate High Cooling: 650 ft³/min
• Liquid Valve Outside Diameter: 3/8 in
• Suction Valve Outside Diameter: 3/4 in
• Voltage: 208/230
• Cooling Power: 18000 British Thermal Units
• Number of Speeds: 1
• Seasonal Energy Efficiency Ratio (SEER): 14.0
• EER (HSVTC): 11.5
• Installation Type: Ducted
• Communication Feature: No
• DOE Regional Compliance: North;Southeast
• AHRI Reference Number: 202517492.0
• ENERGY STAR® Certified: No
• Cooling Operation Range - (Std. Max): 125 °F
• Cooling Operation Range - (Std. Min): 55 °F
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Subcooling Temp at Service Valve: 6-8 °F
• Superheat Temp at Service Valve: 6-8 °F
• Compressor LRA: 37.5 A
• Compressor RLA: 6 A
• Control Voltage Conduit Size: 1/2 in;3/4 in
• Current Type: AC
• Indoor Blower FLA: 0.7 A
• Max Overcurrent Protection: 15 A
• Outdoor Fan FLA: 0.7 A
• Power Supply Conduit Size: 1/2 in;3/4 in
• Condenser Fan Blade Count: 3.0
• Condenser Fan Diameter: 18.13 in
• Condenser Fan RPM: 840 r/min
• ETL Listed: Yes
• Expansion Device: Orifice;TXV
• Sound Pressure (High) - Cooling: 75 dBA
• Sound Pressure (Low) - Cooling: N/A dBA
• Cooling Capacity - (Sensible): 13600 Btu/H
• Sensible Heat Ratio - (S/T): 0.757
• Additional Refrigerant Charge - (oz/ft): 0.6
• Factory Std. Refrigerant Charge: 68 oz
• Indoor TXV Kit: TX2N4A
• Long Line Set Length - (Equivalent): 150 ft
• Long Line Set Length - (Linear): 150 ft
• Pipe Size Liquid: 3/8 in
• Refrigerant Pre-Charged Line Length: 15 ft
• Standard Line Set Length - (Max): 80 ft
• Standard Line Set Length - (Vertical): 50 ft
• Valve Size Liquid (O.D.): 3/8 in
• Valve Size Suction (O.D.): 3/4 in
• Proposition 65 Label: Yes
• Dimensions - (Unit Depth): 23-1/4 in
• Dimensions - (Unit Height): 25-3/4 in
• Dimensions - (Unit Width): 23-1/4 in
• Coolant: R-410a
• Phase: 1
• Motor: Single Speed
• Liquid Line Valve Connection: 3/8
• Suction Line Valve Connection: 3/4
• Decibel Level (dB): 71
• Blower: Multi-Speed
• Maximum CFM: 1,255
• Suction Valve Size (Inches): 3/4
• Liquid Valve Size (Inches): 3/8
