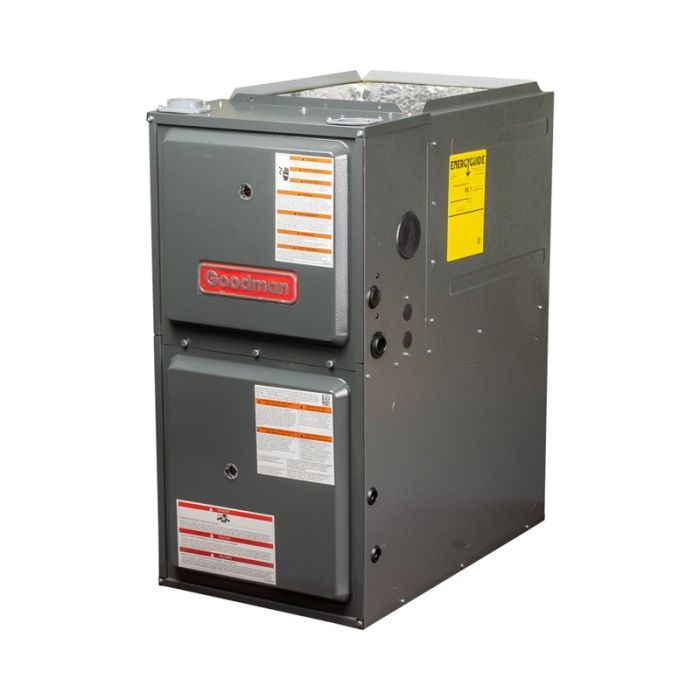

Goodman GR9S960803BN Gas Furnace Nine Speed ECM, Single Stage 80000 Btu

Product Description

The Goodman GR9S960803BN is a 96% AFUE gas furnace with a nine-speed ECM and a single-stage valve. This upflow/horizontal furnace has a high-fire input capacity of 80000 BTU and a high-fire output capacity of 76880 BTU. It operates at 115 V and 60 Hz.

• Features a heavy-duty aluminized-steel tubular heat exchanger.
• Includes a stainless-steel sloped secondary heat exchanger.
• Equipped with a multi-speed ECM blower motor with continuous fan speed.

Product Highlights

The Goodman GR9S960803BN gas furnace provides efficient heating with its multi-speed ECM motor and durable heat exchangers. It is designed for easy installation and maintenance, featuring self-diagnostic controls and provisions for air cleaners and humidifiers.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GR9S960803BN
• Country of Origin: USA

Technical Specifications

• AFUE: 96
• Class: Gas Furnace
• Family: GR9S96
• Category: Gas Furnace
• Keywords: GR9S960803BN
• Unit Type: Indoor
• Unit Depth: 28 in
• Unit Width: 17-1/2 in
• Power Phase: 1
• Unit Height: 33-3/8 in
• Min. Circuit: 10.1 A
• Power Voltage: 115 V
• Power Frequency: 60 Hz
• Model Efficiency: 0.96
• Motor Speed Type: Nine Speed ECM
• Prop65 Label Required: TRUE
• High-Fire Input Capacity: 80000 Btu
• Airflow Rate High Heating: 1200 ft³/min
• High-Fire Output Capacity: 76880 Btu/hr
• Family Description: Single-Stage Multi-Speed ECM Gas Furnace Up to 96% AFUE
• Product Category: Unitary
• Product Class - (PIM): Gas Furnace
• System Family: Unitary Split System
• Function Category: Heating Only
• Product Type: Equipment
• Market Type: Residential-Single Family
• Installation Type: Ducted
• Temperature Rise Range High Fire: 35-65 °F
• Max Overcurrent Protection: 15 A
• Installation Configuration: Upflow/Horizontal
• Produced in US: Yes
• Product ID: GR9S960803BN
• ETL Listed: Yes
• Gas Valve Type: Single Stage
• Vent Diameter: 4 in
• Proposition 65 Label: Yes
• Voltage Rating: 115 V
• Amperage Rating: 10.1 A
• CFM Rating: 1200 cfm
• HP Rating: 1/2 hp
• Input BTU Rating: 80000 Btu/hr
• Rotational Speed: 1075 rpm
• Frequency Rating: 60 Hz
• Phase: 1 ph
• Number of Stages: 1
• Connection Type: FPT
• Fuse Rating: 15 A
• Motor Type: ECM
• Material: Steel
• Domestic/Import: Domestic
