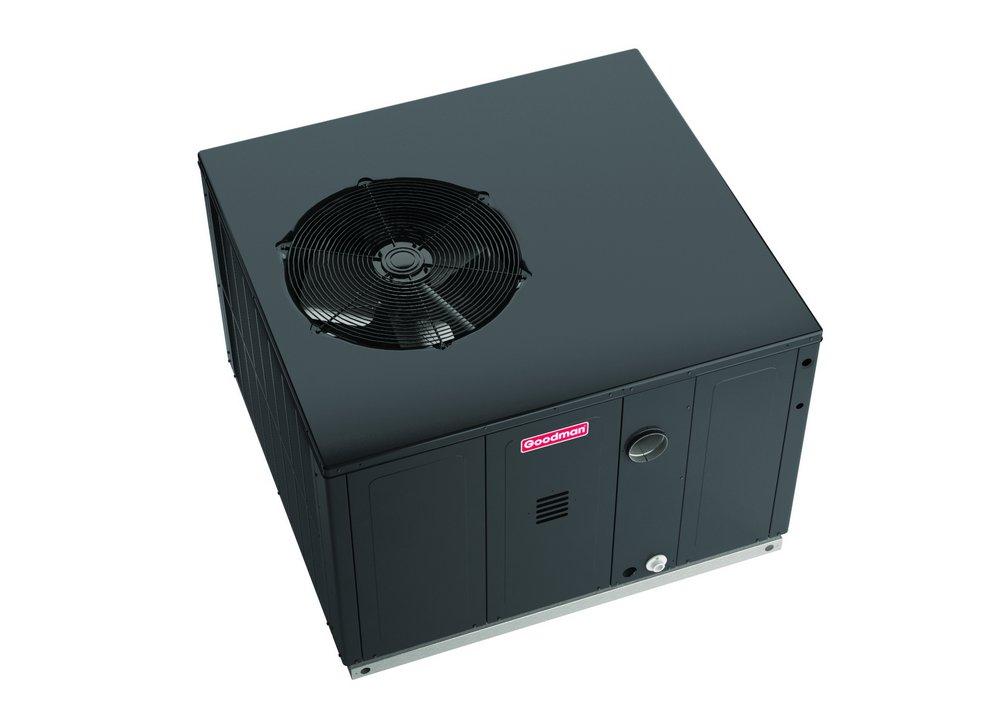

Goodman GPUM33606041 Packaged Gas/Electric Central Air System 3 Ton 60,000 BTU 13.4 SEER2 208/230V

Product Description

The Goodman GPUM33606041 is a packaged gas/electric central air system designed for residential use. Combining a gas-fired furnace, air conditioning condenser, evaporator coil, and multi-speed ECM blower into a single unit, it provides efficient heating and cooling solutions. This unit is designed for both downflow and horizontal airflow and is built to meet California's ultra-low NOx emissions standards.

• 3.0 Ton cooling capacity
• 60,000 BTU heating capacity
• 13.4 SEER2 and 81% AFUE

Product Highlights

Combining heating and cooling functions into one unit, this Goodman GPUM3 system efficiently manages household comfort. It features a heavy-duty stainless-steel heat exchanger, an energy-efficient scroll compressor, and multi-speed ECM blower motor. Designed with an advanced coil system, it maximizes energy efficiency while offering robust performance.

Product Information

Standard Information

• Brand: Goodman
• MPN: GPUM33606041

Technical Specifications

• Cooling Capacity: 3.0 Tons
• Heating Capacity: 60,000 BTU/hr
• SEER2: 13.4
• AFUE: 81%
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Dimensions (Depth): 51 Inches
• Dimensions (Width): 47 Inches
• Dimensions (Height): 34.5 Inches
• Weight: 415 Pounds
• Blower Motor Type: Multi-Speed ECM
• Compressor Stages: Single Stage
• Operating Mode: Heating and Cooling
• Fuel Type: Natural Gas
• Refrigerant Type: R-410A
• Maximum Air Flow: 1225 CFM
• Minimum Air Flow: 960 CFM
• Sound Level: 78 dB
• Minimum Circuit Ampacity: 22.8 Amps
• Recommended Breaker Size: 35 Amps
• Parts Warranty: 10 Limited Years
• Compressor Warranty: Limited 10 Years
• Heat Exchanger Warranty: 20 Limited Years
• Installation Location: Outdoor
• DOE Compliance: Nationwide
• AHRI Reference Number: 209319526
• Certifications: ETL Listed, ISO Certified, AHRI Certified
• Product Category: Packaged HVAC Unit
