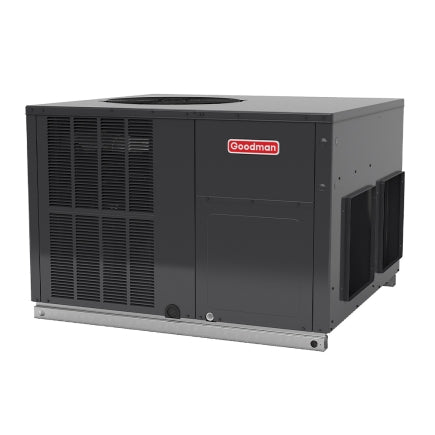

Goodman GPHM56031 Packaged Heat Pump 15.2 SEER2, Two Stage, Downflow/Horizontal, 5 Ton

Product Description

The Goodman GPHM56031 is a 5 ton, downflow/horizontal packaged heat pump with two-stage cooling and a multi-speed ECM. This unit meets the 2023 M1 Test Standards and features an energy-efficient compressor with internal relief valve. It is designed for residential-single family use and provides both heating and cooling functions.

• Features a two-stage heating and cooling system.
• Equipped with a multi-speed EEM indoor blower motor.
• Includes a liquid-line filter drier and copper tube/aluminum fin condenser coils.

Product Highlights

This Goodman packaged heat pump offers efficient and reliable performance for residential applications, with a focus on energy savings and durability.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GPHM56031

Technical Specifications

• Brand: Goodman
• MPN: GPHM56031
• Product Category: Unitary
• Product Class - (PIM): Packaged Heat Pump
• System Family: Unitary Packaged System
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Residential-Single Family
• Product Family: GPHM5_32
• Series Name: GPHM5
• Model Efficiency: 15.2 SEER2
• Installation Type: Ducted Multi-position
• Communication Feature: No
• Cooling Capacity - (Nominal): 60000 Btu/H
• COP17 (HSVTC): 2.5
• COP47 (HSVTC): 3.8
• EER (HSVTC): 11.6
• EER2 (HSVTC): 11.6
• ENERGY STAR� Certified: No
• Heating Capacity - (Nominal): 59000 Btu/H
• HSPF (HSVTC): 7.7
• HSPF 2 (HSVTC): 7.7
• Installation Configuration: Downflow/Horizontal
• Produced in US: Yes
• Rated Cooling Condition - (Ambient DB): 95 �F
• Rated Cooling Condition - (Ambient WB): 75 �F
• Rated Cooling Condition - (Room WB): 67 �F
• Rated Heating Condition - (Ambient DB): 47 �F
• Rated Heating Condition - (Ambient WB): 43 �F
• Rated Heating Condition - (Room WB): 60 �F
• Compressor LRA: 178 A
• Compressor RLA: 27.07 A
• Electric Heat Range: 20 kW
• Evap Motor RLA: 7 A
• Indoor Blower FLA: 6.9 A
• Max Overcurrent Protection: 60 A
• Min. Circuit Amps: 39 A
• Min. Voltage: 197 V
• Outdoor Fan FLA: 3.5 A
• Outdoor Fan LRA: 7.4 A
• Power Frequency: 60 Hz
• Power Phase: 1 Ph
• Power Voltage: 208-230 V
• Total Unit Amps: 37.47 A
• Air Flow Rate (High) - Cooling: 1950 ft�_/min
• Air Flow Rate (High) - Heating: 1950 ft�_/min
• Compressor Stages: Two Stage
• Compressor Type: Scroll
• Condenser Coil Metal Type: Copper
• Condenser Coil Rows: 2.0
• Condenser Fan Blade Count: 3.0
• Condenser Fan Diameter: 22 in
• Condenser Fan RPM: 1150 r/min
• Condenser Fin Density - (Fins Per Inch): 16.0
• Dimensions - (Blower Diameter): 11 in
• Dimensions - (Blower Width): 10 in
• Dimensions - (Evap Wheel Diameter): 11 in
• Dimensions - (Evap Wheel Width): 10 in
• Energy Source: Electric
• ETL Listed: Yes
• Evap Coil Metal Type: Aluminum
• Evap Coil Rows: 4.0
• Evap Fin Density - (Fins Per Inch): 16.0
• Evap Motor RPM: 1050 r/min
• Expansion Device: TXV
• External Static Pressure - (Rated): 0.8
• Number of Speeds: 5
• Sound Pressure (High) - Cooling: 78 dBA
• Weight - (Unit): 688 lb
• Cooling Capacity - (Rated): 60000 Btu/H
• Cooling Capacity - (Sensible): 45000 Btu/H
• Heating Capacity - (Rated): 59000 Btu/H
• Sensible Heat Ratio - (S/T): 0.75
• Tonnage: 5.0
• Condensate Drain Outlet: 3/4 in
• Factory Std. Refrigerant Charge: 185 oz
• Pipe Size Gas: 3/4 in
• Pipe Size Liquid: 3/8 in
• Refrigerant Type: R-32
• Proposition 65 Label: Yes
• Carton Type: CTN
• Case Qty: 1.0
