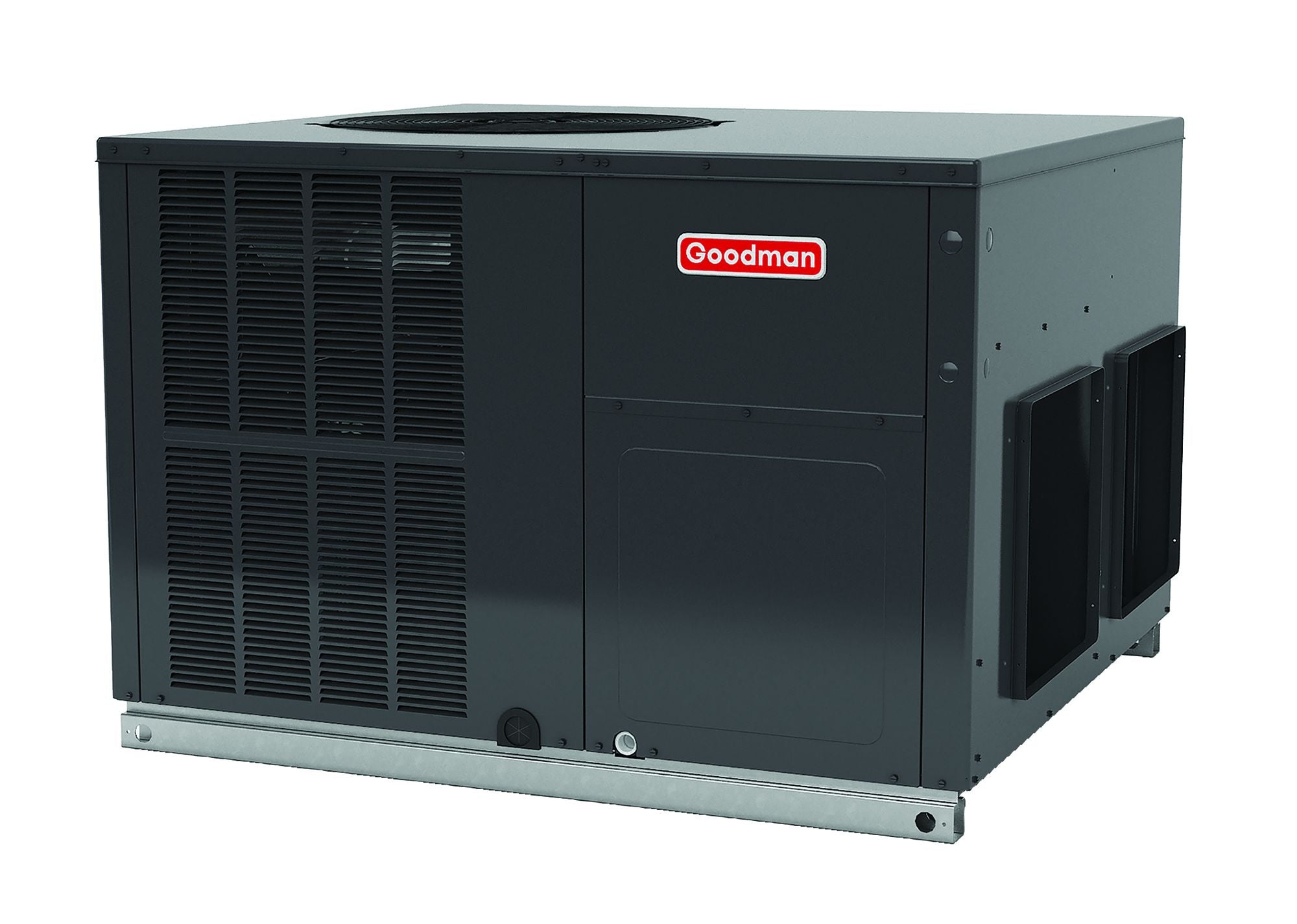

Goodman GPHM54831 Packaged Heat Pump 15.2 SEER2, Two Stage, Downflow/Horizontal, 4 Ton

Product Description

The Goodman GPHM54831 is a packaged heat pump with 15.2 SEER2, two-stage cooling and heating, and a multi-speed ECM. This 4-ton unit features a convertible airflow for horizontal or downflow configurations. It includes copper tube/aluminum fin condenser coils and an all-aluminum evaporator coil on 2- to 4-ton units. The system uses R-32 refrigerant and operates at 208-230 V.

• Energy-efficient compressor with internal relief valve
• Two-stage heating and cooling
• Multi-Speed EEM indoor blower motor

Product Highlights

The Goodman GPHM54831 packaged heat pump provides efficient heating and cooling with a two-stage compressor and versatile installation options.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GPHM54831

Technical Specifications

• Brand: Goodman
• MPN: GPHM54831
• Model Efficiency: 15.2 SEER2
• Product Category: Unitary
• Product Class - (PIM): Packaged Heat Pump
• System Family: Unitary Packaged System
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Residential-Single Family
• Product Family: GPHM5_32
• Series Name: GPHM5
• Installation Type: Ducted Multi-position
• Communication Feature: No
• Cooling Capacity - (Nominal): 45500 Btu/H
• Heating Capacity - (Nominal): 41000 Btu/H
• HSPF (HSVTC): 6.8
• HSPF 2 (HSVTC): 6.8
• SEER (HSVTC): 15.2
• SEER 2 (HSVTC): 15.2
• Installation Configuration: Downflow/Horizontal
• Produced in US: Yes
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Rated Heating Condition - (Ambient DB): 47 °F
• Rated Heating Condition - (Ambient WB): 43 °F
• Rated Heating Condition - (Room WB): 60 °F
• Compressor LRA: 128.4 A
• Compressor RLA: 23.23 A
• Electric Heat Range: 19 kW
• Evap Motor RLA: 5.4 A
• Indoor Blower FLA: 5.4 A
• Max Overcurrent Protection: 50 A
• Min. Circuit Amps: 33.3 A
• Min. Voltage: 197 V
• Max Voltage: 253 V
• Outdoor Fan FLA: 1.4 A
• Outdoor Fan LRA: 3.2 A
• Power Frequency: 60 Hz
• Power Phase: 1 Ph
• Power Voltage: 208-230 V
• Total Unit Amps: 30.03 A
• Air Flow Rate (High) - Cooling: 1575 ft³/min
• Air Flow Rate (High) - Heating: 1575 ft³/min
• Compressor Stages: Two Stage
• Compressor Type: Scroll
• Condenser Coil Metal Type: Copper
• Condenser Coil Rows: 2.0
• Condenser Fan Blade Count: 3.0
• Condenser Fan Diameter: 22 in
• Condenser Fan RPM: 1122 r/min
• Condenser Fin Density - (Fins Per Inch): 16.0
• Dimensions - (Blower Diameter): 10 in
• Dimensions - (Blower Width): 9 in
• Dimensions - (Evap Wheel Diameter): 10 in
• Dimensions - (Evap Wheel Width): 9 in
• Energy Source: Electric
• ETL Listed: Yes
• Evap Coil Metal Type: Aluminum
• Evap Coil Rows: 4.0
• Evap Fin Density - (Fins Per Inch): 14.0
• Evap Motor RPM: 1050 r/min
• Expansion Device: TXV
• External Static Pressure - (Rated): 0.8
• Number of Speeds: 5
• Sound Pressure (High) - Cooling: 78 dBA
• Weight - (Unit): 492 lb
• Blower Motor HorsePower: 3/4 metric hp
• Condenser Fan Horsepower: 1/4 metric hp
• Cooling Capacity - (Rated): 45500 Btu/H
• Cooling Capacity - (Sensible): 34580 Btu/H
• Heating Capacity - (Rated): 41000 Btu/H
• Sensible Heat Ratio - (S/T): 0.76
• Tonnage: 4.0
• Condensate Drain Outlet: 3/4 in
• Factory Std. Refrigerant Charge: 137 oz
• Pipe Size Gas: 3/4 in
• Pipe Size Liquid: 3/8 in
• Refrigerant Type: R-32
• Proposition 65 Label: Yes
• Carton Type: CTN
• Case Qty: 1.0
• AHRI Certificate: Yes
• AHRI Number: 217231864
• Cooling Stage(s): 2
• Compressor Stage: Two
• Electrical Phase(s): 1-Phase
