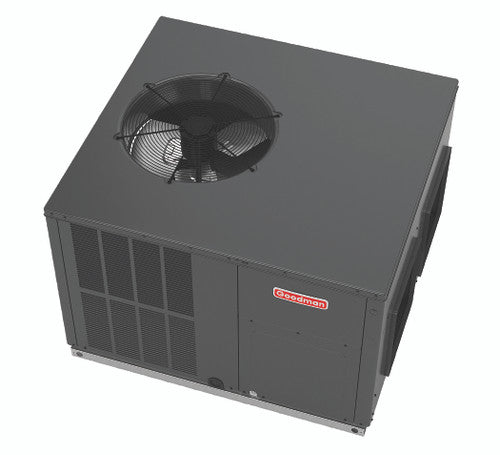

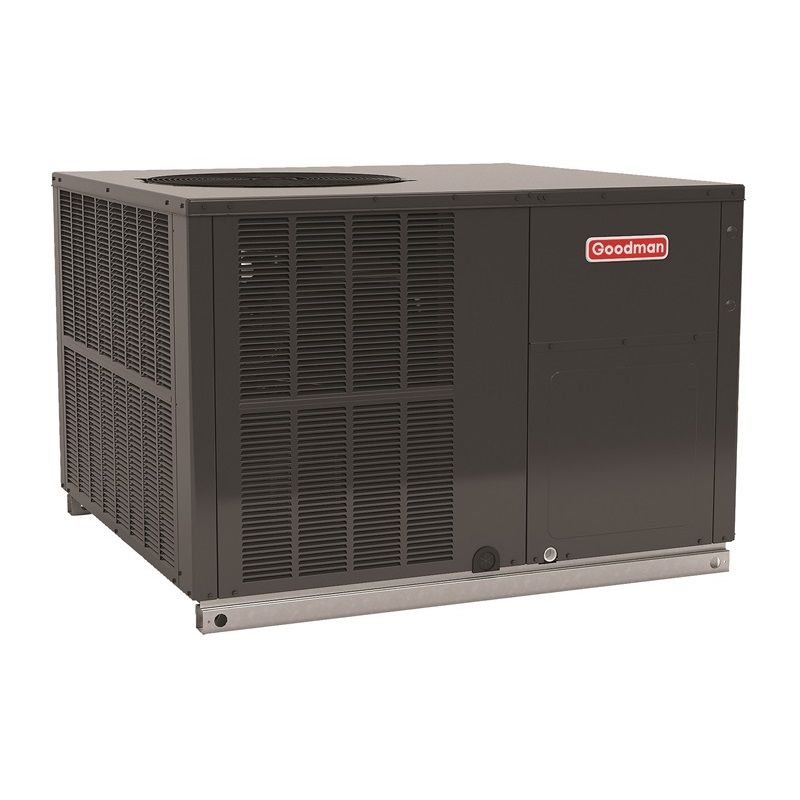

Goodman GPHM53641AA 3 Ton 15.2 SEER2 Package Heat Pump Unit - R410A Downflow/Horizontal REPLACES GPH1636M41

Product Description

The Goodman GPHM53641AA is an all-in-one outdoor heat pump packaged unit. With a durable cabinet and a high-efficiency design, the GPHM53641AA offers comfort with a SEER2 rating of 15.2. The Goodman heat pump system efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort.

• Ideal size to cover a medium-sized house in ideal climates
• 3 ton, 15.2 SEER2 heat pump packaged unit
• Downflow or horizontal discharge installation options

Product Highlights

This Goodman heat pump packaged unit features a durable cabinet, high-efficiency design, and straightforward installation, making it an ideal choice for energy-efficient heating and cooling.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GPHM53641AA

Technical Specifications

• Maximum CFM: 1200
• AHRI Certificate Number: 210288049
• HSPF: 8
• SEER2 (Efficiency): 15.2
• Decibel Level (dBA): 76 decibels
• Replaces: GPH1636M41
• Electrical: 208/230v 1Phase 60Hz
• Cooling BTU: 34,400 BTU
• Heating BTU: 33,200 BTU
• Refrigerant: R410A
• Brand/Manufacturer: Goodman
• Configuration: Multi-Position
• Phase: Single Phase
• Compressor Type: Scroll
• Condenser Stages: Two Stage
• Electric Backup Heat Capabilities (Optional): 5 Kilowatts, 10 Kilowatts, 15 Kilowatts
• Max Breaker Size: 40 amps
• Min. Breaker Size: 24.9
• Tonnage: 3 Ton
• Cooling Capacity Total BTU/h: 34,000
• Cooling Capacity Sensible BTU/h: 26,000
• SEER2 / EER2: 15.2 / 11.4
• Heating Capacity BTU/h (47°F): 33,800
• Heating Capacity C.O.P (47°F): 3.70
• Heating Capacity BTU/h (17°F): 19,600
• Heating Capacity C.O.P (17°F): 2.28
• HSPF2: 6.80
• Evaporator Motor Type: ECM
• Evaporator Motor Wheel (D x W): 10 x 9
• Nominal Cooling CFM: 1200
• No. of Speeds: 5
• Evaporator Motor Horsepower - RPM: 1/2 - 1050
• Evaporator Coil Face Area (ft): 6.20
• Evaporator Coil Rows Deep: 4
• Evaporator Coil Fins per Inch: 14
• Evaporator Coil Metering Device Type: TXV
• Evaporator Coil Drain Size (NPT): 3/4"
• Refrigerant Charge (oz.): 165
• Condenser Fan Horsepower - RPM: 1/4 - 1075
• Fan Diameter: 22
• # of Fan Blades: 3
• Condenser Coil Face Area (ft): 19.05
• Condenser Coil Rows Deep: 2
• Condenser Coil Fins per Inch: 16
• Compressor Quantity: 1
• Compressor Stage: Two
• Compressor RLA/LRA: 14.1 / 84.2
• Voltage/Phase (60 Hz): 208/230-1
• Indoor Blower FLA: 3.8
• Outdoor Fan FLA: 1.4
• M.C.A.1: 22.8
• M.O.P.2: 35
