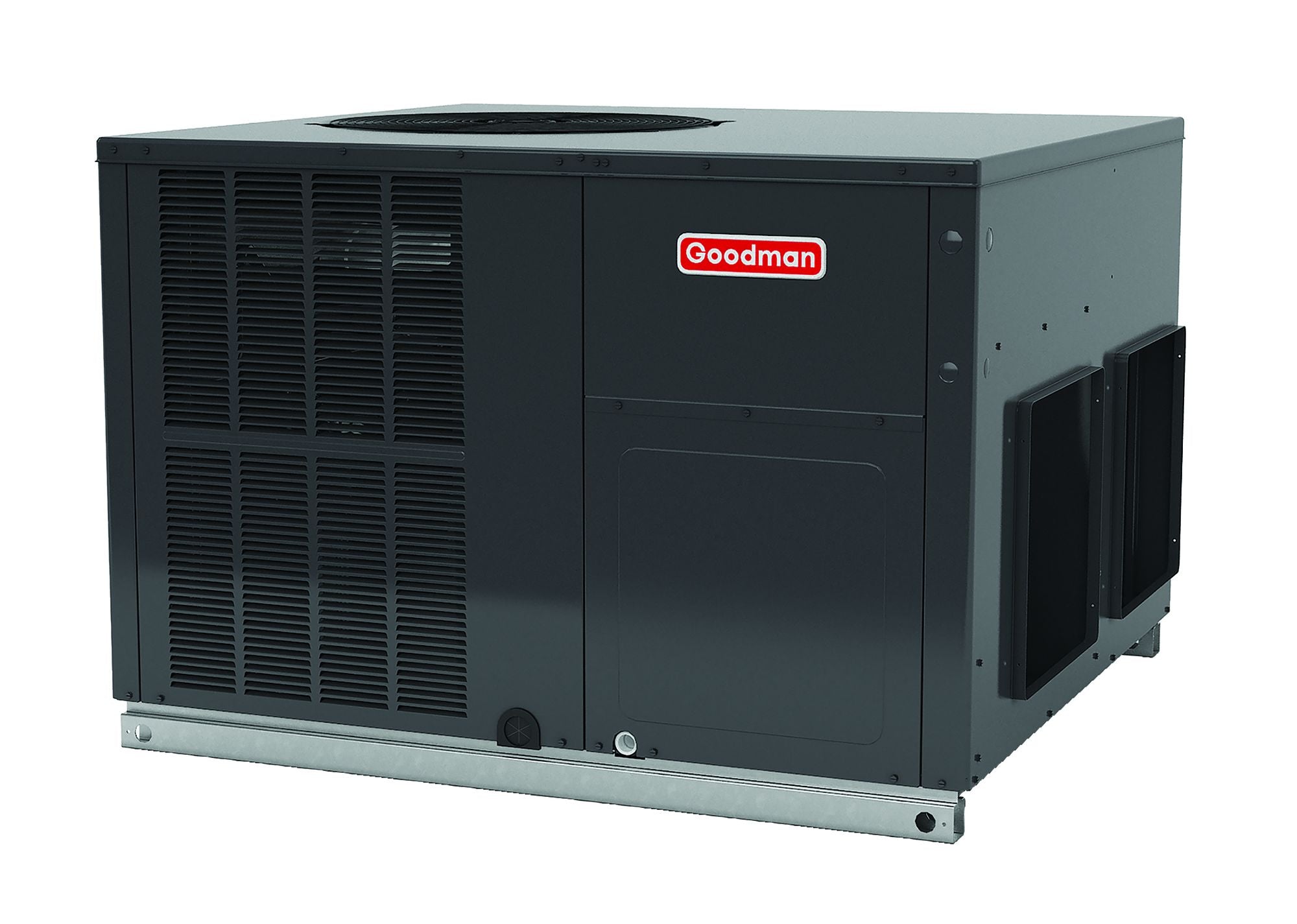

Goodman GPHM53631 Packaged Heat Pump 15.2 SEER2, Two Stage, Downflow/Horizontal, 3 Ton

Product Description

The Goodman GPHM53631 is a packaged heat pump with 15.2 SEER2, two-stage cooling, and a multi-speed ECM. This 3-ton unit features a convertible airflow for horizontal or downflow configurations. Designed for residential use, it provides efficient heating and cooling in a single system. The unit is equipped with a copper tube/aluminum fin condenser coil.

• Energy-efficient compressor with internal relief valve
• Multi-Speed EEM indoor blower motor
• Convertible airflow: horizontal or downflow

Product Highlights

The Goodman GPHM53631 packaged heat pump offers efficient, two-stage heating and cooling with flexible installation options for residential applications.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GPHM53631

Technical Specifications

• Brand: Goodman
• MPN: GPHM53631
• Model Efficiency: 15.2 SEER2
• Product Category: Unitary
• Product Class - (PIM): Packaged Heat Pump
• System Family: Unitary Packaged System
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Residential-Single Family
• Product Family: GPHM5_32
• Series Name: GPHM5
• Installation Type: Ducted Multi-position
• Communication Feature: No
• Cooling Capacity - (Nominal): 36000 Btu/H
• Heating Capacity - (Nominal): 35500 Btu/H
• SEER 2 (HSVTC): 15.2
• HSPF 2 (HSVTC): 6.7
• EER2 (HSVTC): 11.4
• Installation Configuration: Downflow/Horizontal
• Compressor Type: Scroll
• Compressor Stages: Two Stage
• Condenser Coil Metal Type: Copper
• Evap Coil Metal Type: Aluminum
• Refrigerant Type: R-32
• Power Voltage: 208-230 V
• Power Frequency: 60 Hz
• Power Phase: 1 Ph
• Air Flow Rate (High) - Cooling: 1200 ft³/min
• Air Flow Rate (High) - Heating: 1200 ft³/min
• Condenser Fan Diameter: 22 in
• Condenser Fan RPM: 1075 r/min
• Evap Motor RPM: 1050 r/min
• Number of Speeds: 5
• Sound Pressure (High) - Cooling: 76 dBA
• Electric Heat Range: 14.25 kW
• Condenser Fin Density - (Fins Per Inch): 16.0
• Evap Fin Density - (Fins Per Inch): 14.0
• Condenser Coil Rows: 2.0
• Evap Coil Rows: 4.0
• Expansion Device: TXV
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Rated Heating Condition - (Ambient DB): 47 °F
• Rated Heating Condition - (Ambient WB): 43 °F
• Rated Heating Condition - (Room WB): 60 °F
• Compressor LRA: 126 A
• Compressor RLA: 18.37 A
• Indoor Blower FLA: 3.8 A
• Outdoor Fan FLA: 1.4 A
• Outdoor Fan LRA: 3.2 A
• Min. Circuit Amps: 22.8 A
• Max Overcurrent Protection: 35 A
• Total Unit Amps: 23.57 A
• Dimensions - (Blower Diameter): 10 in
• Dimensions - (Blower Width): 9 in
• Dimensions - (Evap Wheel Diameter): 10 in
• Dimensions - (Evap Wheel Width): 9 in
• Factory Std. Refrigerant Charge: 144 oz
• Sensible Heat Ratio - (S/T): 0.74
• Tonnage: 3.0
• COP47 (HSVTC): 3.66
• EER (HSVTC): 11.4
• HSPF (HSVTC): 6.7
• COP17 (HSVTC): 2.38
• Produced in US: Yes
• ETL Listed: Yes
• Electrical Phase(s): 1-Phase
• Airflow Direction: Downflow/Horizontal
