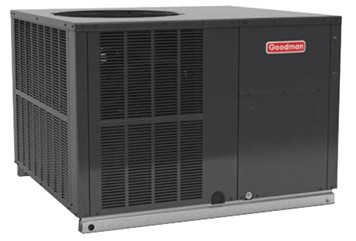

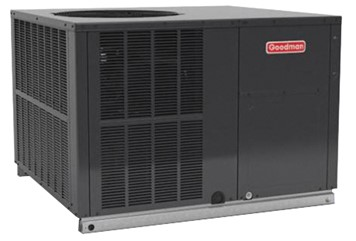

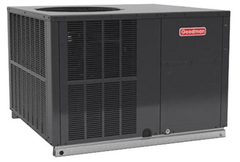

Goodman GPHM53041AA Packaged Heat Pump 15.2 SEER2 2.5 Ton

Product Description

The Goodman GPHM53041AA is a self-contained packaged heat pump designed for downflow and horizontal installations. Rated at 15.2 SEER2 with two-stage cooling and a multi-speed blower, this unit delivers efficient heating and cooling from a single outdoor cabinet. At 2.5 tons of capacity, it handles residential and light-commercial applications where space or installation constraints favor a packaged system over a split setup. The unit runs on R-410A refrigerant. Licensed HVAC technicians install and commission this equipment.

The GPHM53041AA suits residential and light-commercial buildings where rooftop or slab-mounted packaged equipment is preferred. Its downflow and horizontal airflow configurations allow installation on rooftop curbs or ground-level pads with ductwork connecting directly below or through the side. Two-stage cooling reduces short-cycling, improves humidity control, and lowers operating costs compared to single-stage designs. The multi-speed blower further supports airflow balance across varying load conditions.

Key Features

• 15.2 SEER2 efficiency rating for compliance with current federal minimum standards
• Two-stage cooling operation for improved humidity control and reduced short-cycling
• Multi-speed blower motor for flexible airflow matching
• 2.5-ton cooling and heating capacity
• Downflow and horizontal airflow configurations in a single unit
• R-410A refrigerant system

Compatibility

Designed as an OEM packaged heat pump unit for downflow and horizontal ducted applications requiring a self-contained R-410A system at 2.5-ton capacity.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for R-410A refrigerant handling. Disconnect and lock out all electrical power to the unit before any service or wiring work. Rooftop installations require a properly sized curb adapter that matches the unit footprint and airflow orientation. Reference local mechanical codes and the manufacturer installation manual for electrical disconnect sizing, disconnect placement, and condensate drainage requirements.

Technical Specifications

• Cooling Capacity: 2.5 tons
• Efficiency Rating: 15.2 SEER2
• Compressor Stages: Two stage
• Blower Type: Multi-speed
• Refrigerant: R-410A
• Airflow Configuration: Downflow and horizontal
• UPC: 663051668959

Standard Information

• Brand: Goodman
• Manufacturer Part Number: GPHM53041AA
