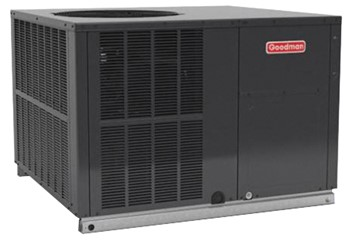

Goodman GPHM52441AA Packaged Heat Pump 15.2 SEER2 2 Ton

Product Description

The Goodman GPHM52441AA is a packaged heat pump unit designed for downflow and horizontal installations, delivering two-stage cooling and heating performance at 15.2 SEER2. Rated at 2 tons of cooling capacity, this self-contained unit integrates the compressor, coil, and air handler into a single cabinet, eliminating the need for a separate indoor unit. It operates on R-410A refrigerant and features a multi-speed blower motor to support system efficiency across varying load conditions. Licensed HVAC technicians install this unit in light commercial and residential applications where a packaged rooftop or horizontal ground-level configuration is required.

This unit is suited for residential and light commercial buildings requiring a single-piece HVAC solution without a split-system indoor coil or air handler. The downflow and horizontal airflow configurations make it adaptable to rooftop curb mounts as well as slab or stand installations at grade. The two-stage compressor reduces short-cycling and maintains more consistent indoor temperatures compared to single-stage units, making it a practical choice for moderate-climate zones where heat pump efficiency is a design priority.

Key Features

• 15.2 SEER2 efficiency rating meets current federal minimum standards for packaged heat pumps
• Two-stage cooling and heating compressor reduces short-cycling and improves comfort control
• Multi-speed blower motor supports variable airflow to match system demand
• Downflow and horizontal airflow configurations in a single unit for installation flexibility
• R-410A refrigerant system in a self-contained packaged cabinet
• 2-ton capacity suitable for smaller residential and light commercial zones

Compatibility

Designed as an OEM packaged heat pump replacement or new-installation unit for downflow and horizontal ducted systems requiring a 2-ton, R-410A packaged heat pump with two-stage operation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for R-410A refrigerant handling. Disconnect all electrical power to the unit and verify zero voltage before making any electrical or refrigerant connections. The unit should be set on a level pad, curb, or stand per the manufacturer installation instructions and local mechanical code requirements. Duct connections, electrical supply wiring, and low-voltage thermostat wiring must comply with local codes and the National Electrical Code.

Technical Specifications

• Cooling Capacity: 2 tons (24,000 BTU/h)
• Efficiency Rating: 15.2 SEER2
• Refrigerant: R-410A
• Compressor Stages: Two stage
• Blower Motor: Multi-speed
• Airflow Configuration: Downflow and horizontal
• UPC: 663051668942

Standard Information

• Brand: Goodman
• Manufacturer Part Number: GPHM52441AA
