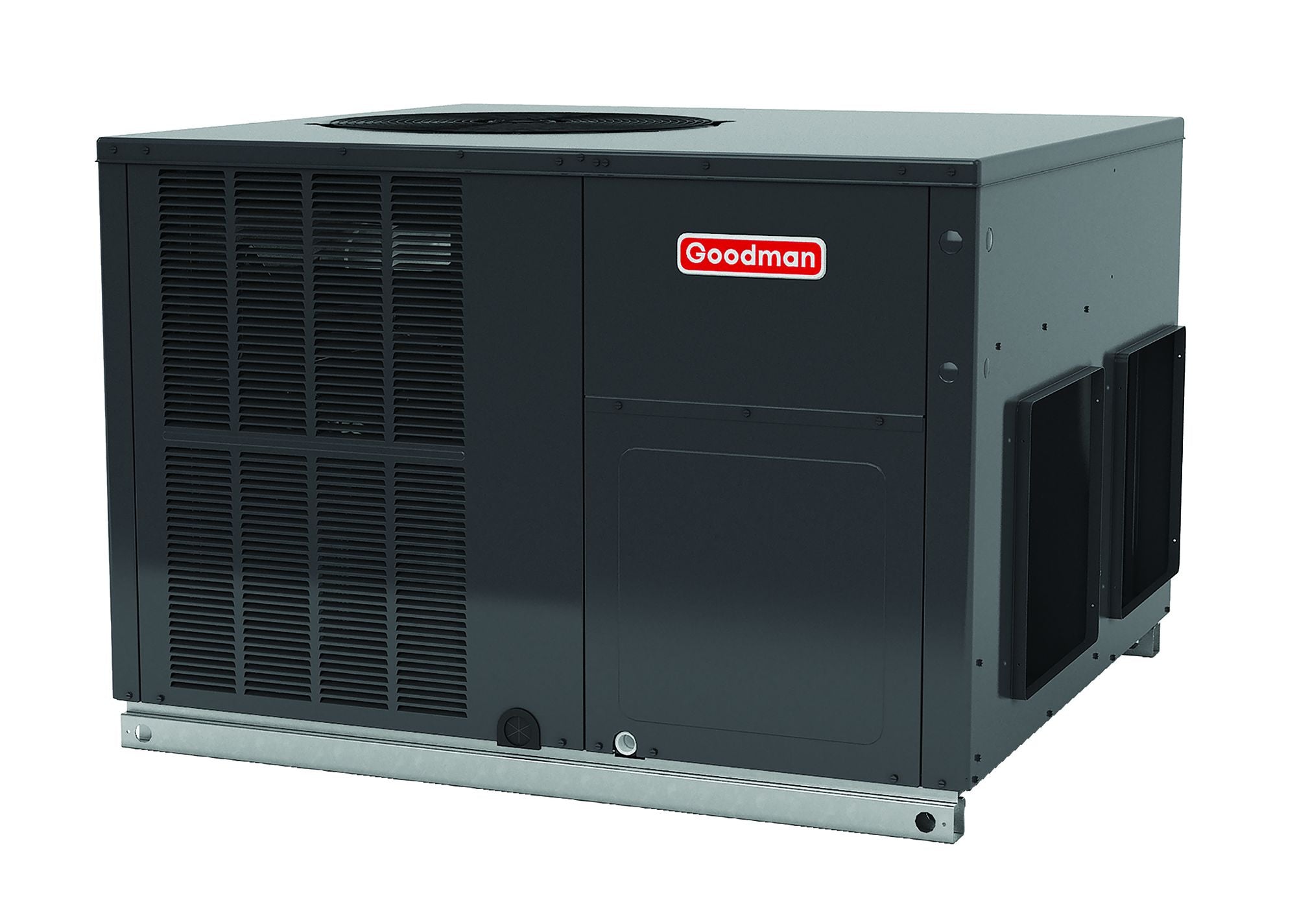

Goodman GPHM52431 Packaged Heat Pump 15.2 SEER2, Single Stage, Downflow/Horizontal, 2 Ton

Product Description

The Goodman GPHM52431 is a packaged heat pump with 15.2 SEER2, single-stage cooling, and a multi-speed ECM. This 2-ton unit meets the 2023 M1 Test Standards and features an energy-efficient compressor with an internal relief valve. It offers convertible airflow for horizontal or downflow applications and includes a liquid-line filter drier.

• Energy-efficient compressor with internal relief valve
• Two-stage heating and cooling
• Multi-Speed EEM indoor blower motor

Product Highlights

This Goodman packaged heat pump provides efficient heating and cooling in a single, streamlined system suitable for residential and light commercial installations.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GPHM52431

Technical Specifications

• Brand: Goodman
• MPN: GPHM52431
• Product Category: Unitary
• Product Class - (PIM): Packaged Heat Pump
• System Family: Unitary Packaged System
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Residential-Single Family
• Product Family: GPHM5_32
• Series Name: GPHM5
• Model Efficiency: 15.2 SEER2
• Family Description: Packaged Heat Pump Up to 15.2 SEER2 / 6.7 HSPF2 2 to 5 Tons
• Installation Type: Ducted Multi-position
• Communication Feature: No
• Cooling Capacity - (Nominal): 24000 Btu/H
• COP17 (HSVTC): 2.18
• COP47 (HSVTC): 3.64
• EER (HSVTC): 11.4
• EER2 (HSVTC): 11.4
• ENERGY STAR® Certified: No
• Heating Capacity - (Nominal): 22600 Btu/H
• HSPF (HSVTC): 6.7
• HSPF 2 (HSVTC): 6.7
• Installation Configuration: Downflow/Horizontal
• Produced in US: Yes
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Rated Heating Condition - (Ambient DB): 47 °F
• Rated Heating Condition - (Ambient WB): 43 °F
• Rated Heating Condition - (Room WB): 60 °F
• Compressor LRA: 56.5 A
• Compressor RLA: 10.62 A
• Electric Heat Range: 9.5 kW
• Evap Motor RLA: 3.8 A
• Indoor Blower FLA: 3.8 A
• Max Overcurrent Protection: 25 A
• Max Voltage: 253 V
• Min. Circuit Amps: 18.7 A
• Min. Voltage: 197 V
• Outdoor Fan FLA: 1.3 A
• Outdoor Fan LRA: 3 A
• Power Frequency: 60 Hz
• Power Phase: 1 Ph
• Power Voltage: 208-230 V
• Total Unit Amps: 15.719999999999999 A
• Air Flow Rate (High) - Cooling: 800 ft³/min
• Air Flow Rate (High) - Heating: 800 ft³/min
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Condenser Coil Metal Type: Copper
• Condenser Coil Rows: 2.0
• Condenser Fan Blade Count: 3.0
• Condenser Fan Diameter: 22 in
• Condenser Fan RPM: 830 r/min
• Condenser Fin Density - (Fins Per Inch): 16.0
• Dimensions - (Blower Diameter): 10 in
• Dimensions - (Blower Width): 9 in
• Dimensions - (Evap Wheel Diameter): 10 in
• Dimensions - (Evap Wheel Width): 9 in
• Unit Height: 34-3/4 in
• Unit Width: 47 in
• Energy Source: Electric
• ETL Listed: Yes
• Evap Coil Metal Type: Aluminum
• Evap Coil Rows: 4.0
• Evap Fin Density - (Fins Per Inch): 14.0
• Evap Motor RPM: 1050 r/min
• Expansion Device: TXV
• External Static Pressure - (Rated): 0.8
• Number of Speeds: 5
• Sound Pressure (High) - Cooling: 76 dBA
• Unit Weight: 376 lb
• Blower Motor HorsePower: 1/2 metric hp
• Condenser Fan Horsepower: 1/4 metric hp
• Cooling Capacity - (Rated): 24000 Btu/H
• Cooling Capacity - (Sensible): 18720 Btu/H
• Evap Motor Horsepower: 1/2 metric hp
• Heating Capacity - (Rated): 22600 Btu/H
• Sensible Heat Ratio - (S/T): 0.78
• Tonnage: 2.0 Ton
• Condensate Drain Outlet: 3/4 in
• Factory Std. Refrigerant Charge: 102 oz
• Pipe Size Gas: 3/4 in
• Pipe Size Liquid: 3/8 in
• Refrigerant Type: R-32
• Proposition 65 Label: Yes
