Description

Product Description

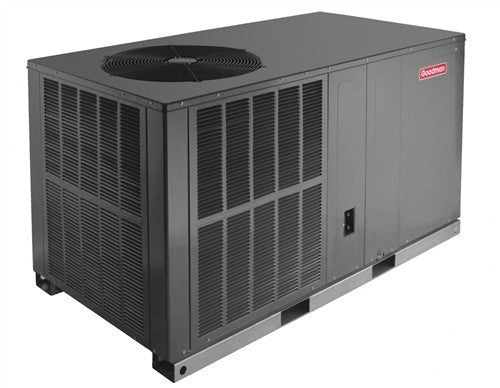

The GOODMAN GPHH54831 is a horizontal packaged heat pump with 15.2 SEER2, two-stage cooling, and a multi-speed ECM. This 4-ton unit is designed for residential-single family use and features a high-efficiency scroll compressor. It meets the 2023 M1 Test Standards and is ETL Listed.

  • High-efficiency scroll compressor
  • Multi-speed ECM indoor blower motor
  • Copper tube/aluminum fin condenser coil

Key Features

  • Two-stage scroll compressor
  • Multi-speed ECM indoor blower motor
  • Copper tube/aluminum fin condenser coil
  • Horizontal installation configuration
  • ETL Listed
Technical Specifications
Model Efficiency
15.2 SEER2
Product Category
Unitary
Product Class - (PIM)
Packaged Heat Pump
System Family
Unitary Packaged System
Function Category
Heat Pump
Product Type
Equipment
Unit Type
Outdoor
Market Type
Residential-Single Family
Installation Type
Ducted
Communication Feature
No
Cooling Capacity - (Nominal)
45000 Btu/H
COP17 (HSVTC)
2.38
COP47 (HSVTC)
3.68
EER (HSVTC)
11.2
EER2 (HSVTC)
11.2
ENERGY STAR Certified
No
Heating Capacity - (Nominal)
41500 Btu/H
HSPF (HSVTC)
6.7
HSPF 2 (HSVTC)
6.7
SEER (HSVTC)
15.2
SEER 2 (HSVTC)
15.2
Installation Configuration
Horizontal
Produced in US
Yes
Rated Cooling Condition - (Ambient DB)
95 �F
Rated Cooling Condition - (Ambient WB)
75 �F
Rated Cooling Condition - (Room WB)
67 �F
Rated Heating Condition - (Ambient DB)
47 �F
Rated Heating Condition - (Ambient WB)
43 �F
Rated Heating Condition - (Room WB)
60 �F
Compressor LRA
128.4 A
Compressor RLA
23.23 A
Electric Heat Range
19 kW
Evap Motor RLA
5.4 A
Indoor Blower FLA
5.4 A
Max Overcurrent Protection
50 A
Min. Circuit Amps
36.44 A
Min. Voltage
197 V
Max Voltage
253 V
Outdoor Fan FLA
2 A
Outdoor Fan LRA
4.4 A
Power Frequency
60 Hz
Power Phase
1 Ph
Power Voltage
208-230 V
Total Unit Amps
30.63 A
Air Flow Rate (High) - Cooling
1550 ft_/min
Air Flow Rate (High) - Heating
1550 ft_/min
Compressor Stages
Two Stage
Compressor Type
Scroll
Condenser Coil Metal Type
Copper
Condenser Coil Rows
2.0
Condenser Fan Blade Count
4.0
Condenser Fan Diameter
22 in
Condenser Fan RPM
1122 r/min
Condenser Fin Density - (Fins Per Inch)
16.0
Dimensions - (Blower Diameter)
10 in
Dimensions - (Blower Width)
8 in
Dimensions - (Evap Wheel Diameter)
10 in
Dimensions - (Evap Wheel Width)
8 in
Dimensions - (Unit Height)
35 in
Dimensions - (Unit Width)
66 in
Energy Source
Electric
ETL Listed
Yes
Evap Coil Metal Type
Aluminum
Evap Coil Rows
4.0
Evap Fin Density - (Fins Per Inch)
14.0
Evap Motor RPM
1050 r/min
Expansion Device
TXV
External Static Pressure - (Rated)
0.8
Number of Speeds
5
Sound Pressure (High) - Cooling
80 dBA
Weight - (Unit)
410 lb
Blower Motor HorsePower
3/4 metric hp
Condenser Fan Horsepower
1/3 metric hp
Cooling Capacity - (Rated)
45000 Btu/H
Cooling Capacity - (Sensible)
35550 Btu/H
Heating Capacity - (Rated)
41500 Btu/H
Sensible Heat Ratio - (S/T)
0.79
Tonnage
4
Condensate Drain Outlet
3/4 in
Factory Std. Refrigerant Charge
129 oz
Pipe Size Gas
3/4 in
Pipe Size Liquid
3/8 in
Refrigerant Type
R-32
Proposition 65 Label
Yes
AHRI Certificate
Yes
AHRI Number
217231859
Airflow Direction
Horizontal
Brand
GOODMAN
Manufacturer Part Number
GPHH54831
