Goodman gphh53631 Package Heat Pump 3 Ton 15.2 SEER2

Product Description

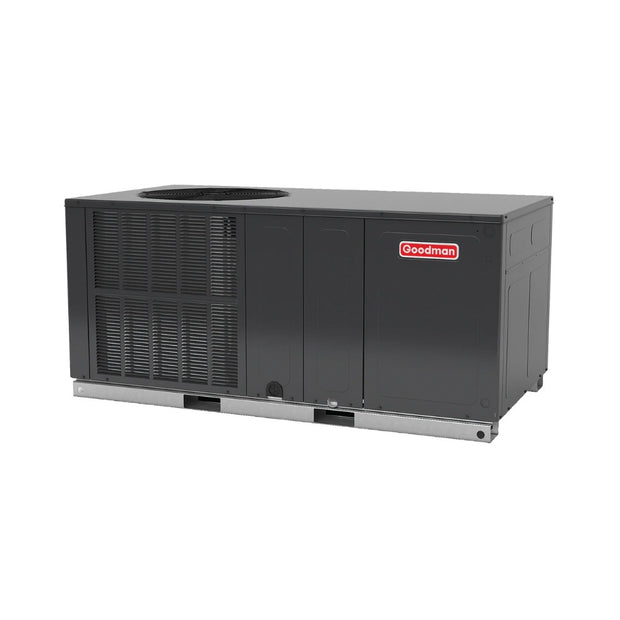

The GOODMAN gphh53631 is a 3-ton packaged heat pump designed for self-contained heating and cooling applications in a single cabinet. Operating on R-32 refrigerant and rated at 15.2 SEER2, this unit meets current DOE efficiency standards. It uses a scroll compressor for reliable compression across a wide range of operating conditions. Licensed HVAC technicians install and service this equipment. The all-in-one configuration houses the compressor, condenser coil, evaporator coil, and air handler components in one enclosure, simplifying installation where a split system is not practical or permitted by site constraints.

This packaged heat pump suits residential and light commercial rooftop or ground-level applications where both heating and cooling capacity are required from a single piece of equipment. The R-32 refrigerant charge has a lower global warming potential compared to R-410A, making this unit compliant with evolving refrigerant regulations. The 3-ton nominal capacity serves structures with matched duct systems designed for that load. Specific compatible air handler accessories, thermostats, and disconnect requirements should be confirmed against Goodman engineering documentation for this model number.

Key Features

• 15.2 SEER2 efficiency rating meets current DOE minimum efficiency requirements
• R-32 refrigerant with lower global warming potential than R-410A
• Scroll compressor for consistent, reliable compression performance
• 3-ton nominal cooling and heating capacity
• All-in-one packaged cabinet eliminates the need for a separate indoor air handler or furnace

Compatibility

Designed as an OEM packaged heat pump unit for residential and light commercial duct systems sized for 3-ton nominal capacity. Confirm thermostat, disconnect, and duct compatibility against Goodman installation documentation for model gphh53631.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the required EPA Section 608 refrigerant handling certification. Disconnect and lock out all electrical power before servicing. R-32 is classified as mildly flammable (A2L) and requires adherence to applicable local mechanical codes and manufacturer safety guidelines during handling, brazing, and leak testing. Duct connections, electrical supply wiring, and refrigerant line work should comply with the current editions of the IMC and NEC.

Technical Specifications

• Nominal Cooling Capacity: 3 Ton
• Efficiency Rating: 15.2 SEER2
• Refrigerant Type: R-32
• Compressor Type: Scroll

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: gphh53631
