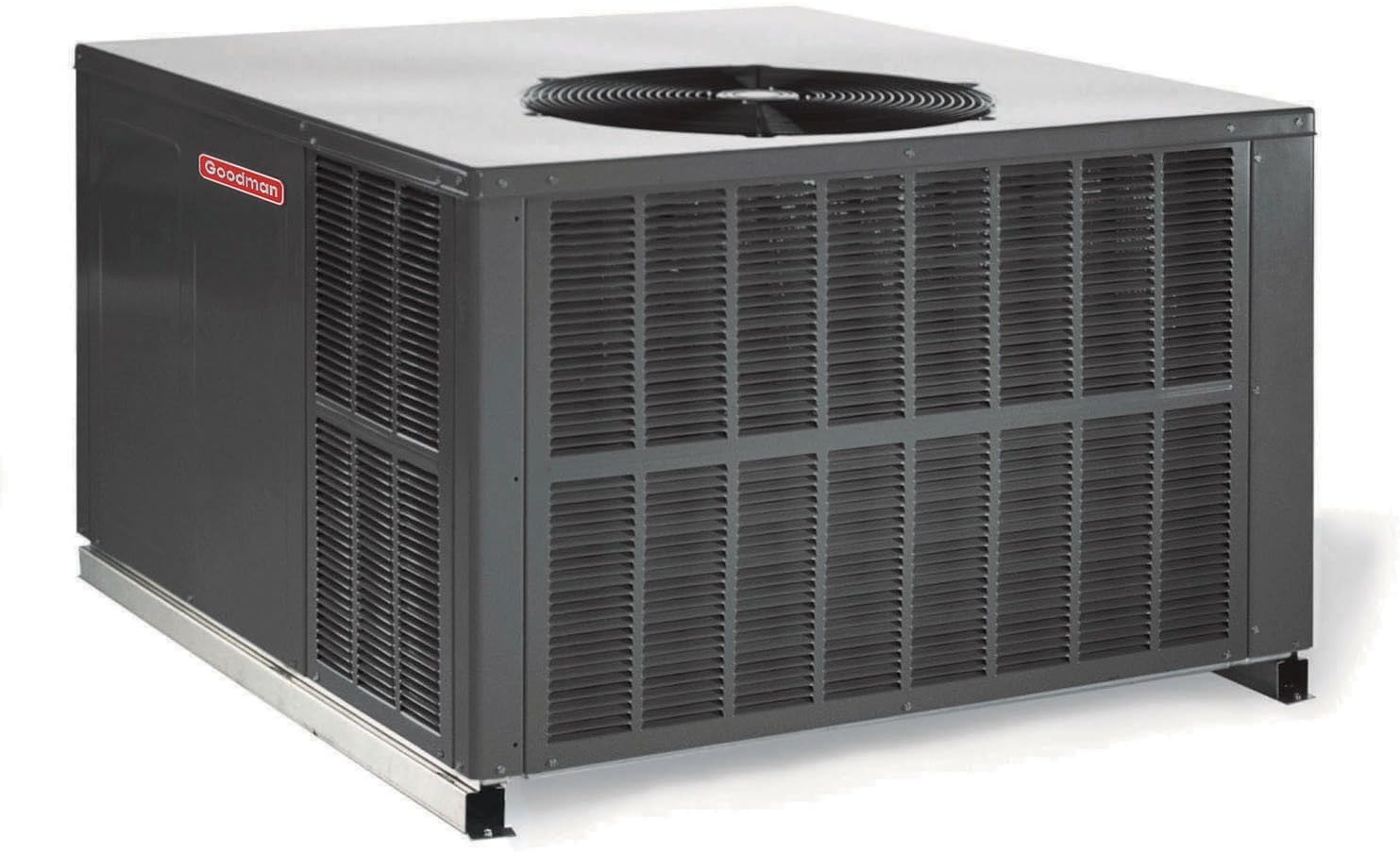

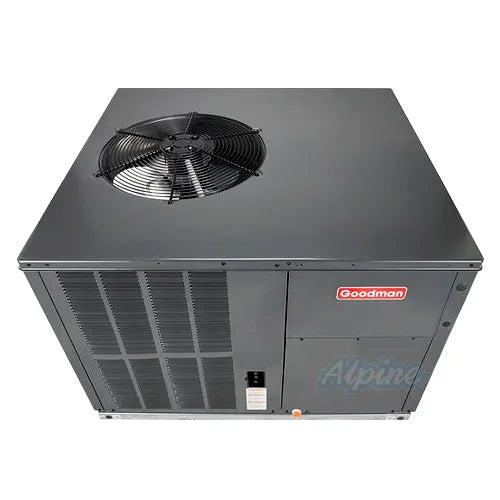

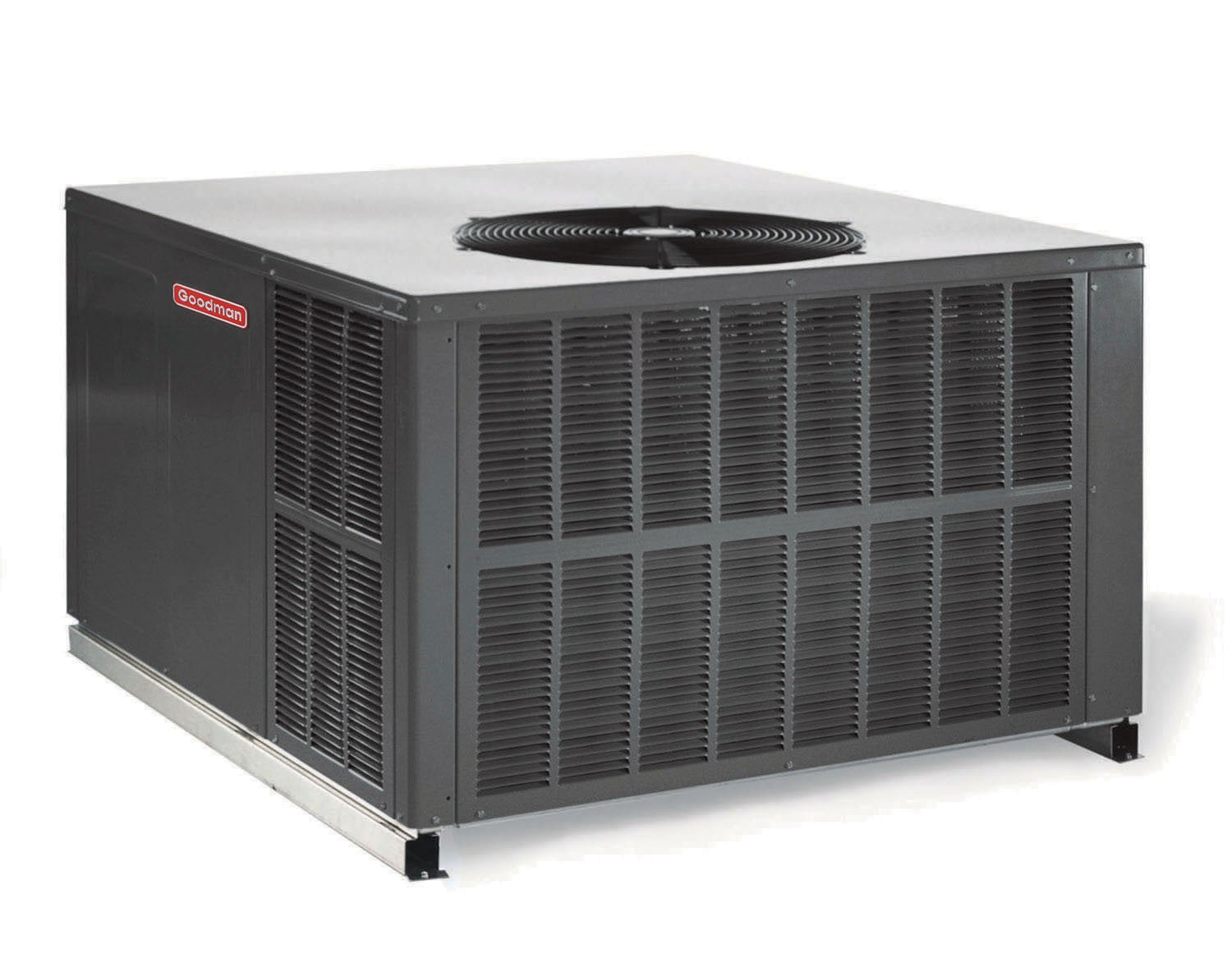

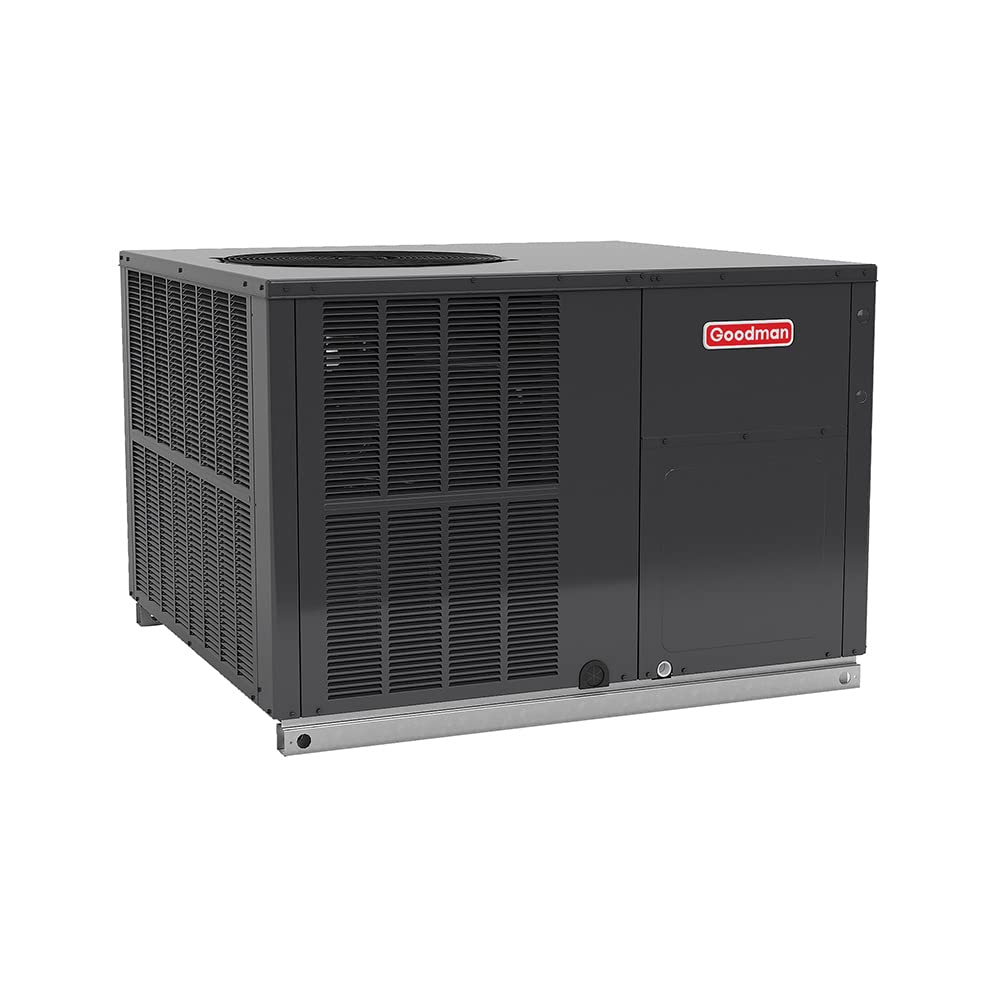

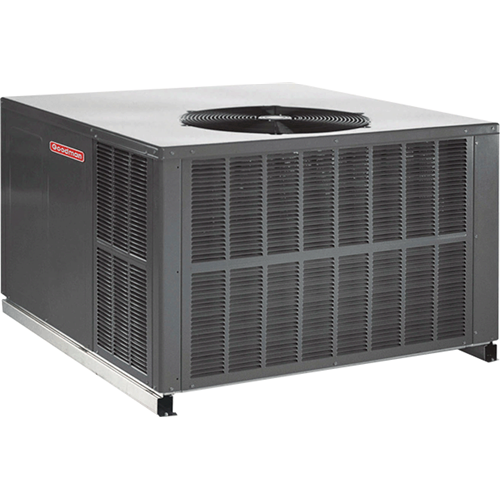

Goodman GPH1460M41 Packaged Heat Pump 14 SEER, Two Stage, Downflow/Horizontal, 5 Ton

Product Description

The Goodman GPH1460M41 packaged heat pump provides energy-efficient cooling and heating in one self-contained unit. This 14 SEER unit features two-stage cooling, a multi-speed ECM motor, and convertible airflow for horizontal or downflow configurations. The heavy-gauge, galvanized-steel cabinet has a UV-resistant powder-paint finish suitable for ground-level or rooftop mounting.

• Features a high-efficiency compressor.
• Equipped with an ECM indoor blower motor.
• Includes a liquid-line filter drier.

Product Highlights

This Goodman packaged heat pump offers efficient performance and durable construction for residential applications.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GPH1460M41
• Country of Origin: USA

Technical Specifications

• Class: Packaged Heat Pump
• Family: GPH14_M
• Tonnage: 5 tons
• Category: Packaged Heat Pump
• Keywords: GPH1460M41
• Unit Type: Outdoor
• Unit Depth: 51-1/2 in
• Unit Width: 47-1/2 in
• Power Phase: 1 Ph
• Refrigerant: R-410A
• Unit Height: 42-1/2 in
• Max. Voltage: 253 V
• Min. Circuit: 43.7 A
• Min. Voltage: 197 V
• Power Voltage: 208/230 V
• Compressor Type: Scroll
• Power Frequency: 60 Hz
• Model Efficiency: 14 SEER
• Motor Speed Type: Multi Speed ECM
• Compressor Stages: Two Stage
• Family Description: Packaged Heat Pumps 2 to 5 Tons 14 SEER & 8.0 HSPF
• Product ID Bar Code: GPH1460M41
• Prop65 Label Required: TRUE
• Model Name: GPH1460M41
• Power Source: Corded Electric
• Control Method: App
• Special Feature: Air Purification Filter
• Air Flow Efficiency: 3000 Cubic Feet Per Minute Per Watt
• Seasonal Energy Efficiency Ratio (SEER): 14.0
• Model Info: GPH1460M41
• Controller Type: Remote Control
• Installation Type: Ducted
• Batteries Included?: No
• Batteries Required?: No
• Product Category: Unitary
• Product Class - (PIM): Packaged Heat Pump
• System Family: Unitary Packaged System
• Function Category: Heat Pump
• Product Type: AIR_CONDITIONER
• Market Type: Residential-Single Family
• Product Family: GPH14_M
• Series Name: GPH14M
• Communication Feature: No
• DOE Regional Compliance: Southwest;Southeast;North
• Export Control Classification Number - (ECCN): EAR99
• Universal Product Code (UPC): 663051525047.0
• Installation Configuration: Downflow/Horizontal
• Condenser Coil Rows: 2.0
• Condenser Fan Diameter: 22 in
• Condenser Fan RPM: 1075 r/min
• Condenser Fin Density - (Fins Per Inch): 16.0
• Dimensions - (Evap Wheel Diameter): 10 in
• Dimensions - (Evap Wheel Width): 9 in
• Evap Coil Metal Type: Aluminum
• Evap Coil Rows: 4.0
• Evap Fin Density - (Fins Per Inch): 14.0
• Evap Motor RPM: 1050 r/min
• Number of Speeds: 5
• Sound Pressure (High) - Cooling: 80 dBA
• Refrigerant Type: R-410A
• Proposition 65 Label: Yes
• Dimensions - (Case Depth): 52.00 in
• Dimensions - (Case Height): 44.00 in
• Dimensions - (Case Width): 48.00 in
• Dimensions - (Pallet Depth): 52.00 in
• Dimensions - (Pallet Height): 44.00 in
• Dimensions - (Pallet Width): 48.00 in
• Dimensions - (Shipping Unit Depth): 52.00 in
• Dimensions - (Shipping Unit Height): 44.00 in
• Dimensions - (Shipping Unit Width): 48.00 in
• Shipping Volume - (Unit): 109824.000 in³
• Volume - (Case): 109824.000 in³
• Weight - (Case): 494.000 lb
• Weight - (Shipping Unit): 494.000 lb
• SEER (HSVTC): 14.0
• HSPF (HSVTC): 8.0
• EER (HSVTC): 11.0
• COP47 (HSVTC): 3.5
• COP17 (HSVTC): 2.2
• Total BTU/h: 58000 Btu/H
• Max Overcurrent Protection: 70 A
• Outdoor Fan FLA: 2.5 A
• Outdoor Fan LRA: 3.0 A
• Compressor LRA: 139.9 A
• Compressor RLA: 26.9 A
• Condensate Drain Outlet: 3/4 in
• Factory Std. Refrigerant Charge: 170 oz
• Produced in US: Yes
• Configuration: Downflow / Horizontal
• Fuel Type: Electricity
• High Pressure Safety Switch: Yes
• Low Pressure Safety Switch: Yes
• SEER2: 13.4
• EER2: 10.6
• HSPF2: 6.7
• Coefficient of Performance (at 47 F): 3.6
• Primary Refrigerant: R-410A
• Mobile Home Compatible: Yes
• RDS (Refrigerant Detection System) On-Board: No
• High Output Cool: 58000 BTU
• High Output Heat: 57000 BTU
• Electric Heat Capabilities (Optional): 10 / 15 / 20 / 5 / 8 Kilowatts
• Stages of Heat: Two
• Stages of Cool: Two
• Nominal Airflow: 1850
• Sound Rating: 80 Decibels
• Blower Type: High Efficiency Multi-Speed
• Voltage: 240
• Frequency: 60 Hz
• Voltage Phase: 1
• Maximum Fuse/Breaker: 70 Amps
• Cabinet/Chassis Size: Large
• Width: 47 Inches
• Depth: 51 Inches
• Height: 42 3/4 Inches
• Product Weight: 495 lbs
• Shipping Weight: 495 lbs
• Pad Size: 50x53 Inches
• Return Air Opening Size: side 16w x 18h bottom 11w x 22d inches
• Supply Air Opening Size: side 16w x 18h bottom 22w x 11d Inches
• AHRI#: 201629773
• Approved for US Region(s): North / Southeast / Southwest
• ENERGY STAR® Certified: No
• California Approved Furnace: Yes
• Ultra-Low NOx: No
• Series: GPH14M
• Cooling BTU Rating: 57000 Btu/hr at 47 deg F
• Heating BTU Rating: 31400 Btu/hr at 17 deg F
• Nominal Capacity: 5 ton
• Amperage Rating: 44 A Minimum Circuit Ampacity
• HSPF Rating: 8
• HP Rating: 3/4 hp Condenser, 1 hp Evaporator
• CFM Rating: 1850 cu-ft/min Evaporator
• Sound Level: 80 dBA
• Fuse Rating: 60 A
• Material: Galvanized Steel
• Dimensions: 47 in W x 40 in H x 51 in D
• AHRI Number: 201629773
• Product Height (in): 42.75
• Air Flow Direction: Downflow, Horizontal
• Product Length (in): 51
• Avg Coverage Area: 2,500 - 3,000 Sq Ft
• Product Width (in): 47
• Blower Motor: Multi Speed
• Compressor: Single Stage
• Cooling Capacity: 5 Ton
• Electrical Phase: 1-Phase
• Heat Pump Efficiency (HSPF): 8
• BtuH Cooling: 58,000
• BtuH Heating Input: 57500
• COP: 3.5
• EER: 11
• HSPF: 8.0
• Wt. Lbs.: 495
• Nom. CFM: 1,850
• Nom. Tons: 5
• Phase: Single
• Volts: 208/230
• Efficiency: 14 SEER
• Electrical: 208/230V-1-60
