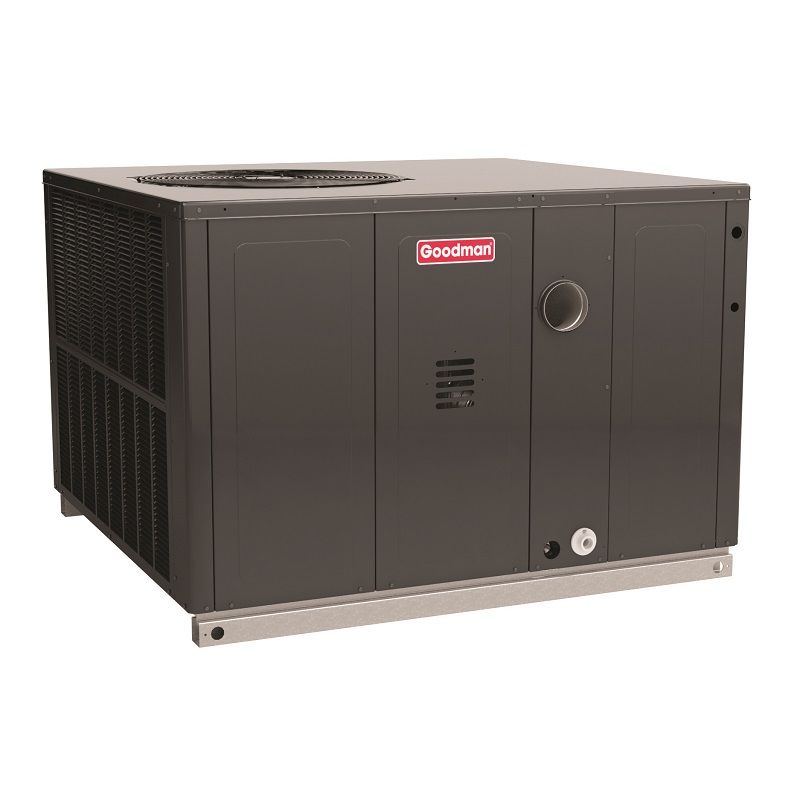

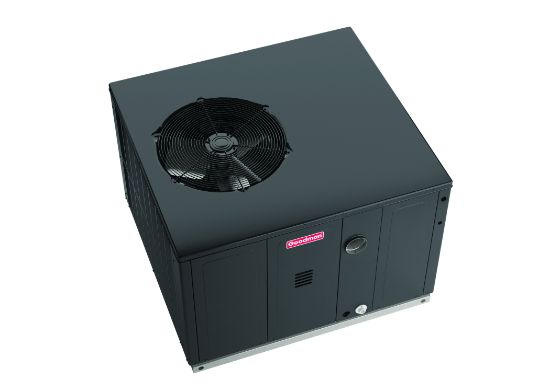

Goodman GPGM56014031 Packaged Gas/Electric/Dual 15.2 SEER2, Two Stage, Downflow/Horizontal, 5 Ton

Product Description

The GOODMAN GPGM56014031 is a packaged gas/electric/dual unit with 15.2 SEER2, two-stage cooling, and a multi-speed ECM. This 5-ton unit meets the 2023 M1 Test Standards and features a high-efficiency two-stage scroll compressor. It is designed for horizontal or downflow applications and includes a copper tube/aluminum fin condenser coil.

• Meets the 2023 M1 Test Standards
• High-efficiency two-stage scroll compressor
• Convertible airflow: horizontal or downflow application

Product Highlights

This Goodman packaged unit offers efficient cooling and heating with versatile installation options and durable construction.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GPGM56014031
• Country of Origin: United States

Technical Specifications

• MPN: GPGM56014031
• Brand: Goodman
• Product Category: Unitary
• Product Class - (PIM): Packaged Gas/Electric/Dual
• System Family: Unitary Packaged System
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Residential-Single Family
• Product Family: GPGM5_32
• Model Efficiency: 15.2 SEER2
• Family Description: Packaged Gas / Electric, Up to 15.2 SEER2, 2 to 5 Tons
• Installation Type: Ducted Mount
• Communication Feature: No
• AFUE: 81 %
• Cooling Capacity - (Nominal): 59000 Btu/H
• EER (HSVTC): 11.5
• EER2 (HSVTC): 11.5
• ENERGY STAR® Certified: No
• Heating Capacity - (Nominal): 135000 Btu/H
• SEER (HSVTC): 15.4
• SEER 2 (HSVTC): 15.4
• Installation Configuration: Downflow/Horizontal
• Produced in US: No
• Product ID: GPGM56014031
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Rated Heating Condition - (Ambient DB): 47 °F
• Rated Heating Condition - (Ambient WB): 43 °F
• Rated Heating Condition - (Room DB): 70 °F
• Rated Heating Condition - (Room WB): 60 °F
• Compressor LRA: 178 A
• Compressor RLA: 27 A
• Control Voltage Conduit Size: 1.25 in
• Evap Motor RLA: 6.9 A
• Indoor Blower FLA: 6.9 A
• Indoor Blower LRA: 0.2 A
• Max Overcurrent Protection: 70 A
• Max Voltage: 253 V
• Min. Circuit Amps: 43.3 A
• Min. Voltage: 197 V
• Outdoor Fan FLA: 2.6 A
• Outdoor Fan LRA: 6 A
• Power Frequency: 60 Hz
• Power Phase: 1 Ph
• Power Supply Conduit Size: 0.875 in
• Power Voltage: 208-230 V
• Total Unit Amps: 36.6 A
• Air Flow Rate (High) - Cooling: 2000 ft³/min
• Air Flow Rate (High) - Heating: 2000 ft³/min
• Compressor Quantitiy: 1.0
• Compressor Stages: Two Stage
• Compressor Type: Scroll
• Condenser Coil Metal Type: Copper
• Condenser Coil Rows: 2.0
• Condenser Fan Blade Count: 3.0
• Condenser Fan Diameter: 22 in
• Condenser Fan RPM: 1000 r/min
• Condenser Fin Density - (Fins Per Inch): 28.0
• Dimensions - (Blower Diameter): 11 in
• Dimensions - (Blower Width): 10 in
• Dimensions - (Evap Wheel Diameter): 11 in
• Dimensions - (Evap Wheel Width): 10 in
• Dimensions - (Unit Depth): 73-3/8 in
• Dimensions - (Unit Height): 42-1/2 in
• Dimensions - (Unit Width): 47-5/8 in
• Evap Coil Face Area (ft²): 9.2
• Evap Coil Metal Type: Copper
• Evap Coil Rows: 4.0
• Evap Fin Density - (Fins Per Inch): 16.0
• Evap Motor RPM: 1200 r/min
• Expansion Device: TXV
• External Static Pressure - (Rated): 0.8
• Heat Exchanger Type: Gas
• Number Of Burners: 6.0
• Number of Speeds: 5
• Orifice Size - (Natural): 0.082 in
• Orifice Size - (Propane): 1.25 mm
• Sound Pressure (High) - Cooling: 78 dBA
• Weight - (Unit): 400 lb
• Cooling Capacity - (Rated): 59000 Btu/H
• Cooling Capacity - (Sensible): 43660 Btu/H
• Heating Capacity - (Max): 135000 Btu/H
• Heating Capacity - (Rated): 135000 Btu/H
• High-Fire Input Capacity: 135000 Btu/H Btu
• High-Fire Output Capacity: 109350 Btu/H
• Low-Fire Input Capacity: 101250 Btu/H
• Low-Fire Output Capacity: 82000 Btu/H
• Tonnage: 5.0
• Condensate Drain Outlet: 3/4 in
• Factory Std. Refrigerant Charge: 100 oz
• Gas Valve Type: Two Stage
• Pipe Size Gas: 1/2 in
• Pipe Size Liquid: 3/8 in
• Refrigerant Type: R-32
• Proposition 65 Label: Yes
• Carton Type: CTN
• Case Qty: 1.0
• Maximum CFM: 2000
• Furnace Efficiency / AFUE: 80%
• AHRI Certificate Number: 209319573
• Depth: 73-3/8 in.
• SEER2 (Efficiency): 15.2
• Width: 47-5/8 in.
• Height: 42-1/2 in.
• Decibel Level (dBA): 78 decibels
• Fuel Type: Natural Gas
• Motor RPM: 1000 r/min
• Electrical: 208 / 230 V. 1 Phase 60 Hz
• Horsepower: 1/3 HP
• Cooling BTU: 58,000 BTU
• Energy Star: Yes
• Heating BTU: 135,000 BTU
• Blower Motor: Multi-Speed
• Configuration: Downflow/Horizontal
• Condenser Stages: Two Stage
• Max Breaker Size: 50 amps
• Liquid Line (OD): 3/8 in.
• Suction Line (OD): 1/2 in.
• Volts: 197/208/230/253V
• AMP: 178;27;6.9;0.2;70;2.6;36.6
• EER2: 11.5
• Energy Star Compliant: No
• Phase: Single Phase
• SEER2: 15.4
• Valve Type: Two Stage
