Goodman GPGM54210031 Packaged Gas/Electric/Dual 15.2 SEER2, Two Stage, Downflow/Horizontal, 3.5 Ton

Product Description

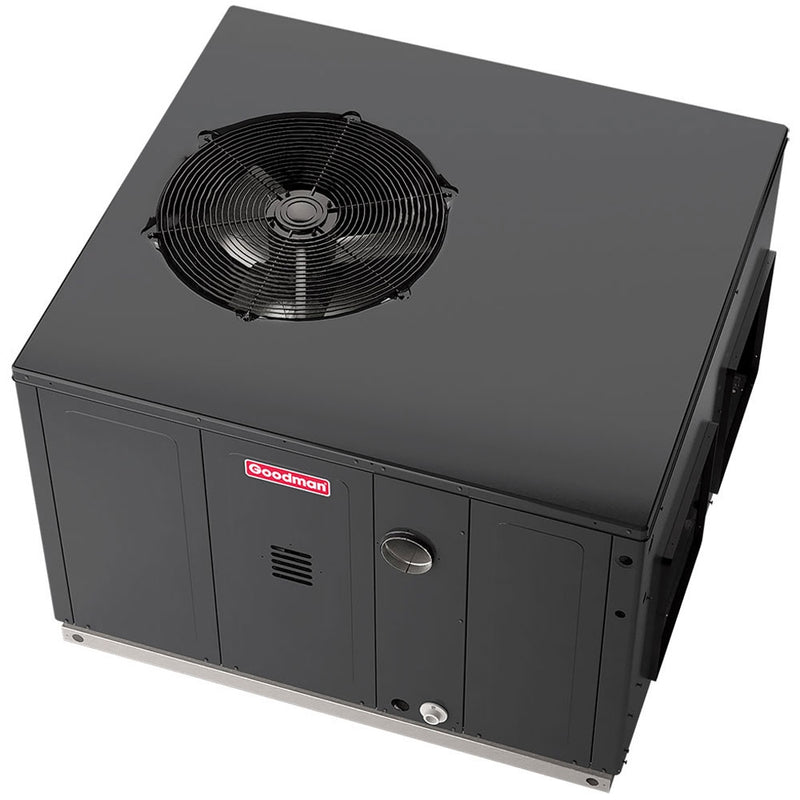

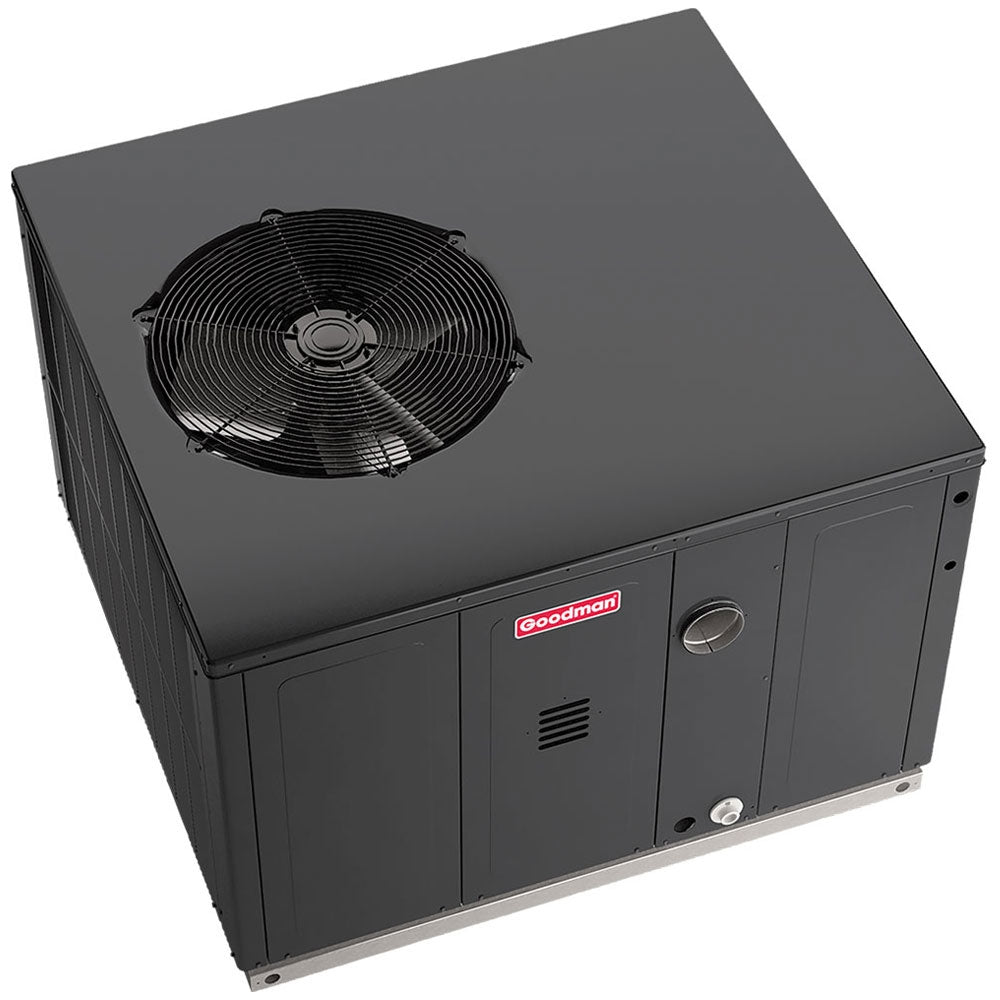

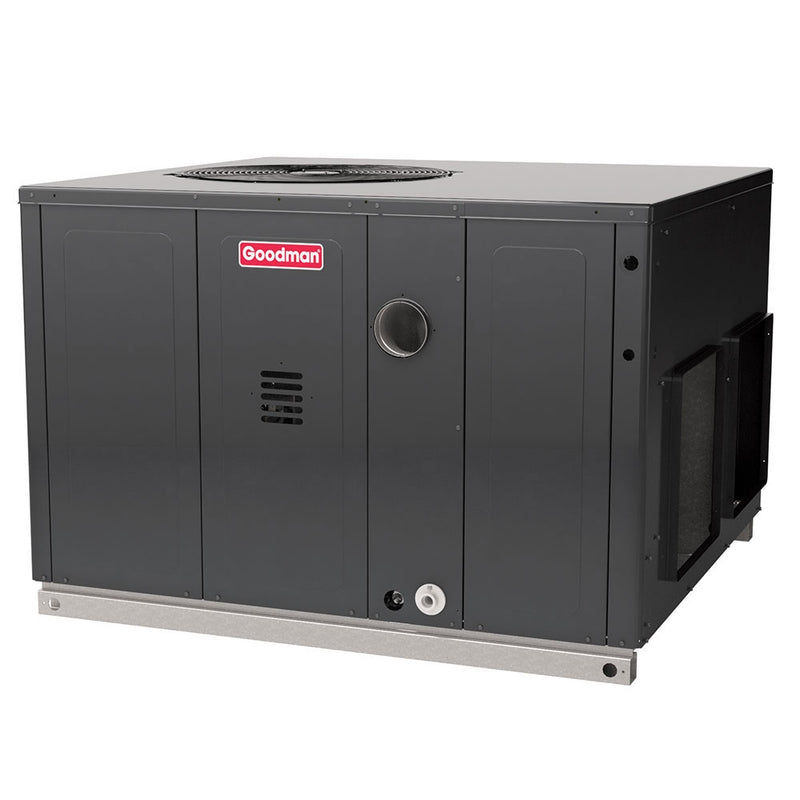

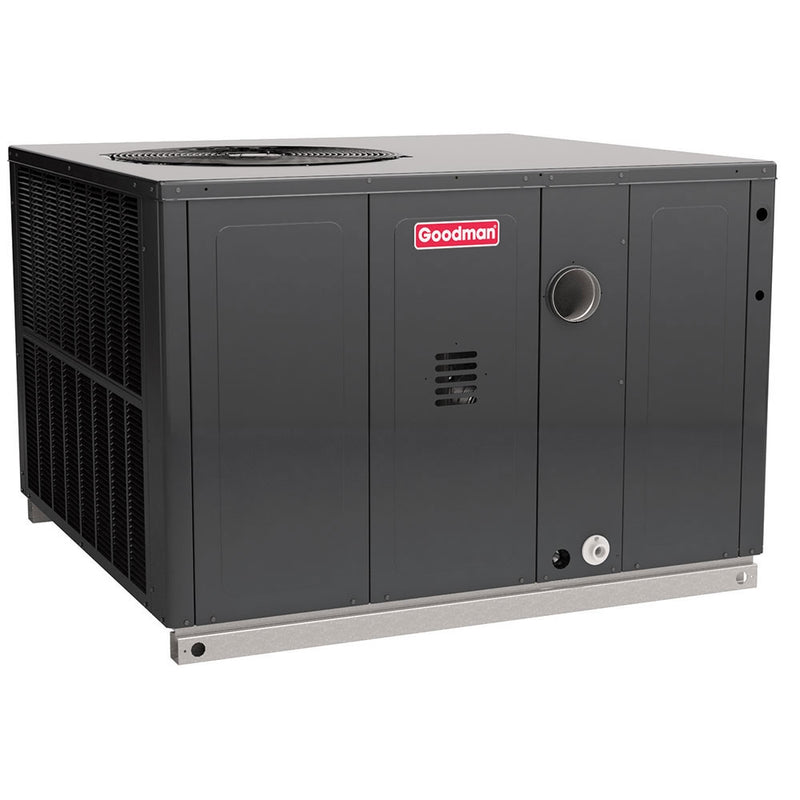

The Goodman GPGM54210031 is a packaged gas/electric/dual unit delivering 15.2 SEER2 cooling efficiency with two-stage operation and gas heating in a 3.5 Ton design. It features a high-efficiency two-stage scroll compressor and a multi-speed ECM blower motor. The unit complies with California Low NOx emission standards and is built in a fully insulated zinc-coated steel cabinet.

• Features a high-efficiency two-stage scroll compressor
• Offers convertible airflow for horizontal or downflow applications
• Includes a multi-speed ECM indoor blower motor

Product Highlights

This Goodman packaged unit provides efficient cooling and heating with a durable design and compliance with low NOx emission standards.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GPGM54210031

Technical Specifications

• MPN: GPGM54210031
• Brand: Goodman
• Product Category: Unitary
• Product Class - (PIM): Packaged Gas/Electric/Dual
• System Family: Unitary Packaged System
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Residential-Single Family
• Product Family: GPGM5_32
• Model Efficiency: 15.2 SEER2
• Installation Type: Ducted Multi-position
• Communication Feature: No
• AFUE: 0.81 %
• AHRI Reference Number: 216574768.0
• Cooling Capacity - (Nominal): 41500 Btu/H
• EER (HSVTC): 11.5
• EER2 (HSVTC): 11.5
• ENERGY STAR® Certified: No
• Heating Capacity - (Nominal): 100000 Btu/H
• SEER (HSVTC): 15.2
• SEER 2 (HSVTC): 15.2
• Installation Configuration: Downflow/Horizontal
• Produced in US: No
• Product ID: GPGM54210031
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Rated Heating Condition - (Ambient DB): 47 °F
• Rated Heating Condition - (Ambient WB): 43 °F
• Rated Heating Condition - (Room DB): 70 °F
• Rated Heating Condition - (Room WB): 60 °F
• Compressor LRA: 126 A
• Compressor RLA: 18 A
• Control Voltage Conduit Size: 1.25 in
• Evap Motor RLA: 5.4 A
• Indoor Blower FLA: 5.4 A
• Indoor Blower LRA: 0.2 A
• Max Overcurrent Protection: 45 A
• Max Voltage: 253 V
• Min. Circuit Amps: 29.8 A
• Min. Voltage: 197 V
• Outdoor Fan FLA: 1.4 A
• Outdoor Fan LRA: 3.2 A
• Power Frequency: 60 Hz
• Power Phase: 1 Ph
• Power Supply Conduit Size: 0.875 in
• Power Voltage: 208-230 V
• Total Unit Amps: 25 A
• Air Flow Rate (High) - Cooling: 1250 ft³/min
• Air Flow Rate (High) - Heating: 1250 ft³/min
• Compressor Quantitiy: 1.0
• Compressor Stages: Two Stage
• Compressor Type: Scroll
• Condenser Coil Metal Type: Copper
• Condenser Coil Rows: 2.0
• Condenser Fan Blade Count: 3.0
• Condenser Fan Diameter: 22 in
• Condenser Fan RPM: 1075 r/min
• Condenser Fin Density - (Fins Per Inch): 16.0
• Dimensions - (Blower Diameter): 11 in
• Dimensions - (Blower Width): 10 in
• Dimensions - (Evap Wheel Diameter): 11 in
• Dimensions - (Evap Wheel Width): 10 in
• Dimensions - (Unit Depth): 51 in
• Dimensions - (Unit Height): 42.5 in
• Dimensions - (Unit Width): 47 in
• ETL Listed: True
• Evap Coil Face Area (ft²): 5.7
• Evap Coil Metal Type: Aluminum
• Evap Coil Rows: 3.0
• Evap Fin Density - (Fins Per Inch): 14.0
• Evap Motor RPM: 1050 r/min
• Expansion Device: TXV
• External Static Pressure - (Rated): 0.8
• Heat Exchanger Type: Gas
• Number Of Burners: 5.0
• Number of Speeds: 5
• Orifice Size - (Natural): 0.082 in
• Orifice Size - (Propane): 1.25 mm
• Sound Pressure (High) - Cooling: 76 dBA
• Weight - (Unit): 380 lb
• Cooling Capacity - (Rated): 41500 Btu/H
• Cooling Capacity - (Sensible): 30040 Btu/H
• Evap Motor Horsepower: 3/4 metric hp
• Heating Capacity - (Max): 100000 Btu/H
• Heating Capacity - (Rated): 100000 Btu/H
• High-Fire Input Capacity: 100000 Btu/H Btu
• High-Fire Output Capacity: 81000 Btu/H
• Low-Fire Input Capacity: 75000 Btu/H
• Low-Fire Output Capacity: 60750 Btu/H
• Tonnage: 3.5
• Condensate Drain Outlet: 3/4 in
• Factory Std. Refrigerant Charge: 118 oz
• Gas Valve Type: Two Stage
• Pipe Size Gas: 1/2 in
• Pipe Size Liquid: 3/8 in
• Refrigerant Type: R-32
• Proposition 65 Label: Yes
• Voltage/Phase/Hz: 208-230 V / 1 Ph / 60 Hz
• Max Breaker Size: 45 A
• Min. Breaker Size: 29.8 A
• Cooling BTU: 41500 Btu/H
• Heating BTU: 100000 Btu/H
• Maximum CFM: 1250 ft³/min
• Decibel Level (dBA): 76 dBA
• Liquid Line: 3/8 in
• Suction Line: 1/2 in
• Height: 42.5 in
• Width: 47 in
• Depth: 51 in
