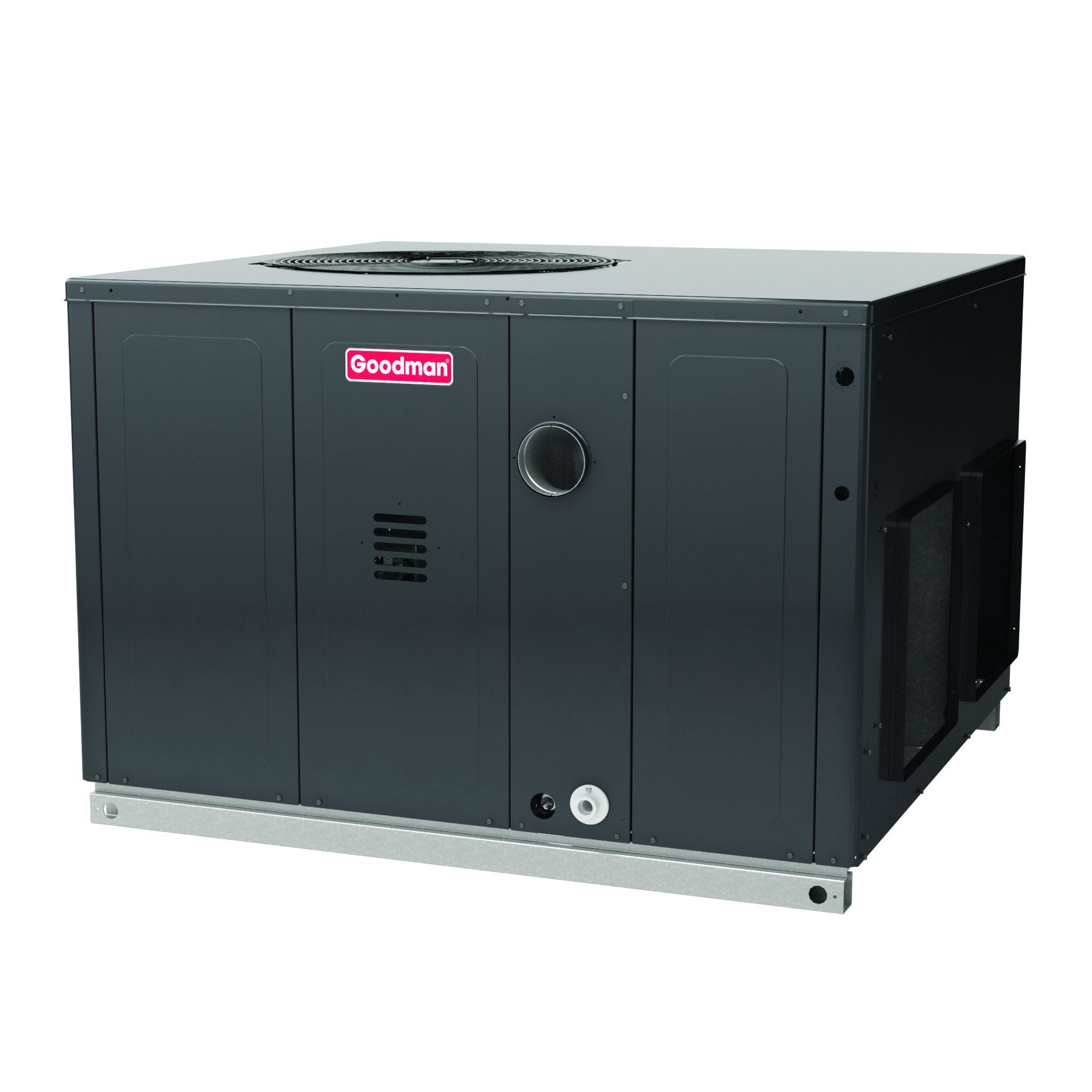

Goodman GPGM53608031 Packaged Gas/Electric/Dual 15.2 SEER2, Two Stage, Downflow/Horizontal, 3 Ton

Product Description

The Goodman GPGM53608031 is a packaged gas/electric/dual system with 15.2 SEER2, two-stage cooling, and a multi-speed ECM. This 3-ton unit meets the 2023 M1 Test Standards. It features a fully insulated, heavy-gauge, zinc-coated steel cabinet with a UV-resistant grey powder-paint finish and aluminum foil-facing internal insulation reinforced with fiberglass scrim. Designed for horizontal or downflow applications.

• High-efficiency two-stage scroll compressor
• Convertible airflow: horizontal or downflow application
• Multi-speed ECM indoor blower motor

Product Highlights

This Goodman packaged unit combines gas-fired furnace, air conditioning condenser, evaporator coil, and variable-speed ECM blower into a single unit.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GPGM53608031

Technical Specifications

• MPN: GPGM53608031
• Brand: Goodman
• Product Category: Unitary
• Product Class - (PIM): Packaged Gas/Electric/Dual
• System Family: Unitary Packaged System
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Residential-Single Family
• Product Family: GPGM5_32
• Model Efficiency: 15.2 SEER2
• Family Description: Packaged Gas / Electric, Up to 15.2 SEER2, 2 to 5 Tons
• Installation Type: Ducted Multi-position
• Communication Feature: No
• AFUE: 81 %
• AHRI Reference Number: 216574767.0
• Cooling Capacity - (Nominal): 35600 Btu/H
• EER (HSVTC): 11.5
• EER2 (HSVTC): 11.5
• ENERGY STAR® Certified: No
• Heating Capacity - (Nominal): 80000 Btu/H
• SEER (HSVTC): 15.2
• SEER 2 (HSVTC): 15.2
• Installation Configuration: Downflow/Horizontal
• Produced in US: No
• Product ID: GPGM53608031
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Rated Heating Condition - (Ambient DB): 47 °F
• Rated Heating Condition - (Ambient WB): 43 °F
• Rated Heating Condition - (Room DB): 70 °F
• Rated Heating Condition - (Room WB): 60 °F
• Compressor LRA: 91 A
• Compressor RLA: 15 A
• Control Voltage Conduit Size: 1.25 in
• Evap Motor RLA: 5.4 A
• Indoor Blower FLA: 5.4 A
• Indoor Blower LRA: 0.2 A
• Max Overcurrent Protection: 35 A
• Max Voltage: 253 V
• Min. Circuit Amps: 25 A
• Min. Voltage: 197 V
• Outdoor Fan FLA: 1.4 A
• Outdoor Fan LRA: 3.2 A
• Power Frequency: 60 Hz
• Power Phase: 1 Ph
• Power Supply Conduit Size: 0.875 in
• Power Voltage: 208-230 V
• Total Unit Amps: 21.4 A
• Air Flow Rate (High) - Cooling: 1200 ft³/min
• Air Flow Rate (High) - Heating: 1200 ft³/min
• Compressor Quantitiy: 1.0
• Compressor Stages: Two Stage
• Compressor Type: Scroll
• Condenser Coil Metal Type: Copper
• Condenser Coil Rows: 2.0
• Condenser Fan Blade Count: 3.0
• Condenser Fan Diameter: 22 in
• Condenser Fan RPM: 1075 r/min
• Condenser Fin Density - (Fins Per Inch): 27.0
• Dimensions - (Blower Diameter): 11 in
• Dimensions - (Blower Width): 10 in
• Dimensions - (Evap Wheel Diameter): 11 in
• Dimensions - (Evap Wheel Width): 10 in
• Dimensions - (Unit Depth): 51 in
• Dimensions - (Unit Height): 42-1/2 in
• Dimensions - (Unit Width): 47 in
• Evap Coil Face Area (ft²): 5.7
• Evap Coil Metal Type: Aluminum
• Evap Coil Rows: 3.0
• Evap Fin Density - (Fins Per Inch): 14.0
• Evap Motor RPM: 1050 r/min
• Expansion Device: TXV
• External Static Pressure - (Rated): 0.8
• Heat Exchanger Type: Gas
• Number Of Burners: 4.0
• Number of Speeds: 5
• Orifice Size - (Natural): 0.082 in
• Orifice Size - (Propane): 1.25 mm
• Sound Pressure (High) - Cooling: 76 dBA
• Weight - (Unit): 380 lb
• Condenser Fan Horsepower: 1/4 metric hp
• Cooling Capacity - (Rated): 35600 Btu/H
• Cooling Capacity - (Sensible): 28550 Btu/H
• Evap Motor Horsepower: 3/4 metric hp
• Heating Capacity - (Max): 80000 Btu/H
• Heating Capacity - (Rated): 80000 Btu/H
• High-Fire Input Capacity: 80000 Btu/H Btu
• High-Fire Output Capacity: 64800 Btu/H
• Low-Fire Input Capacity: 60000 Btu/H
• Low-Fire Output Capacity: 48600 Btu/H
• Tonnage: 3.0
• Condensate Drain Outlet: 3/4 in
• Factory Std. Refrigerant Charge: 80 oz
• Gas Valve Type: Two Stage
• Pipe Size Gas: 1/2 in
• Pipe Size Liquid: 3/8 in
• Refrigerant Type: R-32
• Proposition 65 Label: Yes
• Carton Type: CTN
• Case Qty: 1.0
• Dimensions - (Case Depth): 52.00 in
• Dimensions - (Case Height): 44.00 in
• Dimensions - (Case Width): 48.00 in
• Dimensions - (Shipping Unit Depth): 52.00 in
• Dimensions - (Shipping Unit Height): 44.00 in
• Dimensions - (Shipping Unit Width): 48.00 in
• Shipping Volume - (Unit): 109824.000 in³
• Truck Factor: 0.0
• Volume - (Case): 109824.000 in³
• Weight - (Case): 463.000 lb
• Weight - (Shipping Unit): 463.000 lb
• Type: Gas/Electric Packaged Unit
• Product Line: GPGM5
• Operating Mode: Heating and Cooling
• Fuel Type: Natural Gas
• Modulating/Staging: Two Stage
• Blower Motor Type: Variable-Speed
• Motor Type: ECM
• Configuration: Downflow/Horizontal
• Installation Location: Outdoor
• Gas Conversion Kit: Available
• DOE Regional Compliance: Nationwide (Except CA)
• Capacity: 3.0 Tons
• Cooling Capacity: 35600 BTU
• Heating Capacity: 80000 BTU
• Maximum Air Flow: 1440 CFM
• Minimum Air Flow: 1110 CFM
• Maximum Sound Level: 76 dB
• Low NOx Emissions: Yes
• Voltage: 208/230 Volts
• Phase: 1
• Recommended Breaker Size: 35 Amps
• Product Height: 42 1/2 Inches
• Product Width: 47 Inches
• Product Depth: 51 Inches
• Product Weight: 380 Pounds
• Shipping Weight: 410 Pounds
• UL Listed: Yes
• Energy Star Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• SEER: 16
• Cooling Stage(s): 2
• Compressor Stage: Two
• Blower: Variable Speed
• Electrical Phase(s): 1-Phase
• Amp(s): 35
