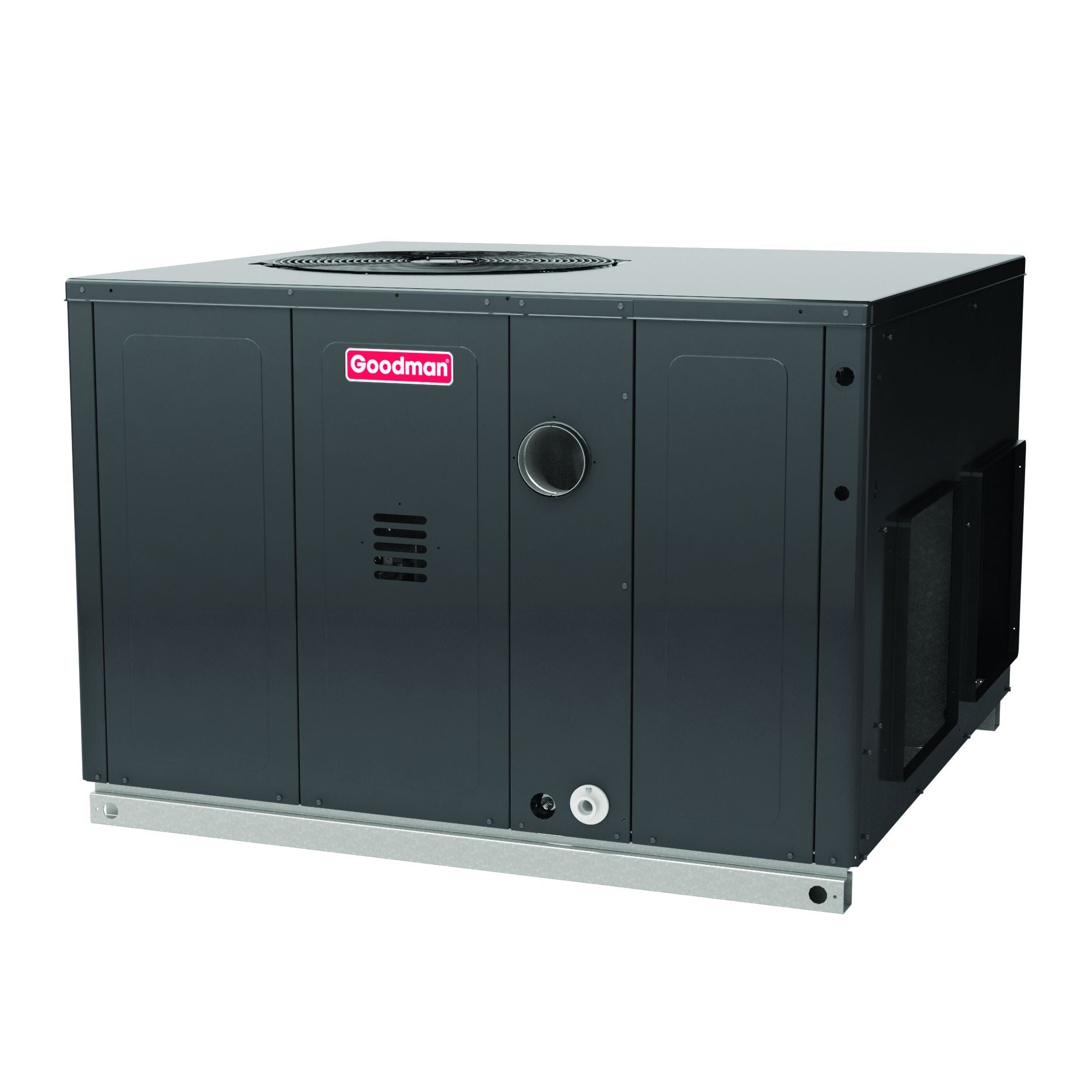

Goodman GPGM34208031 Packaged Gas/Electric/Dual 13.4 SEER2, Single Stage, Downflow/Horizontal, 3.5 Ton

Product Description

The Goodman GPGM34208031 is a downflow/horizontal packaged gas/electric/dual unit with 13.4 SEER2, single-stage cooling, and a multi-speed ECM. This 3.5-ton unit combines a gas-fired furnace, air conditioning condenser, evaporator coil, and blower into one. It features a corrosion-resistant aluminized steel heat exchanger and an all-aluminum evaporator coil for efficient heat transfer.

• Features an energy-efficient scroll compressor.
• Equipped with a multi-speed ECM indoor blower motor.
• Offers convertible airflow for horizontal or downflow applications.

Product Highlights

This Goodman packaged unit provides an all-in-one comfort solution with efficient heating and cooling. It is designed for easy installation and long-lasting performance.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GPGM34208031

Technical Specifications

• Model Efficiency: 13.4 SEER2
• AFUE: 81 %
• Cooling Capacity - (Nominal): 39000 Btu/H
• Heating Capacity - (Nominal): 80000 Btu/H
• EER (HSVTC): 10.6
• EER2 (HSVTC): 10.6
• SEER (HSVTC): 13.4
• SEER 2 (HSVTC): 13.4
• Installation Type: Ducted Multi-position
• Installation Configuration: Downflow/Horizontal
• Compressor Type: Scroll
• Compressor Stages: Single Stage
• Condenser Coil Metal Type: Copper
• Condenser Coil Rows: 1.0
• Condenser Fan Diameter: 22 in
• Condenser Fan RPM: 1075 r/min
• Condenser Fin Density - (Fins Per Inch): 24.0
• Evap Coil Metal Type: Aluminum
• Evap Coil Rows: 4.0
• Evap Fin Density - (Fins Per Inch): 14.0
• Evap Motor RPM: 1050 r/min
• Expansion Device: Orifice
• Heat Exchanger Type: Gas
• Number Of Burners: 4.0
• Number of Speeds: 5
• Orifice Size - (Natural): 0.082 in
• Orifice Size - (Propane): 1.25 mm
• Sound Pressure (High) - Cooling: 78 dBA
• Cooling Capacity - (Rated): 39000 Btu/H
• Cooling Capacity - (Sensible): 29621 Btu/H
• Heating Capacity - (Rated): 80000 Btu/H
• Heating Capacity - (Max): 64800 Btu/H
• High-Fire Input Capacity: 80000 Btu/H Btu
• High-Fire Output Capacity: 64800 Btu/H
• Low-Fire Input Capacity: 80000 Btu/H
• Low-Fire Output Capacity: 64800 Btu/H
• Tonnage: 3.5
• Refrigerant Type: R-32
• Power Voltage: 208-230 V
• Power Frequency: 60 Hz
• Power Phase: 1 Ph
• Air Flow Rate (High) - Cooling: 1250 ft³/min
• Air Flow Rate (High) - Heating: 1250 ft³/min
• Dimensions - (Unit Depth): 51 in
• Dimensions - (Unit Height): 42-1/2 in
• Dimensions - (Unit Width): 47 in
• Dimensions - (Blower Diameter): 11 in
• Dimensions - (Blower Width): 10 in
• Dimensions - (Evap Wheel Diameter): 11 in
• Dimensions - (Evap Wheel Width): 10 in
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Rated Heating Condition - (Ambient DB): 47 °F
• Rated Heating Condition - (Ambient WB): 43 °F
• Rated Heating Condition - (Room DB): 70 °F
• Rated Heating Condition - (Room WB): 60 °F
• Compressor LRA: 112 A
• Compressor RLA: 14.4 A
• Evap Motor RLA: 5.4 A
• Indoor Blower FLA: 5.4 A
• Indoor Blower LRA: 0.2 A
• Outdoor Fan FLA: 1.4 A
• Outdoor Fan LRA: 3.2 A
• Min. Circuit Amps: 24.8 A
• Max Overcurrent Protection: 35 A
• Min. Voltage: 197 V
• Max Voltage: 253 V
• Total Unit Amps: 21.2 A
• MPN: GPGM34208031
• Brand: GOODMAN
• Type: Gas/Electric Packaged Unit
• Product Line: GPGM3
• Product Category: Packaged HVAC Unit
• Operating Mode: Heating and Cooling
• Fuel Type: Natural Gas
• Modulating/Staging: Single Stage
• Blower Motor Type: Multi-Speed
• Motor Type: ECM
• Configuration: Downflow/Horizontal
• Installation Location: Outdoor
• Gas Conversion Kit: Available
• DOE Regional Compliance: Nationwide
• Cooling Capacity: 39000 BTU
• Heating Capacity: 80000 BTU
• Maximum Air Flow: 1637 CFM
• Minimum Air Flow: 1304 CFM
• Maximum Sound Level: 78 dB
• Low NOx Emissions: Yes
• SEER2: 13.4
• EER2: 10.6
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 24.8 Amps
• Recommended Breaker Size: 35 Amps
• Product Height: 42 1/2 Inches
• Product Width: 47 Inches
• Product Depth: 51 Inches
• Product Weight: 460 Pounds
• Shipping Weight: 470 Pounds
• UL Listed: Yes
• Energy Star Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• AHRI Reference Number: 216574791
• Cooling Stage(s): 1
• Compressor Stage: Single
• Electrical Phase(s): 1-Phase
