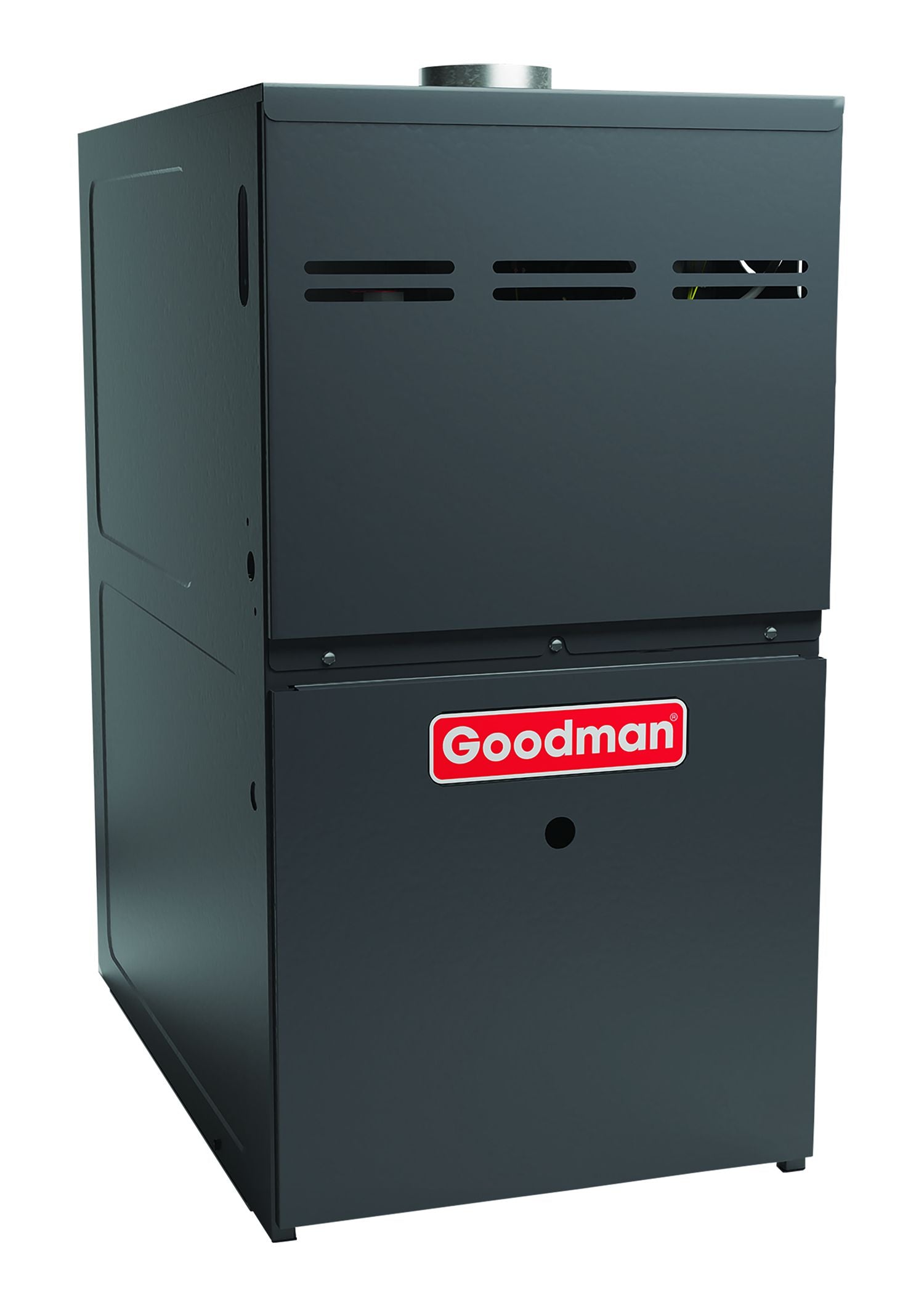

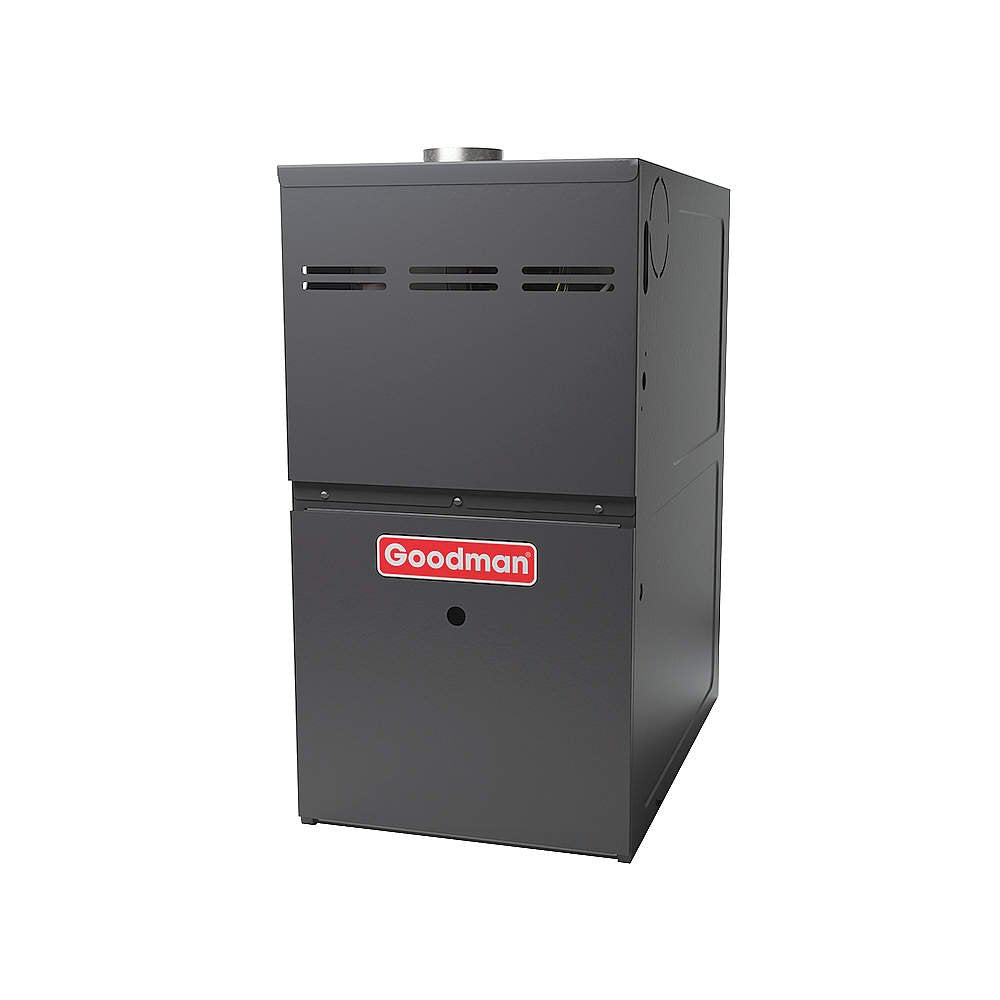

Goodman GMS80805CN Gas Furnace 80000 BTU 5 Ton

Product Description

The Goodman GMS80805CN gas furnace provides effective home heating at an affordable price. This unit operates at 80% AFUE and 80000 BTU. Designed for multi-position installation: upflow, horizontal left or right. The furnace uses a multi-speed blower motor and sound-isolated blower assembly to reduce noise.

• Heavy-duty aluminized-steel tubular heat exchanger
• Silicon Nitride igniter
• Single-Stage gas Valve

Product Highlights

The Goodman GMS80805CN Gas Furnace provides efficient home heating with a multi-speed blower motor and aluminized-steel heat exchanger.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GMS80805CN
• Country of Origin: USA

Technical Specifications

• AFUE: 80 %
• Class: Gas Furnace
• Family: GMS8
• Category: Gas Furnace
• Unit Depth: 28-1/2 in
• Unit Width: 21 in
• Power Phase: 1 Ph
• Unit Height: 33-1/2 in
• Min. Circuit: 8.8 A
• Power Voltage: 115 V
• Power Frequency: 60 Hz
• Cabinet Features: 1. Multi-position installation: upflow, horizontal left or right 2. Convenient left or right connection for gas and electrical service 3. Cabinet air leakage (Qleak) less than or equal to 2% 4. Foil faced insulated heat exchanger section 5. Bottom or side return air applications 6. Heavy-gage steel cabinet with durable finish
• Model Efficiency: 0.8
• Motor Speed Type: PSC
• Family Description: Multi-Position, Multi-Speed Gas Furnaces 80% AFU
• Prop65 Label Required: TRUE
• High-Fire Input Capacity: 80000 Btu
• High-Fire Output Capacity: 64,000
• Finish: Painted
• Item Model Number: GMS80805CN
• Part Number: GMS80805CN
• System Family: Unitary Split System
• Function Category: Heating Only
• Product Type: Equipment
• Unit Type: Indoor
• Market Type: Residential-Single Family
• Product Family: GMS8
• Series Name: GMS8
• Installation Type: Ducted
• Installation Configuration: Upflow/Horizontal
• Product ID: GMS80805CN
• Temperature Rise Range High Fire: 35-65 °F
• Current Type: AC
• Max Overcurrent Protection: 15 A
• Dimensions - (Blower Diameter): 10 in
• Dimensions - (Blower Width): 10 in
• Heat Exchanger Type: Gas
• Vent Diameter: 4 in
• Gas Valve Type: Single Stage
• Universal Product Code (UPC): 663051543805.0
• Heat Exchanger: Heavy-duty aluminized-steel, dual-diameter tubular
• Igniter: Durable Hot-surface
• Draft: Quiet, single-speed induced
• BTU: 80,000
• Burner: Single-Stage
• Blower: Multi-Speed
• Installation: Upflow/Horizontal
• Is Discontinued By Manufacturer: No
• Department: HVAC
• Fuel Type: Natural Gas
• Vent Type: Chimney Vent
• Modulating/Staging: Single Stage
• Blower Motor Type: PSC Multi-Speed
• Gas Conversion Kit: Available
• DOE Regional Compliance: Nationwide (Except CA)
• Heating BTU: 80000
• Maximum Air Flow: 2000 CFM
• Low NOx Emissions: No
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 12.5 Amps
• Recommended Breaker Size: 15 Amps
• Flue Connection Size: 4 Inches
• Cabinet Width: 21 Inches
• Product Height: 33 3/8 Inches
• Product Width: 21 Inches
• Product Depth: 28 3/4 Inches
• Product Weight: 114 Pounds
• BtuH Input: 80000
• BtuH Output: 64,000
• CFM @ 0.5" ESP: 1,960
• Depth: 28"
• Height (Inches): 33 3/8
• LoNox: No
• Motor Type: PSC
• Nom. CFM: 2,000
• Nom. Tons: 5
• Stages: Single-Stage
• Width (Inches): 21
• Wt. Lbs.: 114
• Heating Capacity Input: 80000 BTUH
• Efficiency: 80%
• Capacity in Ton: 5 ton
• Horse Power: 1/2 HP
• CFM: 2000 Max. cfm at 0.5 inch ESP
• Temperature Rise: 35 to 65 Deg F
• No. of Speeds: 4
• Speed: 1075 rpm
• No. of Burners: 4
• Material: Aluminized Steel Heat Exchanger
• Blower Size: 10 inch x 10 inch
• Construction: Single Stage
• Warm Air Supply Dimension: 23 inch x 15 inch
• Electrical Supply: 12.5A
• Max. Overcurrent Protection: 15A
• Voltage: 115V
• Electrical Phase(s): 1-Phase
• Amp(s): 15
