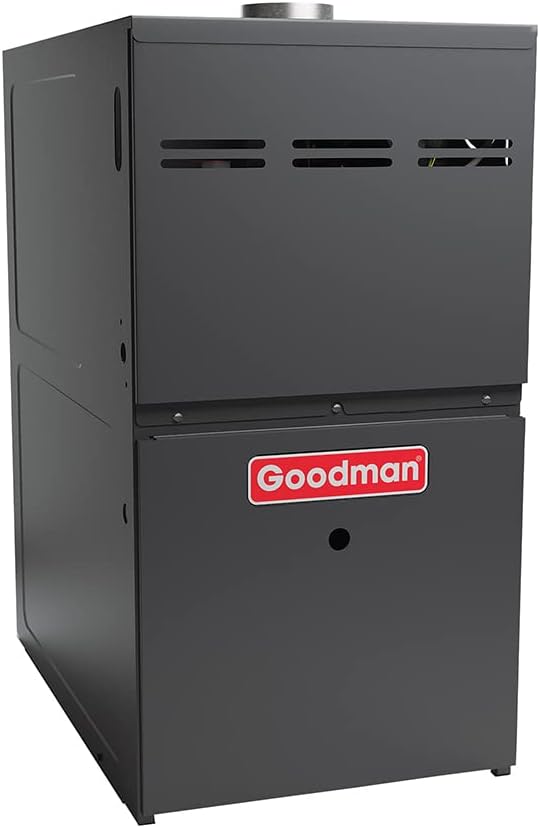

Goodman GMS80403AN Gas Furnace 40000 BTU

Product Description

The GOODMAN GMS80403AN gas furnace features an 80% AFUE rating and a single-stage gas valve. Designed for upflow or horizontal installation, this unit provides reliable heating. The heavy-duty aluminized-steel tubular heat exchanger ensures efficient heat transfer and lasting performance. Ideal for residential use, this furnace offers a blend of quality and affordability.

• Heavy-duty aluminized-steel tubular heat exchanger
• Silicon Nitride igniter
• Single-Stage gas Valve

Product Highlights

The Goodman GMS80403AN is a reliable and efficient gas furnace designed for home heating, offering a blend of performance and value.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GMS80403AN

Technical Specifications

• AFUE: 80 %
• Class: Gas Furnace
• Family: GMS8
• Category: Gas Furnace
• Keywords: GMS80403AN
• Unit Type: Indoor
• Unit Depth: 28.5
• Unit Width: 14
• Power Phase: 1
• Unit Height: 33.5
• Min. Circuit: 4.8
• Power Voltage: 115 VAC
• Power Frequency: 60 Hz
• Model Efficiency: 0.8
• Motor Speed Type: PSC
• High-Fire Input Capacity: 40000 BTU
• High-Fire Output Capacity: 32,000 BTU
• Brand: Goodman
• Item Model Number: GMS80403AN
• Material: Aluminized Steel Heat Exchanger
• Fuel Type: Natural Gas
• Heating Method: Convection
• Gas Valve: Single-stage
• Air Flow Direction: Upflow / Horizontal
• Approvals: ETL Listed
• BTU Input: 40,000
• BTU Output: 32,000
• Blower Motor HP: 1/3
• Blower Motor Type: PSC (Permanent Split Capacitor)
• CFM: 1200 Max. cfm at 0.5 inch ESP
• Cabinet Width: 14
• Cycle/Hertz: 60 Hz
• Energy Star Rated: No
• Equipment Type: Furnace
• FER Compliant: No
• Furnace Type: Gas
• Gas Connection Size: 1/2"
• Gas Connection Type: NPT
• Ignition Type: Hot Surface (HSI)
• Includes Filter Rack: No
• Maximum Overcurrent Protection (MOCP): 15
• OPT Code: GMS80403AN
• Phase: Single
• Product Family: GMS8
• Prop 65: Yes
• Stages Heating: 1
• Heating Capacity Input: 40000 BTUH
• Efficiency: 80%
• Capacity in Ton: 3 ton
• Horse Power: 1/3 HP
• Temperature Rise: 25 to 55 Deg F
• Vent Diameter: 4 inch
• No. of Speeds: 4
• Speed: 1075 rpm
• No. of Burners: 2
• Construction: Single Stage
• Electrical Supply: 8.1A
• Max. Overcurrent Protection: 15A
