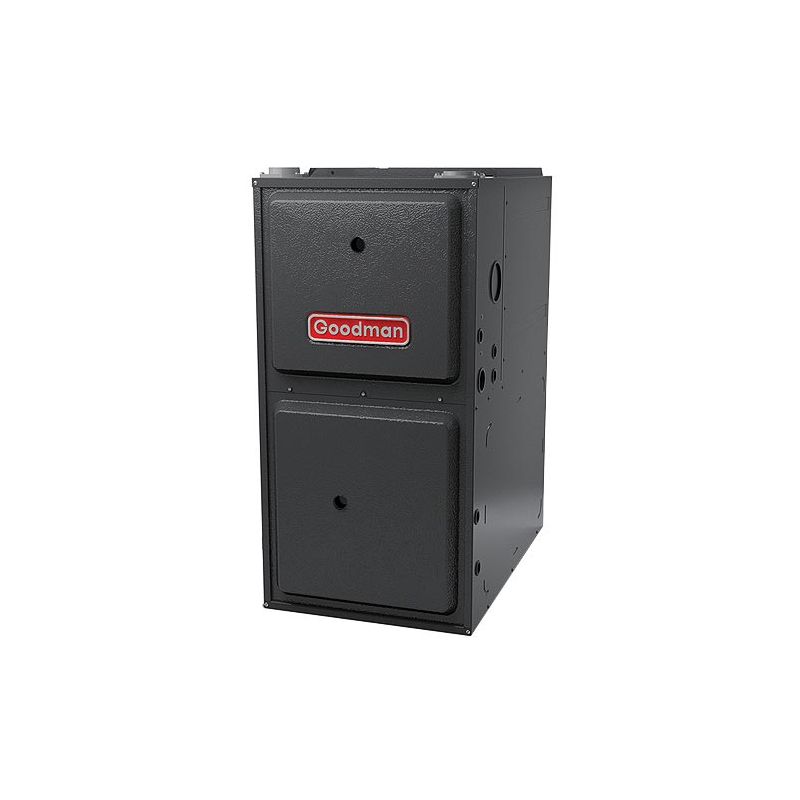

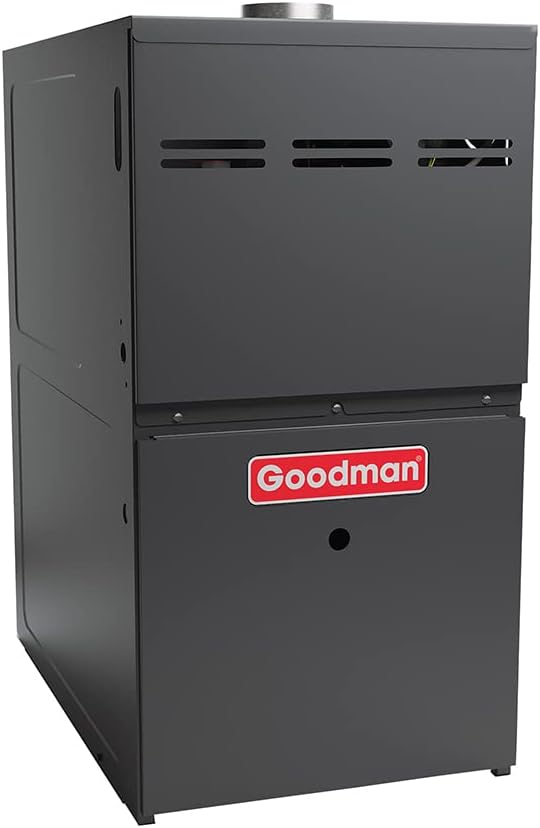

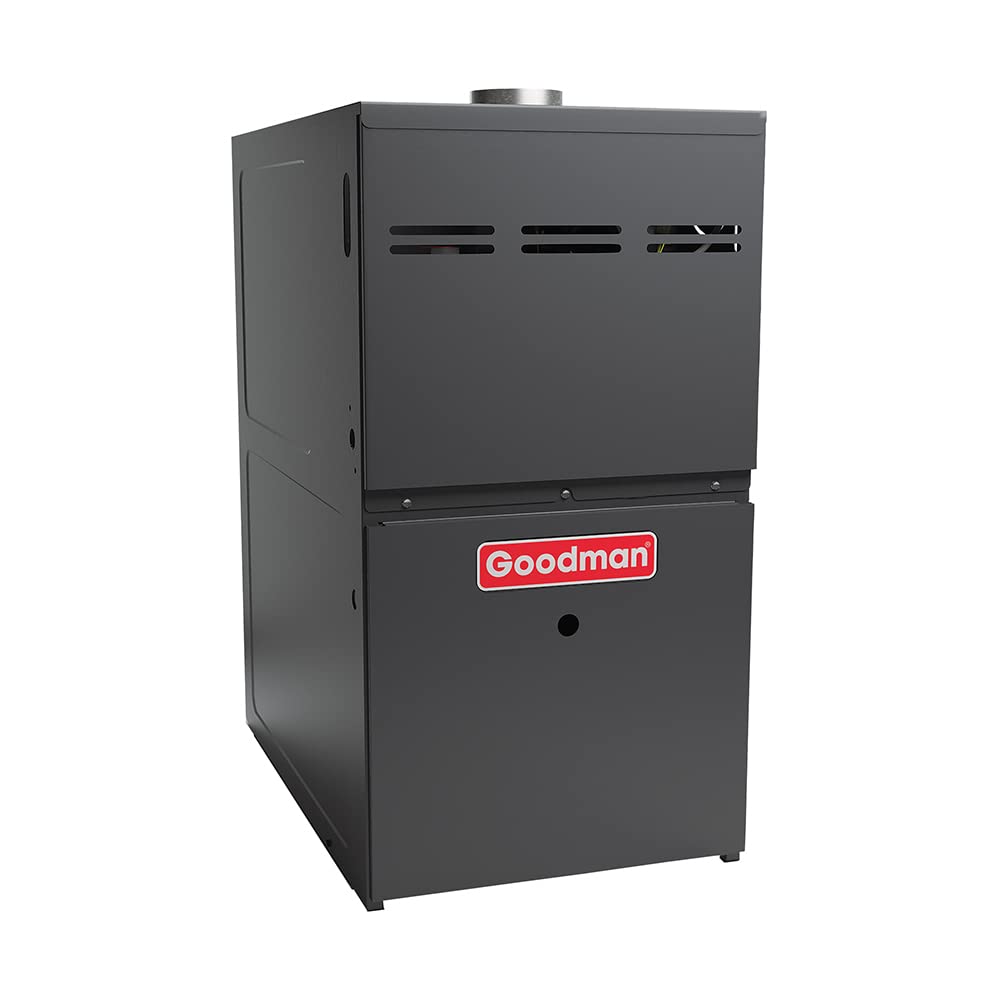

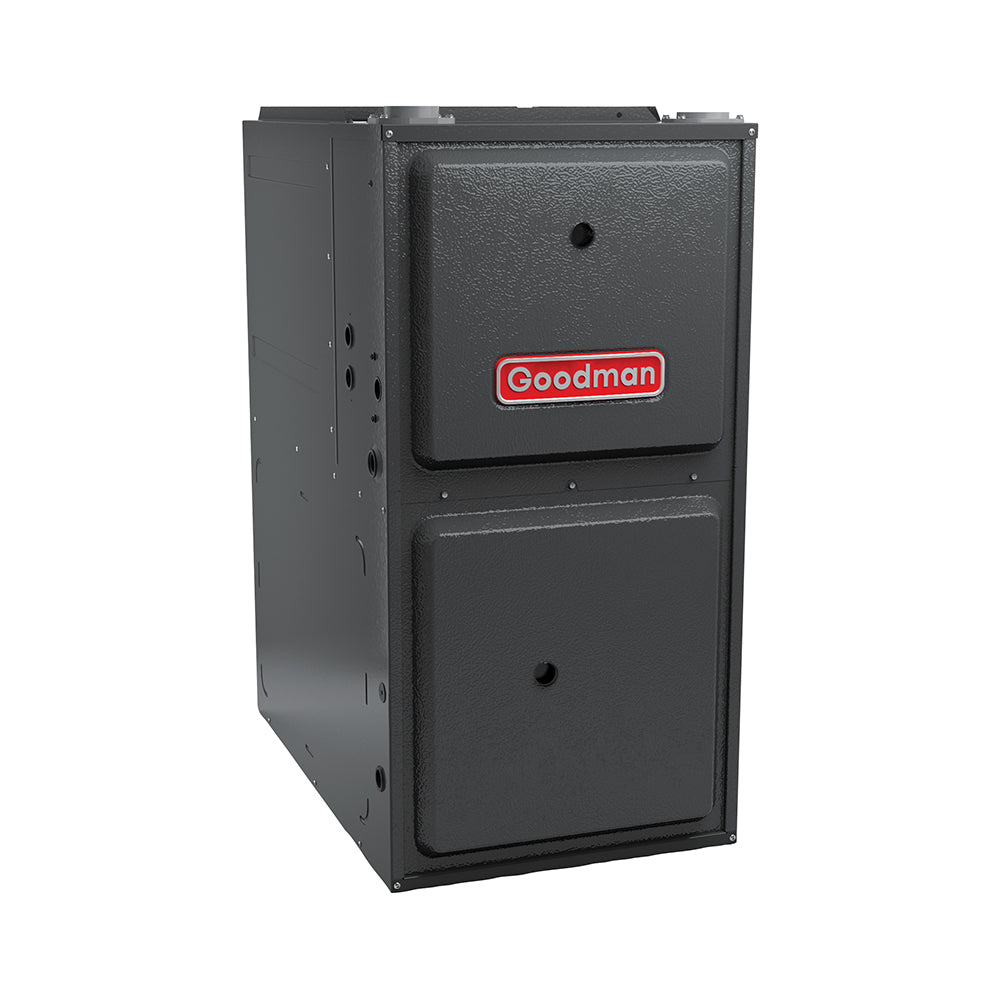

Goodman GMES960805CN Gas Furnace 80000 BTU

Product Description

The GOODMAN GMES960805CN gas furnace features high-quality construction and efficient operation. This single-stage, multi-speed ECM gas furnace is designed for upflow or horizontal installation. It features a heavy-duty aluminized-steel tubular heat exchanger and a stainless-steel sloped secondary heat exchanger. The furnace operates at 96% AFUE and 80000 BTU/H.

• Equipped with a multi-speed ECM blower motor for efficient air circulation.
• Features a self-diagnostic control board with constant memory.
• Certified for direct vent (2-pipe) or non-direct vent (1 pipe).

Product Highlights

The GMES960805CN gas furnace provides efficient and reliable heating with its robust design and multiple installation options, suitable for residential use.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GMES960805CN
• Country of Origin: USA

Technical Specifications

• AFUE: 96 %
• Class: Gas Furnace
• Family: GMES96
• Category: Gas Furnace
• Keywords: GMES960805CN
• Unit Type: Indoor
• Unit Depth: 29 in
• Unit Width: 21 in
• Power Phase: 1 Ph
• Unit Height: 34-1/2 in
• Unit Weight: 139 lb
• Min. Circuit: 16.9 A
• Power Voltage: 115 V
• Power Frequency: 60 Hz
• Model Efficiency: 0.96
• Motor Speed Type: Multi Speed ECM
• Product ID Bar Code: GMES960805CN
• Prop65 Label Required: TRUE
• High-Fire Input Capacity: 80000 Btu
• Airflow Rate High Heating: 1836 ft³/min
• High-Fire Output Capacity: 76880 BTU
• Family Description: Single-Stage Multi-Speed ECM Gas Furnace Up to 96% AFUE
• Installation Type: Ducted
• Communication Feature: No
• FER Compliant: Yes
• Universal Product Code (UPC): 663051590694.0
• Item Stocking Unit of Measure (UOM): EA
• Country of Origin: USA
• US HTS Code: 7322.90.0015
• Canadian HTS Code: 7322.90.00.21
• AHRI Reference Number: 203400983.0
• ENERGY STAR® Certified: Yes
• Installation Configuration: Upflow/Horizontal
• Produced in US: Yes
• Gas Valve Type: Single Stage
• Vent Diameter: 2 in;3 in
• Filter Quantity: 1.0
• Heat Exchanger Type: Gas
• Number Of Burners: 4.0
• Dimensions - (Blower Diameter): 11 in
• Dimensions - (Blower Width): 10 in
• Blower Motor RPM: 1200 r/min
• Max Overcurrent Protection: 20.0 A
• Temperature Rise Range High Fire: 25-55 °F
• Air Flow Rate (Low) - Heating: 485 ft³/min
• Minimum Clearances to Combustible Materials: 1 ft
• ANSI Certifed: Yes
• ETL Listed: Yes
• Dimensions - (Case Depth): 30.00 in
• Dimensions - (Case Height): 38.50 in
• Dimensions - (Case Width): 22.00 in
• Dimensions - (Pallet Depth): 60.00 in
• Dimensions - (Pallet Height): 38.50 in
• Dimensions - (Pallet Width): 44.00 in
• Dimensions - (Shipping Unit Depth): 30.00 in
• Dimensions - (Shipping Unit Height): 38.50 in
• Dimensions - (Shipping Unit Width): 22.00 in
• Shipping Volume - (Unit): 25410.000 in³
• Volume - (Case): 25410.000 in³
• Weight - (Case): 139.000 lb
• Weight - (Shipping Unit): 139.000 lb
• Heating BTU: 80,000
• Blower Motor: Multi Speed - ECM
• Maximum CFM: 2000
• Flue Location: Right
• Electrical: 115 V. 1 Phase 60 Hz
• Burner Stages: Single
• Fuel Type: Low Nox
• Height: 34.5"
• Width: 21"
• Depth: 28.75"
• Vent Type: Direct Vent
• Modulating/Staging: Single Stage
• Blower Motor Type: ECM Multi-Speed
• Gas Conversion Kit: Available
• DOE Regional Compliance: Nationwide (Except CA)
• High Fire Input: 80000 BTU
• Ultra Low NOx Emissions: No
• Low NOx Emissions: Yes
• Minimum Circuit Ampacity: 11.7 Amps
• Recommended Breaker Size: 15 Amps
• Flue Connection Size: 2 or 3 Inches
• Cabinet Width: 21"
• Product Height: 34 1/2 Inches
• Product Depth: 29 Inches
• Product Weight: 139 Pounds
• Shipping Weight: 139 Pounds
• ISO Certified: Yes
• Parts Warranty: 10 Years
• Heat Exchanger Warranty: Lifetime Years
• AFUE Rating: 96 %
• Amperage Rating: 11.7 A
• Blower Size: 11 in Dia x 10 in W
• Cabinet Dimensions: 21 in W x 28-7/8 in D x 34-1/2 in H
• CFM Rating: 2000 cfm
• Configuration: Upflow/Horizontal
• Connection Type: 1/2 in FPT Gas
• Frequency Rating: 60 Hz
• Fuse Rating: 15 A
• HP Rating: 1 hp at 1075 rpm
• Input BTU Rating: 80000 Btu/hr
• Material: Heavy Gauge Steel
• Model: GMES96
• Motor Type: Upflow/Horizontal
• Number of Speeds: 5
• Phase: 1 ph
• Temperature Rise: 25 to 55 deg F
• Tonnage: 5 ton
• Vent Size: 2" - 3"
• Voltage Rating: 115 VAC
• Airflow Direction: Upflow/Horizontal
• BtuH Input: 80000
• BtuH Output: 76,880
• CFM @ 0.5" ESP: 1,653
• Nom. CFM: 2,000
• Nom. Tons: 5
• Stages: Single-Stage
• Wt. Lbs.: 139
