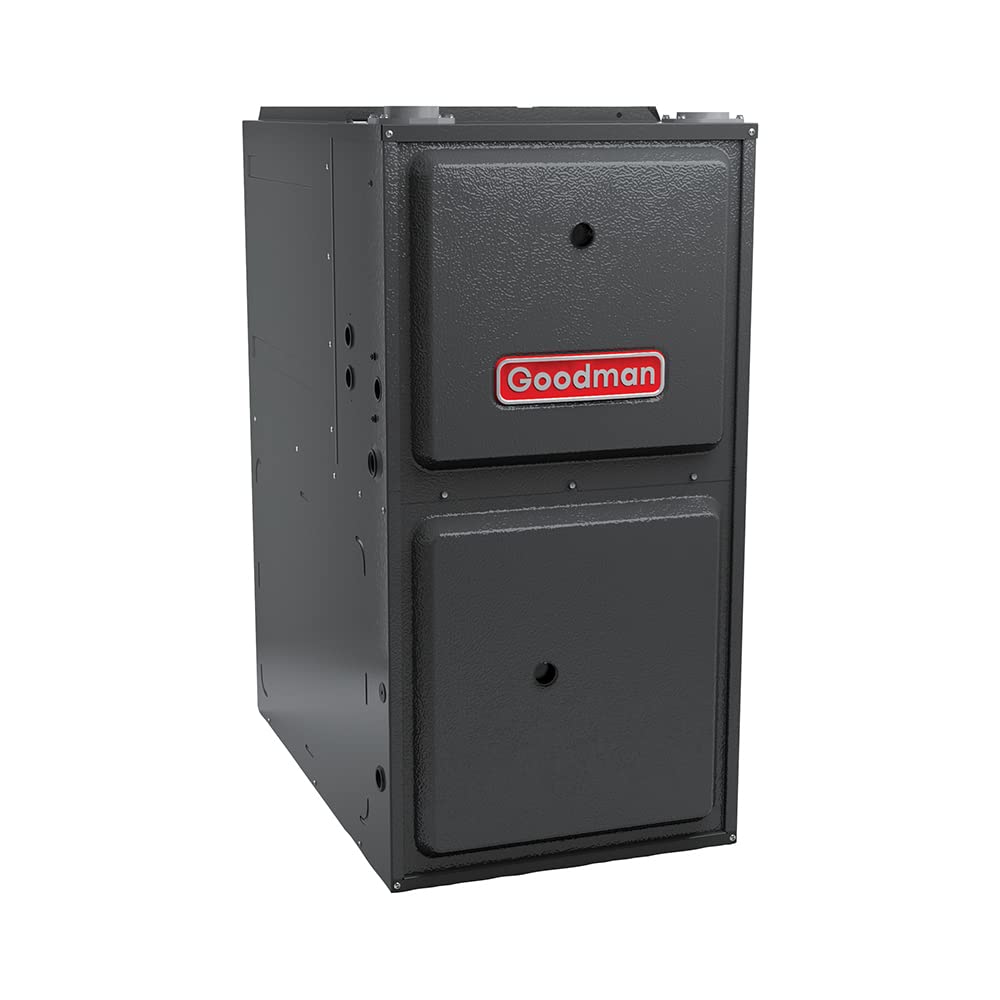

Goodman GMES921004CN Gas Furnace Multi Speed ECM, Single Stage 100000 BTU

Product Description

The Goodman GMES921004CN is a 92% AFUE gas furnace featuring a multi-speed ECM and single-stage operation. Designed for upflow or horizontal installation, this unit delivers 100000 BTUH/H with Low NOx emissions. The furnace includes a heavy-duty aluminized-steel tubular heat exchanger and a stainless-steel sloped secondary heat exchanger.

• Equipped with a heavy-duty aluminized-steel tubular heat exchanger.
• Features a multi-speed ECM blower motor with continuous fan speed.
• Certified for direct vent (2-pipe) or non-direct vent (1 pipe).

Product Highlights

This Goodman gas furnace offers efficient heating with a robust design and versatile installation options, ensuring reliable performance and simplified setup.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GMES921004CN
• Country of Origin: USA

Technical Specifications

• AFUE: 92 %
• Class: Gas Furnace
• Family: GMES92
• Category: Gas Furnace
• Keywords: GMES921004CN
• Unit Type: Indoor
• Unit Depth: 29 in
• Unit Width: 21 in
• Power Phase: 1 Ph
• Unit Height: 34-1/2 in
• Min. Circuit: 14.1 A
• Power Voltage: 115 V
• NOX Burner Type: Low NOx
• Power Frequency: 60 Hz
• Cabinet Features: 1. Multi-position installation: upflow, horizontal left or right2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)3. Easy to install top venting with optional side vent4. Convenient left or right connection for gas and electrical service5. Cabinet air leakage (Qleak) less than or equal to 2%6. Foil faced insulated heat exchanger section7. Bottom or side return air applications8. Heavy-gage steel cabinet with durable finish
• Model Efficiency: 0.92
• Motor Speed Type: Multi Speed ECM
• High-Fire Input Capacity: 100000 Btu
• High-Fire Output Capacity: 92100
• Item Model Number: GMES921004CN
• Part Number: GMES921004CN
• MPN: GMES921004CN
• Brand: Goodman
• Product Category: Unitary
• Product Class - (PIM): Gas Furnace
• System Family: Unitary Split System
• Function Category: Heating Only
• Product Type: Equipment
• Market Type: Residential-Single Family
• Product Family: GMES92
• Series Name: GMES92
• Installation Type: Ducted
• ENERGY STAR® Certified: No
• Installation Configuration: Upflow/Horizontal
• Produced in US: Yes
• FER Compliant: Yes
• AHRI Reference Number: 203400960.0
• Temperature Rise Range High Fire: 35-65 °F
• Max Overcurrent Protection: 15.0 A
• Dimensions - (Blower Diameter): 10 in
• Dimensions - (Blower Width): 10 in
• External Static Pressure - (Rated): 0.5
• Filter Quantity: 1.0
• Filter Size - (Min): 16 x 25
• Heat Exchanger Type: Air Cooled
• Number Of Burners: 5.0
• Vent Diameter: 2 in;3 in
• Blower Motor HorsePower: 3/4 metric hp
• Gas Valve Type: Single Stage
• Minimum Clearances to Combustible Materials: 1 ft
• Gas Furnace BTU: 100000
• Gas Furnace Efficiency: 92%
• Gas Valve: Single-Stage
• Indoor Fan Blower Motor: Multi-speed blower
