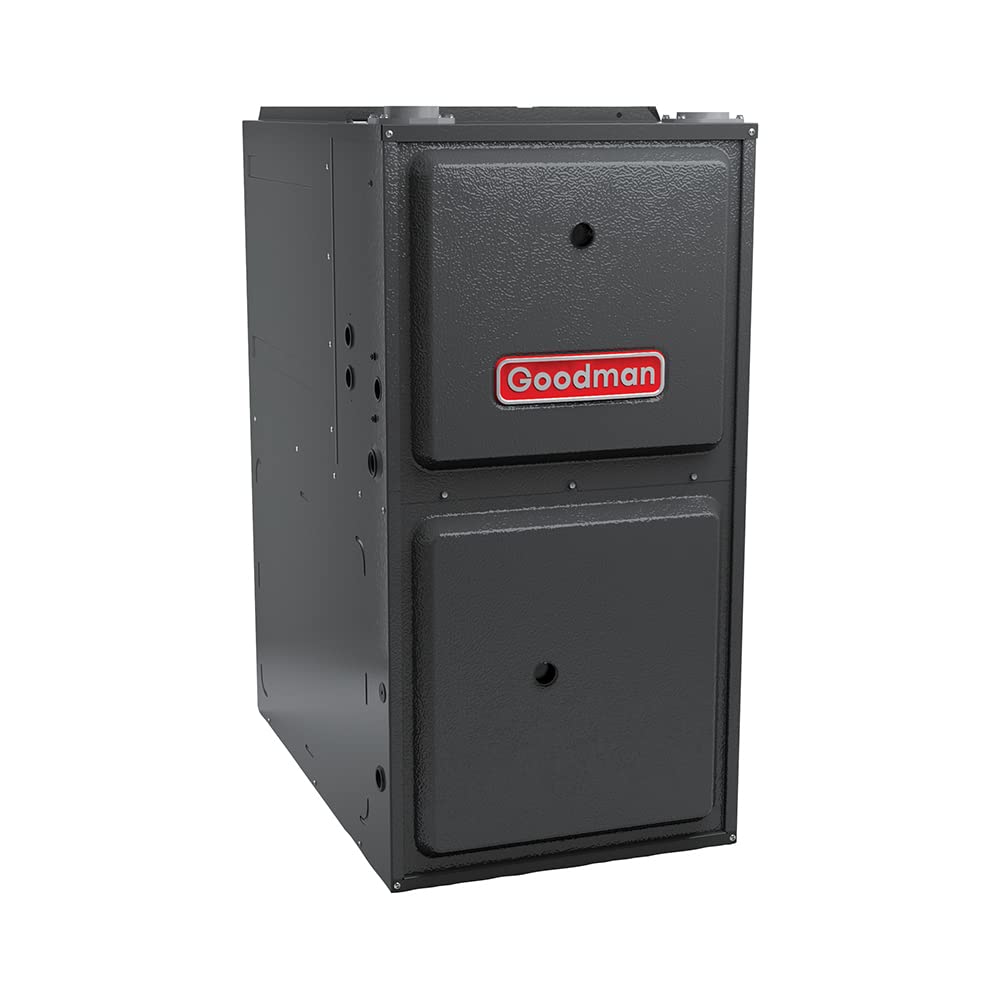

Goodman GMES920804CN Gas Furnace 80000 BTU

Product Description

The Goodman GMES920804CN gas furnace is a 92% AFUE, single-stage, multi-speed ECM unit designed for upflow/horizontal installation. This indoor unit features a low NOx burner and a heavy-duty aluminized-steel tubular heat exchanger. It is certified for direct or non-direct vent and offers convenient left or right connections for gas and electrical service.

• Equipped with a stainless-steel sloped secondary heat exchanger.
• Features a silicon nitride igniter and color-coded low-voltage terminals.
• Includes a multi-speed ECM blower motor with continuous fan speed.

Product Highlights

The Goodman GMES920804CN gas furnace provides efficient heating with versatile installation options and durable components.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GMES920804CN
• Country of Origin: USA

Technical Specifications

• AFUE: 92 %
• Class: Gas Furnace
• Family: GMES92
• Category: Gas Furnace
• Keywords: GMES920804CN
• Unit Type: Indoor
• Unit Depth: 29 in
• Unit Width: 21 in
• Power Phase: 1 Ph
• Unit Height: 34-1/2 in
• Min. Circuit: 14.1 A
• Power Voltage: 115 V
• NOX Burner Type: Low NOx
• Power Frequency: 60 Hz
• Model Efficiency: 0.92
• Motor Speed Type: Multi Speed ECM
• Product ID Bar Code: GMES920804CN
• Prop65 Label Required: TRUE
• High-Fire Input Capacity: 80000 Btu
• Airflow Rate High Heating: 275 ft³/min
• High-Fire Output Capacity: 73680
• Model Info: GMES920804CN
• Batteries Required?: No
• Brand: Goodman
• Product Category: Unitary
• Product Class - (PIM): Gas Furnace
• System Family: Unitary Split System
• Function Category: Heating Only
• Product Type: Equipment
• Market Type: Residential-Single Family
• Product Family: GMES92
• Series Name: GMES92
• Installation Type: Ducted
• FER Compliant: Yes
• Universal Product Code (UPC): 663051590601.0
• Item Stocking Unit of Measure (UOM): EA
• Installation Configuration: Upflow/Horizontal
• Produced in US: Yes
• Product ID: GMES920804CN
• Temperature Rise Range High Fire: 35-65 °F
• Current Type: AC
• Max Overcurrent Protection: 15.0 A
• Air Flow Rate (High) - Heating: 1794 ft³/min
• ANSI Certifed: Yes
• Dimensions - (Blower Diameter): 10 in
• Dimensions - (Blower Width): 10 in
• ETL Listed: Yes
• External Static Pressure - (Rated): 0.5
• Filter Size - (Min): 16 x 25
• Heat Exchanger Type: Air Cooled
• Number Of Burners: 4.0
• Vent Diameter: 2 in;3 in
• Gas Valve Type: Single Stage
• Proposition 65 Label: Yes
• Carton Type: CTN
• Case Qty: 1.0
• Gas Furnace BTU: 80000
• Gas Furnace Efficiency: 92%
• Gas Valve: Single-Stage
• Indoor Fan Blower Motor: Multi-speed blower
• Type: Gas Furnace
• Product Line: GMSS92
• Fuel Type: Natural Gas
• Vent Type: Direct Vent
• Modulating/Staging: Single Stage
• Blower Motor Type: Single Speed
• Configuration: Upflow/Horizontal
• Gas Conversion Kit: Available
• DOE Regional Compliance: Nationwide (Except CA)
• Heating BTU: 80000
• High Fire Input: 80000 BTU
• High Fire Output: 73860 BTU
• Maximum Air Flow: 1600 CFM
• Low NOx Emissions: Yes
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 11.7 Amps
• Recommended Breaker Size: 15 Amps
• Flue Connection Size: 2 or 3 Inches
• Cabinet Width: 21 Inches
• Product Height: 34 1/2 Inches
• Product Width: 21 Inches
• Product Depth: 28 3/4 Inches
• Shipping Weight: 137 Pounds
• AHRI Certified: Yes
• ISO Certified: Yes
