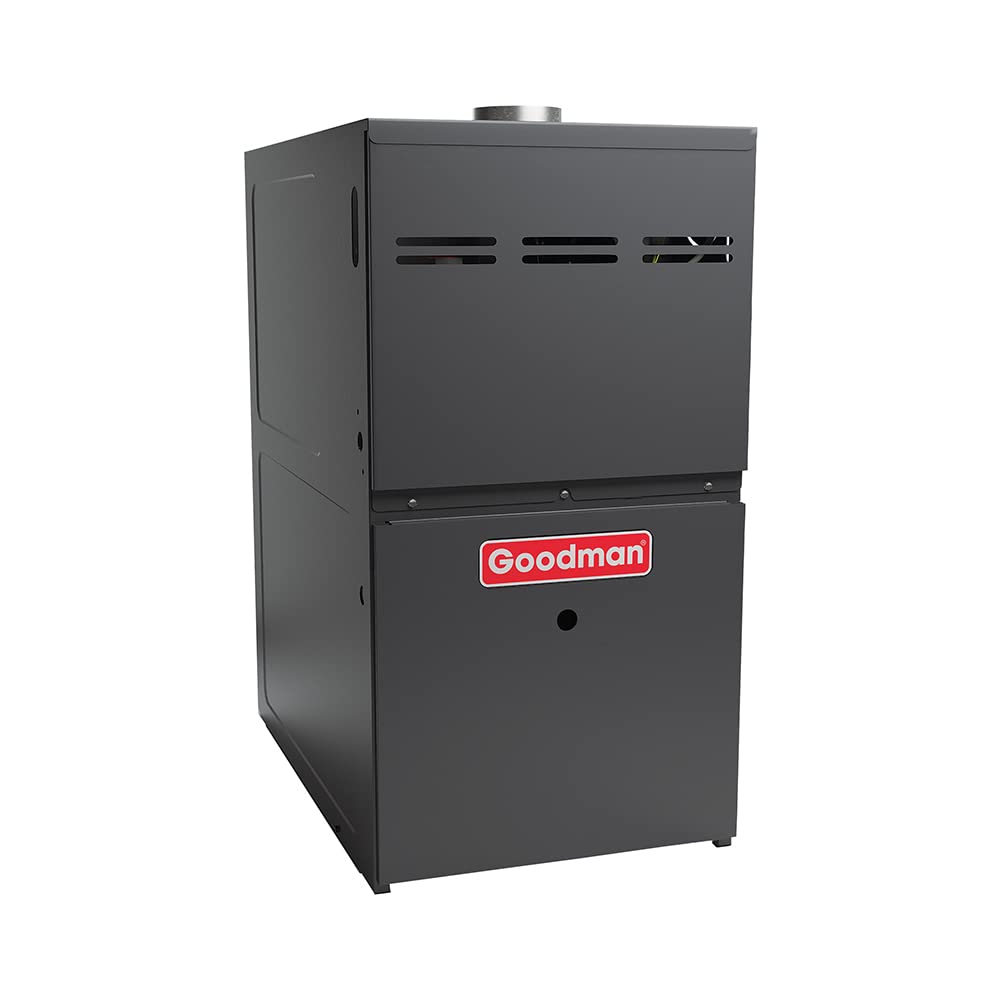

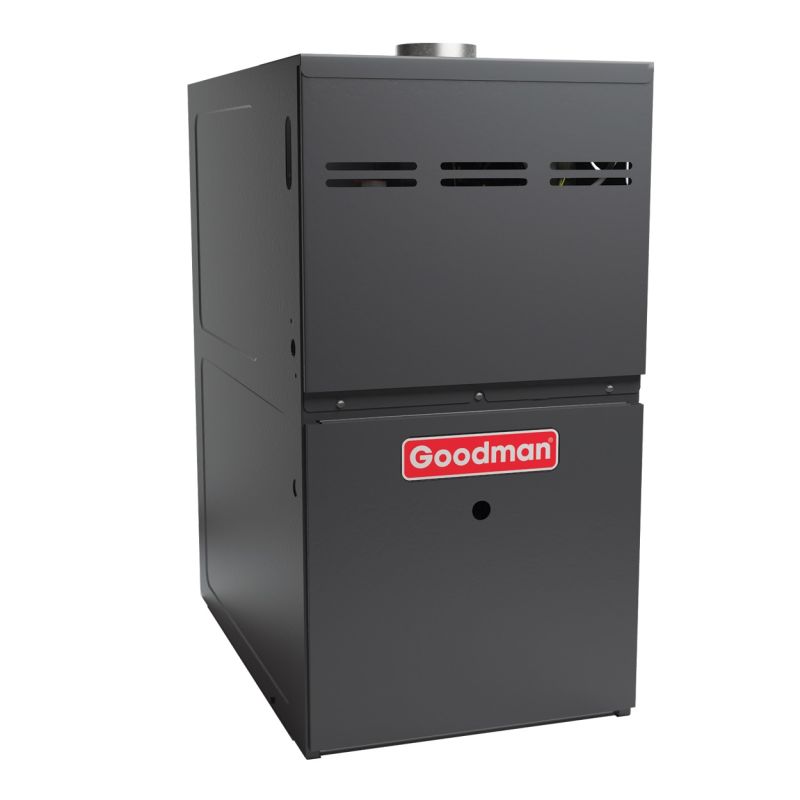

Goodman GMES800804BN Gas Furnace Multi Speed ECM, Single Stage 80000 BTU

Product Description

The Goodman GMES800804BN gas furnace features high-quality construction and efficient operation. This single-stage, multi-speed ECM furnace utilizes a superior heat exchanger design for reliable heating. It is designed for upflow or horizontal installation and includes provisions for an electronic air cleaner and humidifier. The unit has a self-diagnostic control board with constant memory.

• Equipped with a heavy-duty aluminized-steel tubular heat exchanger.
• Features a multi-speed ECM blower motor with continuous fan speed.
• Offers multi-position installation: upflow, horizontal left or right.

Product Highlights

This Goodman gas furnace provides efficient heating with a durable design and easy installation, ensuring reliable performance and energy savings.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GMES800804BN
• Country of Origin: USA

Technical Specifications

• AFUE: 80 %
• Class: Gas Furnace
• Family: GMES80
• Category: Gas Furnace
• Keywords: GMES800804BN
• Unit Type: Indoor
• Unit Depth: 28 in
• Unit Width: 17-1/2 in
• Power Phase: 1 Ph
• Unit Height: 33.5 in
• Min. Circuit: 12.45 A
• Power Voltage: 115 V
• Power Frequency: 60 Hz
• Model Efficiency: 0.8
• Motor Speed Type: Multi Speed ECM
• High-Fire Input Capacity: 80000 Btu
• Airflow Rate High Heating: 706 ft³/min
• High-Fire Output Capacity: 64,000
• Brand: Goodman
• MPN: GMES800804BN
• Installation Type: Ducted
• Installation Configuration: Upflow/Horizontal
• Heat Exchanger Type: Gas
• Gas Valve Type: Single Stage
• Max Overcurrent Protection: 15.0 A
• Air Flow Rate (High) - Heating: 1231 ft³/min
• Air Flow Rate (Low) - Heating: 706 ft³/min
• Blower Motor RPM: 1200 r/min
• Dimensions - (Blower Diameter): 10 in
• Dimensions - (Blower Width): 8 in
• Minimum Clearances to Combustible Materials: 1 ft
• Number Of Burners: 4.0
• Vent Diameter: 4 in
• Blower Motor HorsePower: 3/4 metric hp
• External Static Pressure - (Rated): 0.5
• ANSI Certifed: Yes
• ETL Listed: Yes
• Item Model Number: GMES800804BN
• Heating BTU: 80,000
• Maximum Air Flow: 1600 CFM
• Cabinet Width: 17 1/2 Inches
• Product Height: 33 1/2 Inches
• Product Width: 17 1/2 Inches
• Product Depth: 28 Inches
• AHRI Certified: Yes
• ISO Certified: Yes
• AHRI Reference Number: 203401020
• Airflow Direction: Upflow/Horizontal
• Exhaust Flue Requirement: Metal
• Furnace Efficiency / AFUE: 80%
• Blower Motor: Multi Speed - ECM
• Configuration: Upflow/Horizontal
• Electrical: 115 V. 1 Phase 60 Hz
• Burner Stages: Single
• Fuel Type: Gas
• Height: 33 3/8"
• Width: 17 1/2"
• Depth: 28"
• Product code: 90080
• SKU: 90080
• Product Type: Furnace
• Operating Mode: Gas
• BTUs: 80,000
• BtuH Input: 80000
• BtuH Output: 64,000
• CFM @ 0.5" ESP: 1398
• LoNox: No
• Nom. CFM: 1,600
• Nom. Tons: 4
• Stages: Single-Stage
• Vent Size: 4"
• Width (in.): 17.5
• Height (in.): 33-3/8
• Depth (in): 28
• Heating Capacity: 4 to 5 Tons
• Fuel: Natural Gas
• Max CFM: 1600
• Efficiency: 80%
• Model: GMES800804BN
• Type: Upflow, Horizontal Gas Furnace
