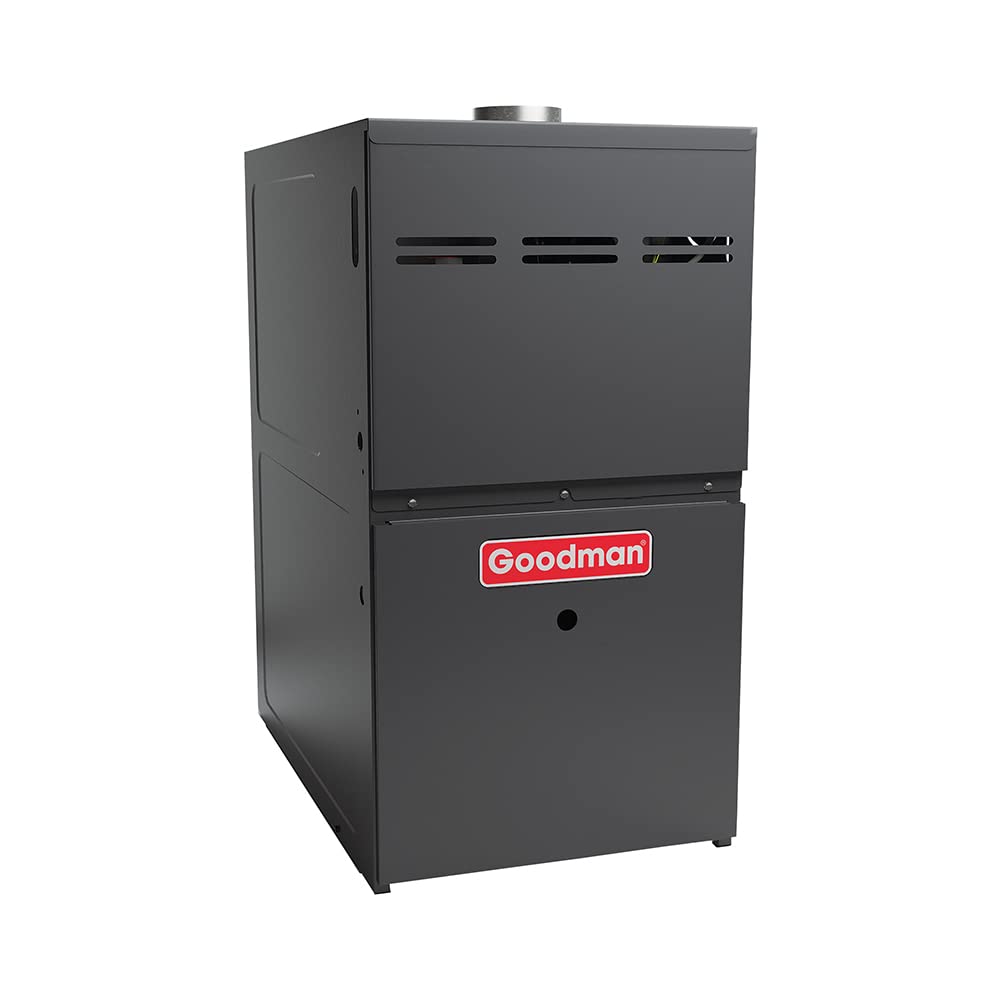

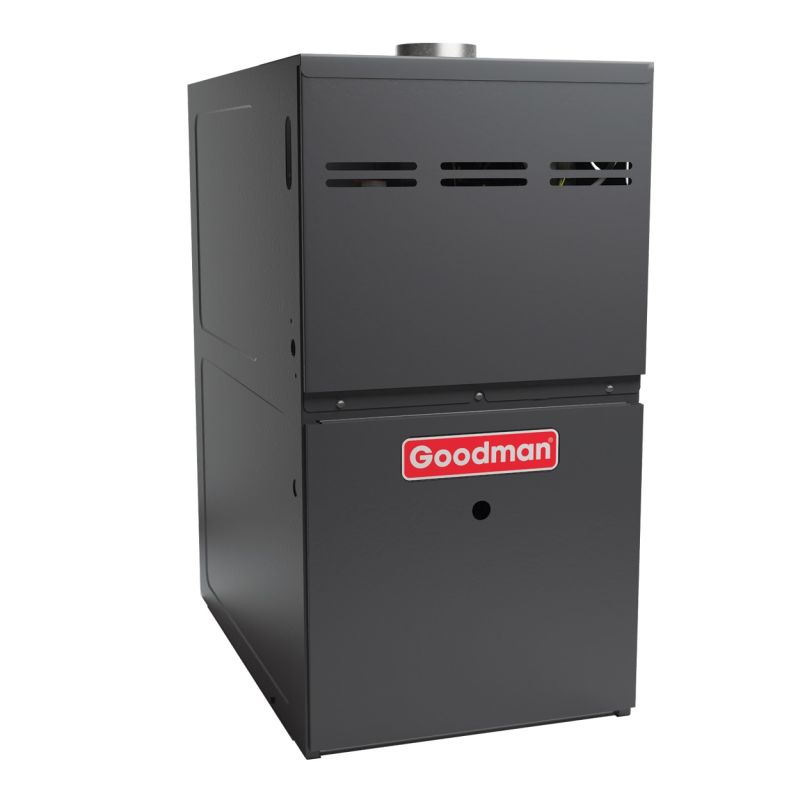

Goodman GMES800604BN Gas Furnace Multi Speed ECM 60000 BTU

Product Description

The GOODMAN GMES800604BN gas furnace features high-quality construction and efficient operation. This single-stage, multi-speed furnace utilizes a heat exchanger design to provide reliable heating. It features a multi-speed ECM blower motor with continuous fan speed and a self-diagnostic control board with constant memory. The unit can be installed in upflow or horizontal configurations.

• Heavy-duty aluminized-steel tubular heat exchanger
• Silicon Nitride igniter
• Multi-speed ECM blower motor with continuous fan speed

Product Highlights

The GMES800604BN gas furnace provides efficient and reliable heating with its robust design and versatile installation options.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GMES800604BN
• Country of Origin: USA

Technical Specifications

• AFUE: 80 %
• Class: Gas Furnace
• Family: GMES80
• Category: Gas Furnace
• Keywords: GMES800604BN
• Unit Type: Indoor
• Unit Depth: 28 in
• Unit Width: 17-1/2 in
• Power Phase: 1 Ph
• Unit Height: 33.5 in
• Min. Circuit: 12.45 A
• Power Voltage: 115 V
• Power Frequency: 60 Hz
• Model Efficiency: 0.8
• Motor Speed Type: Multi Speed ECM
• High-Fire Input Capacity: 60000 Btu
• Airflow Rate High Heating: 757 ft³/min
• High-Fire Output Capacity: 48,000
• Fuel Type: Gas
• Model Info: GMES800604BN
• Burner type: Gas
• Installation Type: Freestanding
• Product Type: Equipment
• System Family: Unitary Split System
• Function Category: Heating Only
• Heat Exchanger Type: Gas
• Installation Configuration: Upflow/Horizontal
• Gas Valve Type: Single Stage
• Max Overcurrent Protection: 15.0 A
• Blower Motor RPM: 1200 r/min
• Blower Available AC Tonnage High: 4 Tonnage
• Blower Available AC Tonnage Low: 2 Tonnage
• Vent Diameter: 4 in
• Dimensions - (Blower Diameter): 10 in
• Dimensions - (Blower Width): 8 in
• Minimum Clearances to Combustible Materials: 1 ft
• Air Flow Rate (Low) - Heating: 757 ft³/min
• Temperature Rise Range High Fire: 20-50 °F
• Heating BTU: 60000
• Blower Motor: Multi Speed - ECM
• Maximum CFM: 1760
• Electrical: 115 V. 1 Phase 60 Hz
• Burner Stages: Single
• BtuH Input: 60000
• BtuH Output: 48,000
• CFM @ 0.5" ESP: 1,418
• LoNox: No
• Motor Type: ECM
• Nom. CFM: 1,600
• Nom. Tons: 4
• Stages: Single-Stage
• Cabinet Width: 17 1/2 Inches
• Product Height: 33 1/2 Inches
• Product Width: 17 1/2 Inches
• Product Depth: 28 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• AHRI Reference Number: 203401018
• Gas Valve: Single-Stage
• Voltage: 115 Volts
• Modulating/Staging: Single Stage
• Blower Motor Type: ECM Multi-Speed
• Gas Conversion Kit: Available
• DOE Regional Compliance: Nationwide (Except CA)
• High Fire Input: 60000 BTU
• Ultra Low NOx Emissions: No
• Low NOx Emissions: No
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 12.45 Amps
• Recommended Breaker Size: 15 Amps
• Flue Connection Size: 4 Inches
