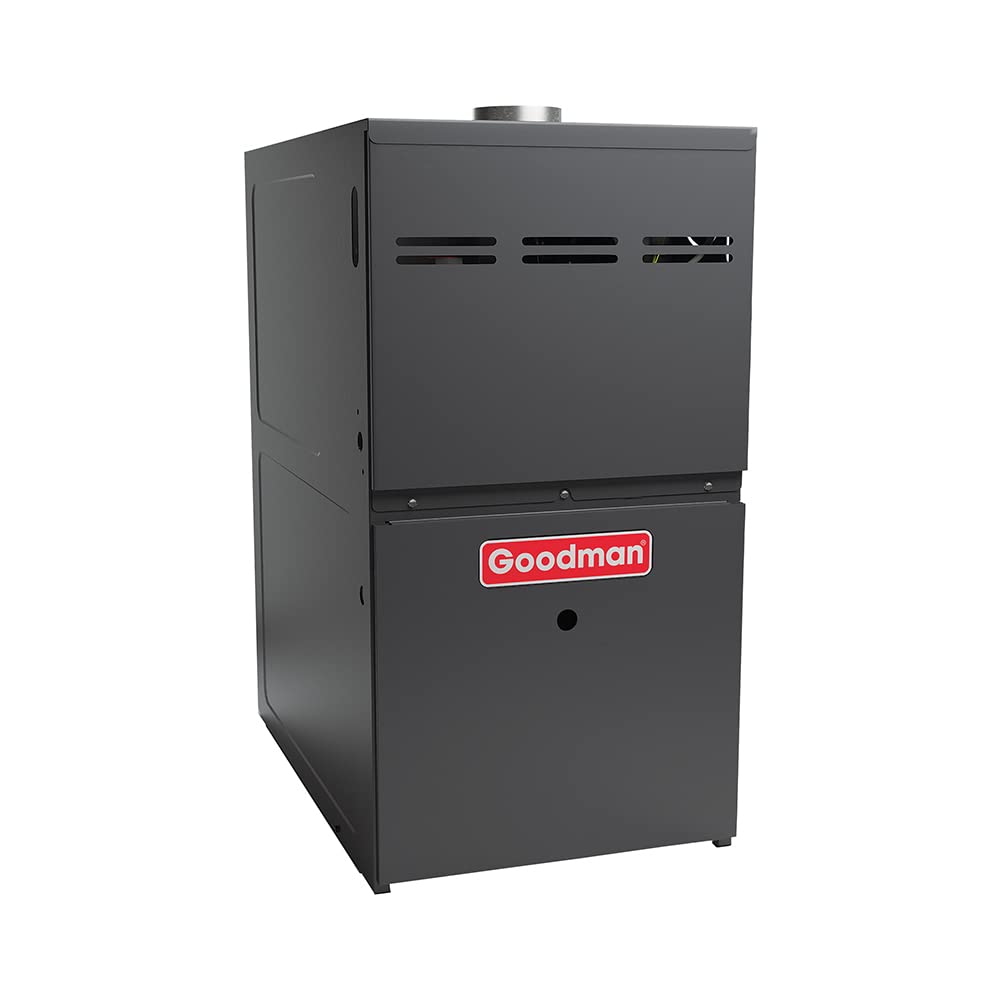

Goodman GMES800603AN Gas Furnace Multi Speed ECM, Single Stage 60000 BTU

Product Description

The GOODMAN GMES800603AN gas furnace features multi-speed ECM, single-stage operation, and an 80% AFUE rating. This unit is designed for upflow or horizontal installation and delivers 60,000 BTU/H. It includes a heavy-duty aluminized-steel tubular heat exchanger and a silicon nitride igniter for reliable performance. The furnace also features color-coded low-voltage terminals for simplified installation.

• Equipped with a heavy-duty aluminized-steel tubular heat exchanger.
• Features a multi-speed ECM blower motor with continuous fan speed.
• Includes a self-diagnostic control board with constant memory.

Product Highlights

The GMES800603AN gas furnace provides efficient heating with a multi-speed ECM motor and durable components for long-lasting performance and easy maintenance.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GMES800603AN
• Country of Origin: USA

Technical Specifications

• AFUE: 80 %
• Class: Gas Furnace
• Family: GMES80
• Category: Gas Furnace
• Unit Type: Indoor
• Unit Depth: 28 in
• Unit Width: 14 in
• Power Phase: 1 Ph
• Unit Height: 33.5 in
• Min. Circuit: 8.7 A
• Power Voltage: 115 V
• Power Frequency: 60 Hz
• Model Efficiency: 0.8
• Motor Speed Type: Multi Speed ECM
• High-Fire Input Capacity: 60000 Btu
• Airflow Rate High Heating: 681
• High-Fire Output Capacity: 48,000
• Item Model Number: GMES800603AN
• Part Number: GMES800603AN
• Installation Type: Ducted
• ENERGY STAR® Certified: No
• Installation Configuration: Upflow/Horizontal
• Produced in US: Yes
• Heat Exchanger Type: Gas
• Gas Valve Type: Single Stage
• Temperature Rise Range High Fire: 20-50 °F
• Max Overcurrent Protection: 15.0 A
• Blower Motor RPM: 1200 r/min
• Blower Available AC Tonnage High: 3 Tonnage
• Blower Available AC Tonnage Low: 1.5 Tonnage
• Dimensions - (Blower Diameter): 10 in
• Dimensions - (Blower Width): 6 in
• Minimum Clearances to Combustible Materials: 1 ft
• Number Of Burners: 3.0
• Vent Diameter: 4 in
• ANSI Certifed: Yes
• ETL Listed: Yes
• External Static Pressure - (Rated): 0.5
• Filter Size - (Min): 16X25
• Blower Motor HorsePower: 1/2 metric hp
• Heating BTU: 64,000
• Blower Motor: Multi-Speed
• Maximum CFM: 1400
• Phase: Single Phase
• Burner Stages: Single
• Fuel Type: Propane, Natural Gas
• Product Line: GMES80
• Vent Type: Chimney Vent
• Modulating/Staging: Single Stage
• Blower Motor Type: ECM Multi-Speed
• Gas Conversion Kit: Available
• DOE Regional Compliance: Nationwide (Except CA)
• Maximum Air Flow: 1200 CFM
• Ultra Low NOx Emissions: No
• Low NOx Emissions: No
• Recommended Breaker Size: 15 Amps
• Flue Connection Size: 4 Inches
• BtuH Input: 60000
• BtuH Output: 48,000
• CFM @ 0.5" ESP: 964
• Nom. CFM: 1,200
• Nom. Tons: 3
• Stages: Single-Stage
• Vent Size: 4"
