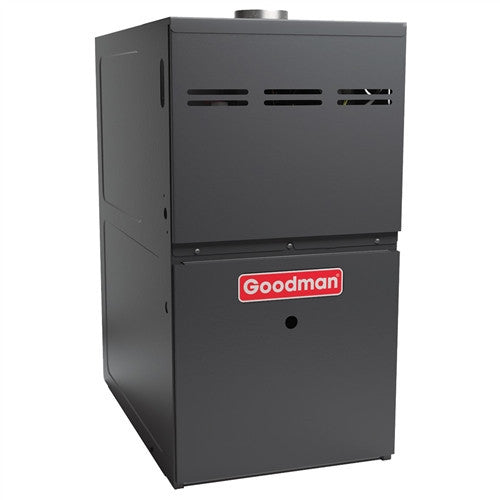

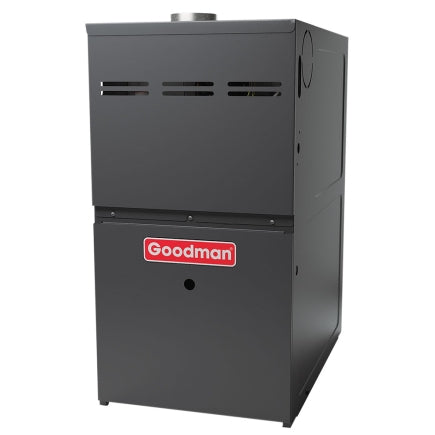

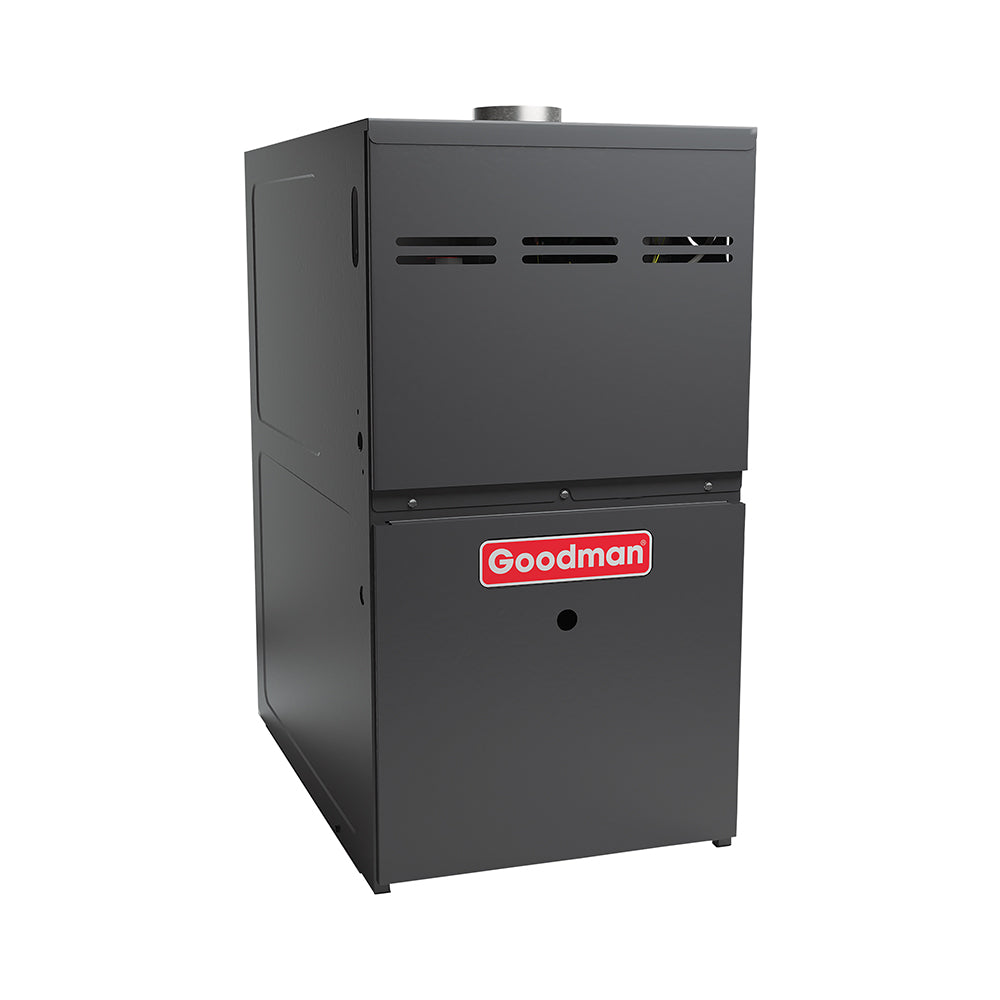

Goodman GMES800403AN Gas Furnace 40000 BTU

Product Description

The Goodman GMES800403AN is a gas furnace with 80% AFUE, multi-speed ECM, and a single stage. Designed for upflow or horizontal installation, it delivers 40,000 BTUH/H input capacity. The furnace features a heavy-duty aluminized-steel tubular heat exchanger and a silicon nitride igniter.

• Equipped with a multi-speed ECM blower motor with continuous fan speed.
• Features a single-stage gas valve and a single-speed inducer draft blower.
• Includes color-coded low-voltage terminals and a fault code LED output.

Product Highlights

This Goodman gas furnace provides efficient heating with a durable design and user-friendly features.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GMES800403AN
• Country of Origin: USA

Technical Specifications

• AFUE: 80
• Class: Gas Furnace
• Family: GMES80
• Category: Gas Furnace
• Keywords: GMES800403AN
• Unit Type: Indoor
• Unit Depth: 28 in
• Unit Width: 14 in
• Power Phase: 1 Ph
• Unit Height: 33.5 in
• Min. Circuit: 15.0 A
• Power Voltage: 115 V
• Power Frequency: 60 Hz
• Model Efficiency: 0.8
• Motor Speed Type: Multi Speed ECM
• Product ID Bar Code: GMES800403AN
• Prop65 Label Required: TRUE
• High-Fire Input Capacity: 40000
• Airflow Rate High Heating: 658 ft³/min
• High-Fire Output Capacity: 32,000
• Fuel Type: Natural Gas
• Installation Type: Freestanding
• Installation Method: Freestanding
• Item Model Number: GMES800403AN
• Part Number: GMES800403AN
• Installation Configuration: Upflow/Horizontal
• Heat Exchanger Type: Gas
• Gas Valve Type: Single Stage
• Temperature Rise Range High Fire: 25-55 °F
• Vent Diameter: 4 in
• Blower Diameter: 10 in
• Blower Width: 6 in
• Blower Available AC Tonnage High: 3 Tonnage
• Blower Available AC Tonnage Low: 1.5 Tonnage
• Blower Motor RPM: 1200 r/min
• Filter Size - (Min): 16X25
• Minimum Clearances to Combustible Materials: 1 ft
• Max Overcurrent Protection: 15 amps
• Air Flow Rate (High) - Heating: 1138 ft³/min
• ANSI Certifed: Yes
• ETL Listed: Yes
• Number Of Burners: 2.0
• BtuH Input: 40000
• BtuH Output: 32,000
• CFM @ 0.5" ESP: 981
• Configuration: Upflow/Horizontal
• Depth: 28"
• Height: 33-3/8"
• LoNox: No
• Nom. CFM: 1,200
• Nom. Tons: 3
• Stages: Single-Stage
• Vent Size: 4"
• Width: 14"
• BTUs: 40,000
• Airflow Direction: Upflow/Horizontal
• Cabinet Width: 14”
• AHRI Number: 203401015
• Product Height (in): 33.375
• Product Length (in): 28
• Product Width (in): 14
• Electrical Phase: 1-Phase
• Exhaust Pipe: Metal
• Fuel Source: Natural Gas
• Gas Valve: Single Stage
• Primary Heating Capacity: 35,001 - 40,000 BTU
• System Application Type: Central Split Systems
• Voltage: 120
