Product Description

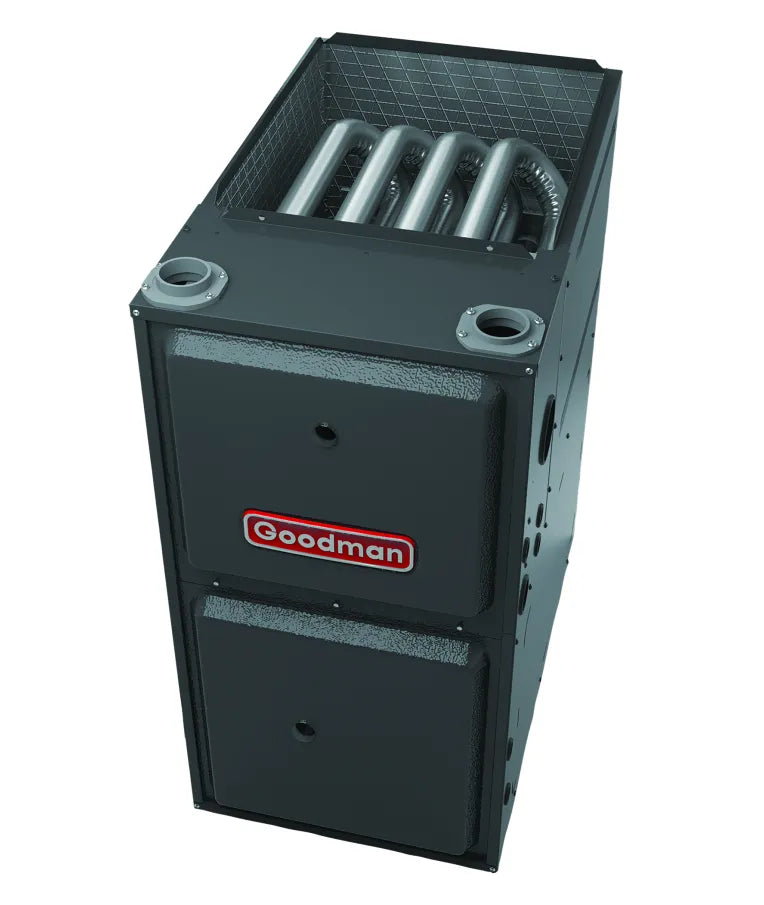

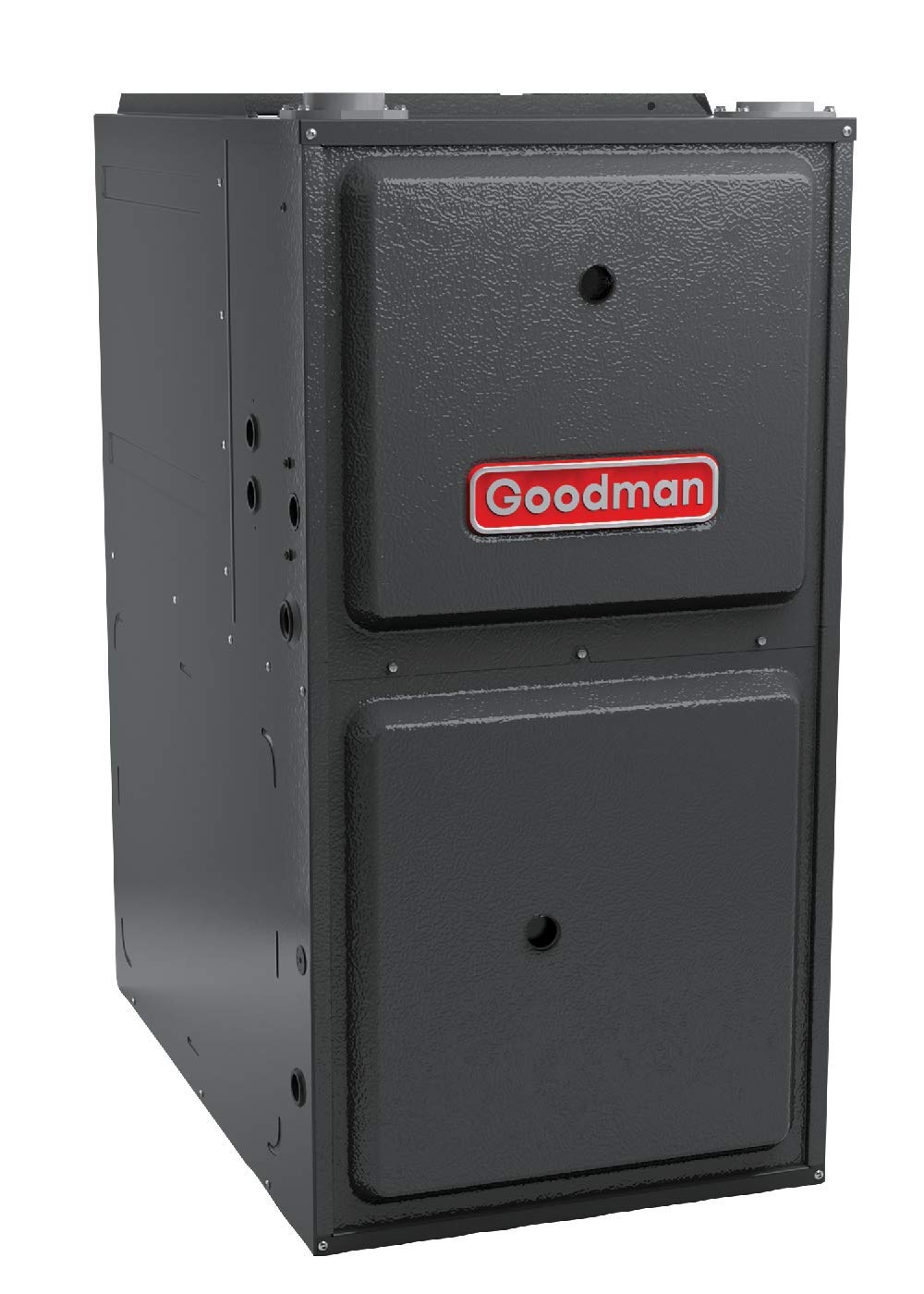

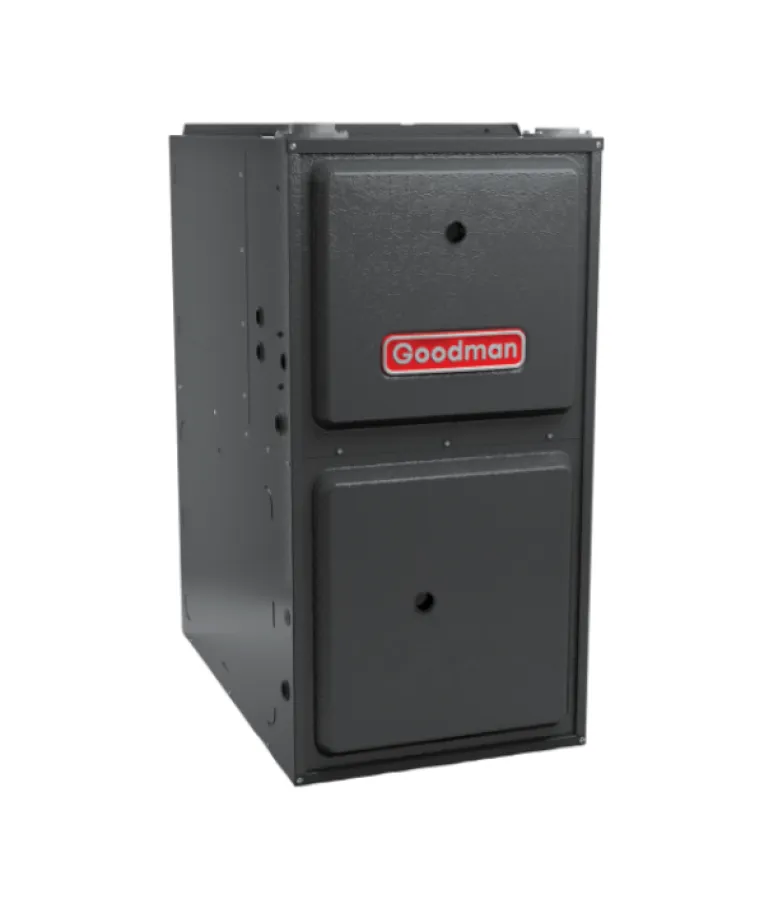

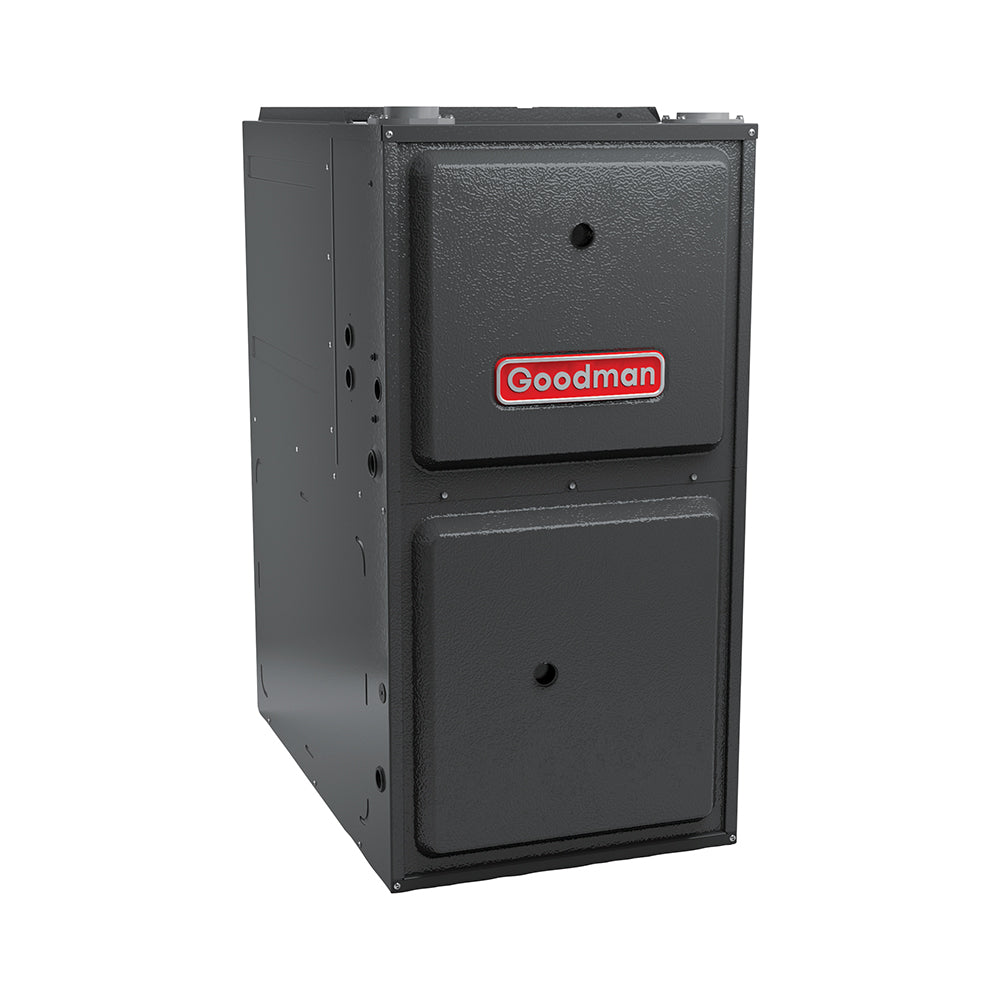

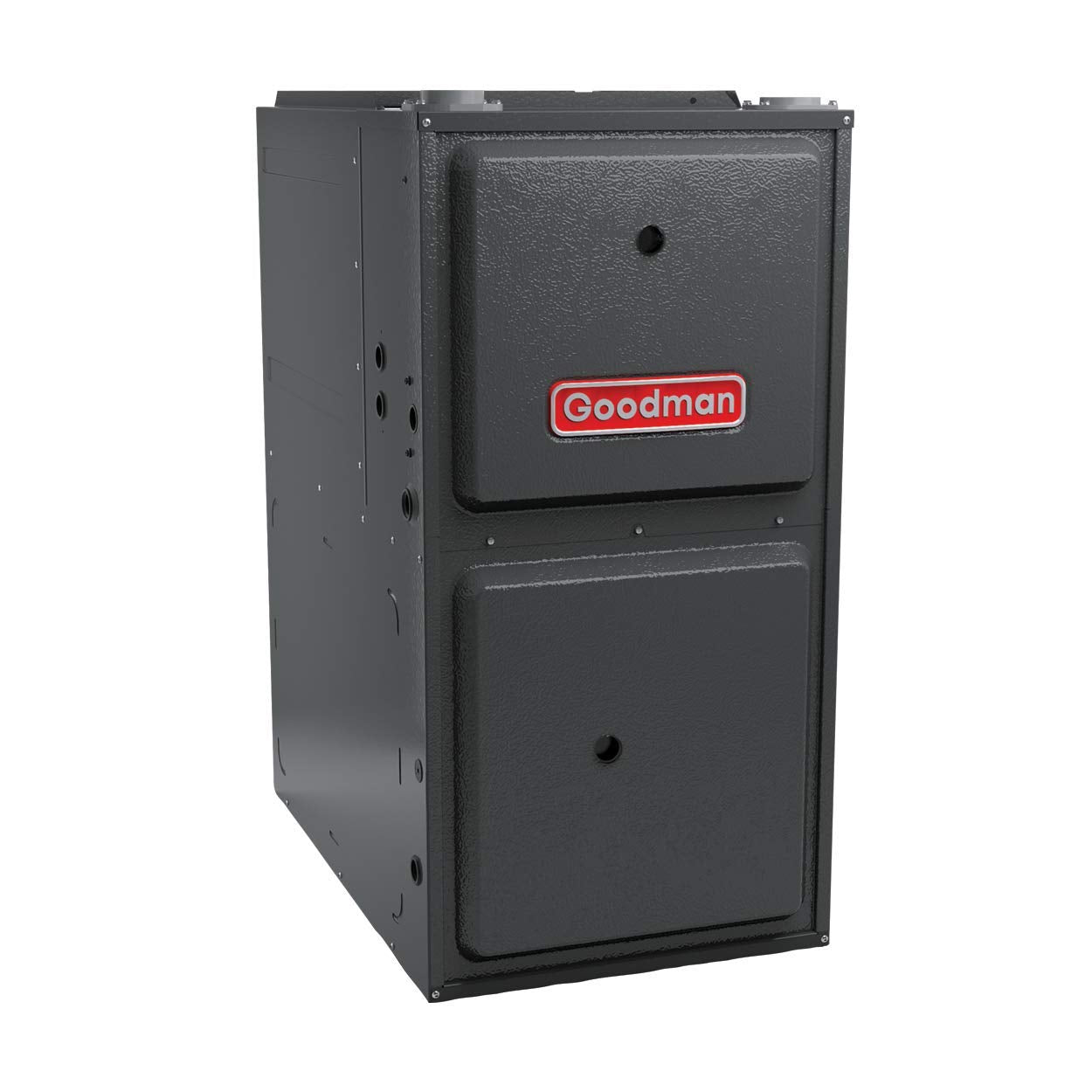

The Goodman GMEC961005CN is a 96% AFUE gas furnace featuring a multi-speed ECM and two-stage operation. This upflow/horizontal unit delivers 100000 BTUH/H with low NOx emissions. The furnace is designed for indoor use and operates on a 115V power supply at 60Hz. It features a heavy-duty aluminized-steel tubular heat exchanger.
- Equipped with a heavy-duty aluminized-steel tubular heat exchanger.
- Features a stainless-steel sloped secondary heat exchanger.
- Includes a silicon nitride igniter and color-coded low-voltage terminals.
Product Highlights
This Goodman gas furnace provides efficient and reliable heating with its two-stage gas valve and multi-speed ECM blower motor.
Product Information
Standard Information
-
Brand: GOODMAN
-
Manufacturer Part Number: GMEC961005CN
-
Country of Origin: USA
Technical Specifications
-
AFUE: 96
-
Class: Gas Furnace
-
Family: GMEC96
-
Category: Gas Furnace
-
Keywords: GMEC961005CN
-
Unit Type: Indoor
-
Unit Depth: 29 in
-
Unit Width: 21 in
-
Power Phase: 1
-
Unit Height: 34-1/2 in
-
Min. Circuit: 14.1 A
-
Power Voltage: 115 V
-
NOX Burner Type: Low NOx
-
Power Frequency: 60 Hz
-
Model Efficiency: 0.96
-
Motor Speed Type: Multi Speed ECM
-
High-Fire Input Capacity: 100000 BTU
-
High-Fire Output Capacity: 96000
-
Gas Valve: Two-stage
-
Heating BTU: 100000
-
Maximum Air Flow: 2000 CFM
-
Configuration: Upflow/Horizontal
-
Cabinet Width: 21 Inches
-
Product Height: 34 1/2 Inches
-
Product Width: 21 Inches
-
Product Depth: 28 3/4 Inches
-
Energy Star: Yes
-
Blower Motor: Multi-Speed - ECM
-
Burner Stages: Two
-
Airflow Direction: Upflow/Horizontal
-
Fuel Type: Gas
-
Vent Type: Direct Vent
-
Modulating/Staging: Two Stage
-
Blower Motor Type: ECM Multi-Speed
-
Gas Conversion Kit: Available
-
DOE Regional Compliance: Nationwide (Except CA)
-
Low Fire Input: 70000 BTU
-
Low Fire Output: 67200 BTU
-
Low NOx Emissions: Yes
-
Minimum Circuit Ampacity: 13.3 Amps
-
Recommended Breaker Size: 15 Amps
-
Flue Connection Size: 2 or 3 Inches
-
ETL Listed: Yes
-
AHRI Certified: Yes
-
ISO Certified: Yes
-
AHRI Reference Number: 9101245
-
Installation Configuration: Upflow/Horizontal
-
Number Of Burners: 5.0
-
Max Overcurrent Protection: 20 A
-
Vent Diameter: 2 in;3 in
-
Dimensions - (Blower Diameter): 11 in
-
Dimensions - (Blower Width): 10 in
-
Blower Available AC Tonnage High: 5 Tonnage
-
Blower Available AC Tonnage Low: 3 Tonnage
-
Heat Exchanger Type: Gas
-
Blower Motor HorsePower: 1 metric hp
