Product Description

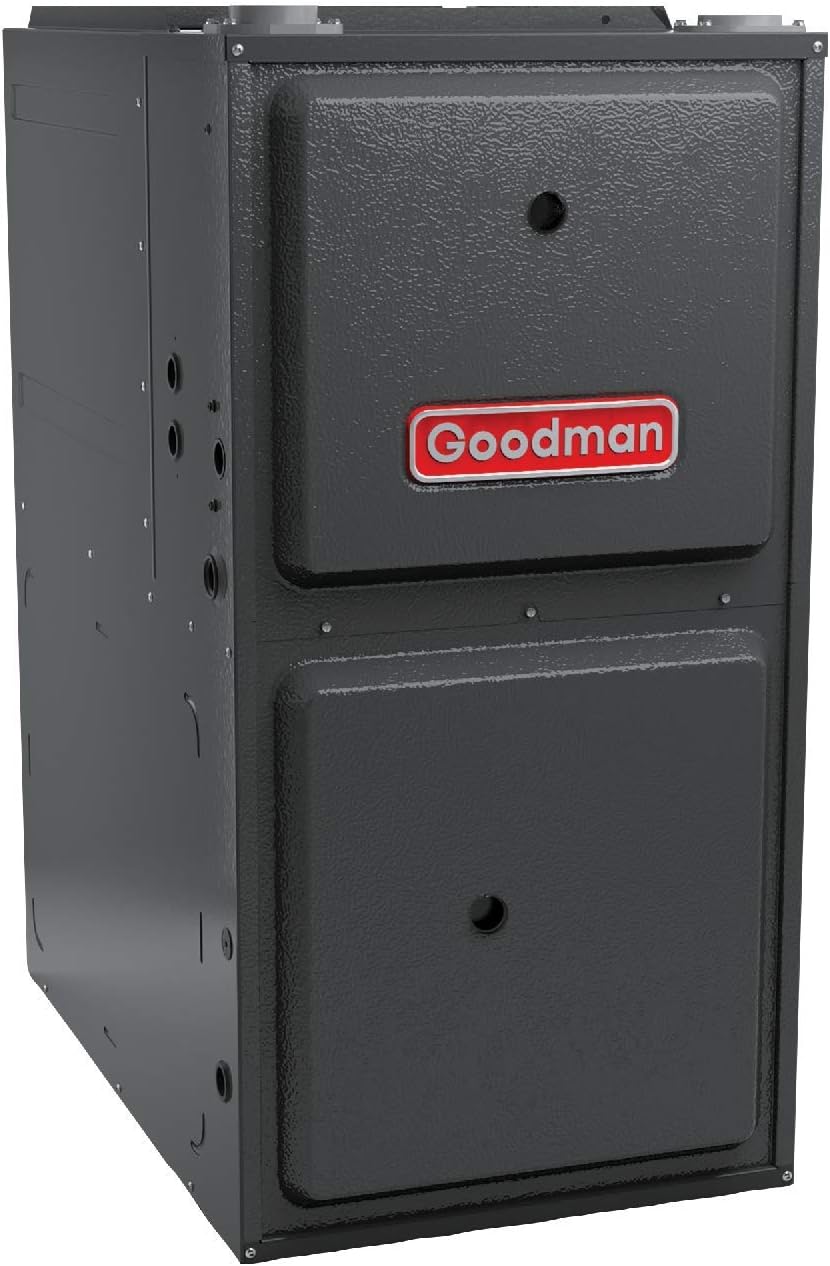

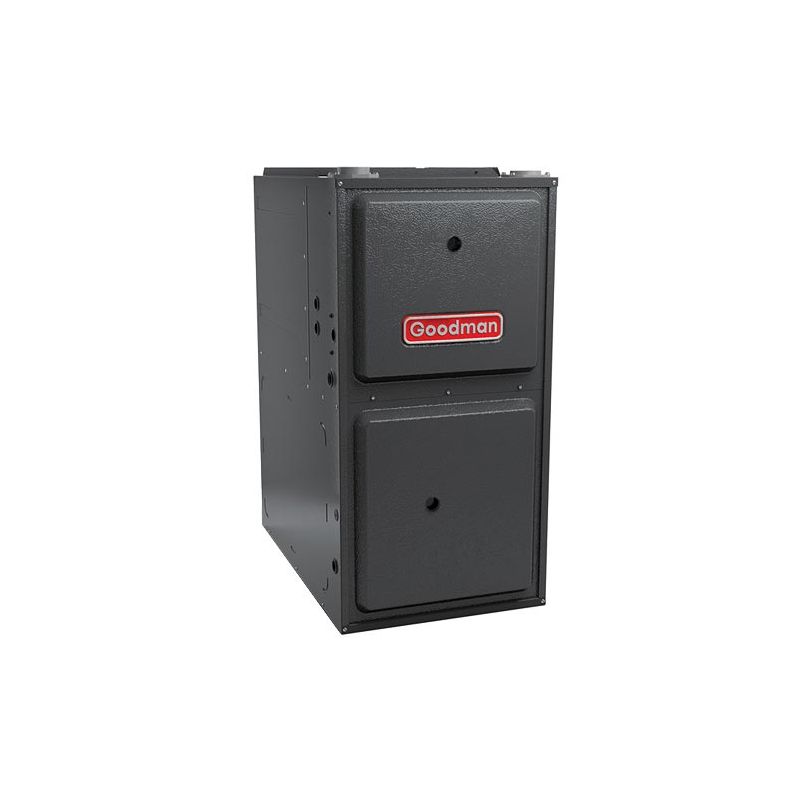

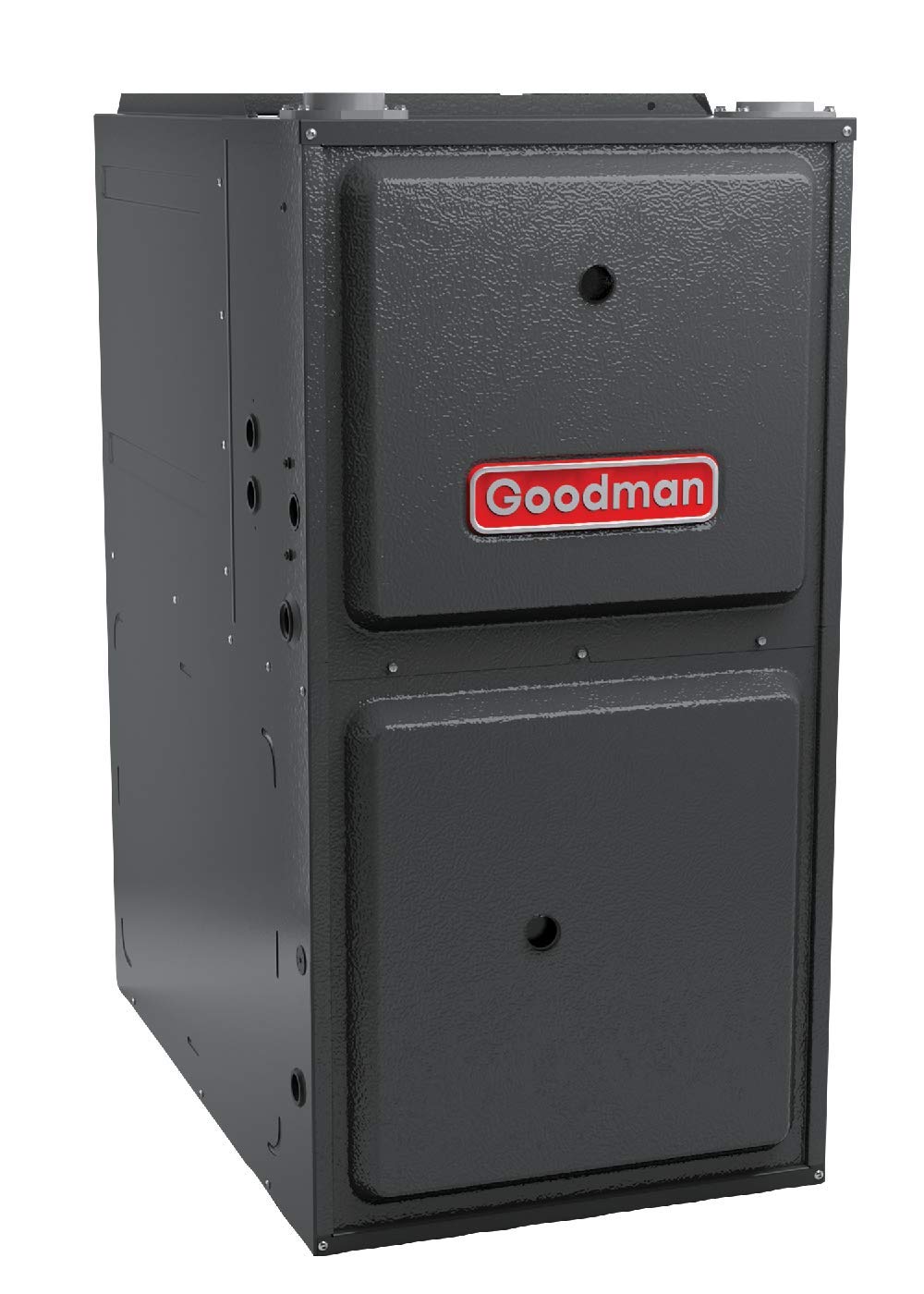

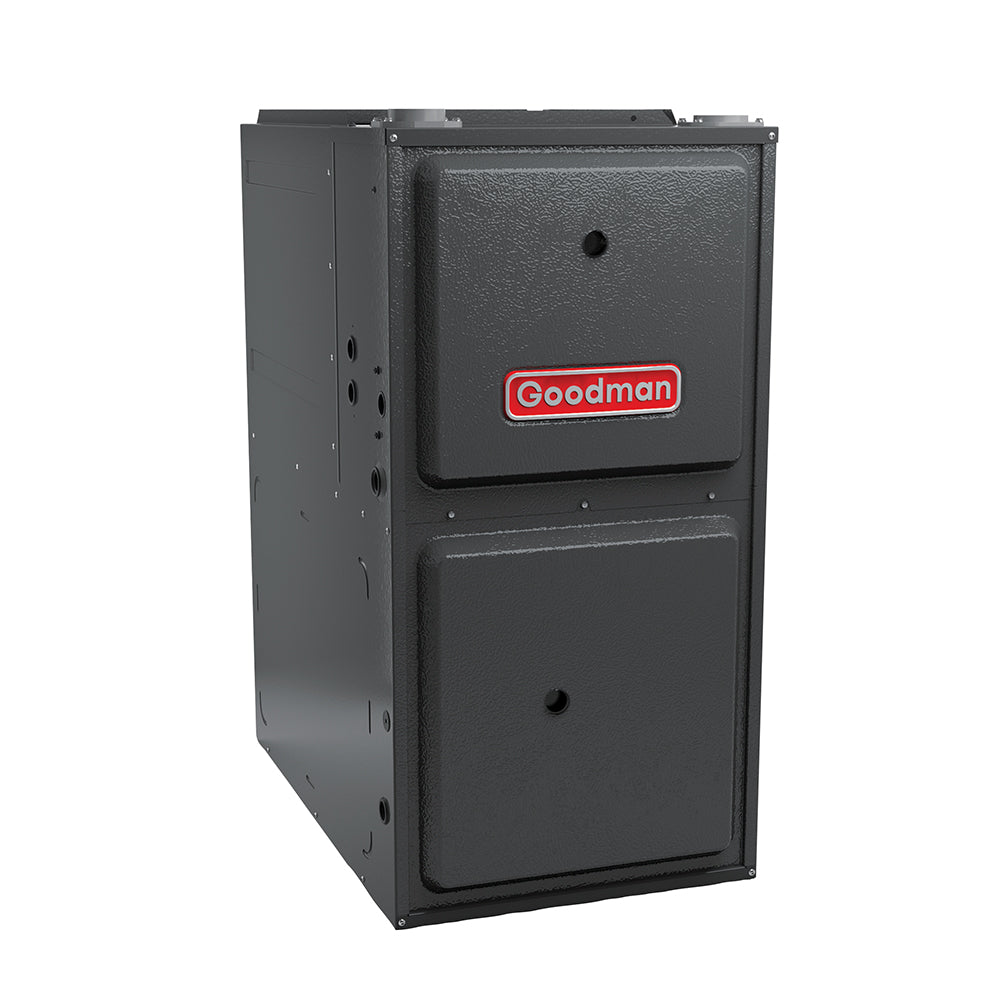

The Goodman GMEC961004CN gas furnace provides 96% AFUE. This multi-speed ECM, two-stage unit is designed for upflow or horizontal installation. The furnace features a heavy-duty aluminized-steel tubular heat exchanger and a stainless-steel sloped secondary heat exchanger. It is AHRI certified and ETL listed.
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel sloped secondary heat exchanger
- Multi-speed ECM blower motor with continuous fan speed
- Two-Stage gas valve
Product Highlights
The Goodman GMEC961004CN is a high-efficiency gas furnace with a two-stage valve and multi-speed ECM motor.
Product Information
Standard Information
-
Brand: GOODMAN
-
Manufacturer Part Number: GMEC961004CN
-
Country of Origin: USA
Technical Specifications
-
AFUE: 96
-
Class: Gas Furnace
-
Family: GMEC96
-
Category: Gas Furnace
-
Keywords: GMEC961004CN
-
Unit Type: Indoor
-
Unit Depth: 29"
-
Unit Width: 21"
-
Power Phase: 1
-
Unit Height: 34-1/2"
-
Min. Circuit: 14.1
-
Power Voltage: 115 V
-
NOX Burner Type: Low NOx
-
Power Frequency: 60 Hz
-
Model Efficiency: 0.96
-
Motor Speed Type: Multi Speed ECM
-
High-Fire Input Capacity: 100000 Btu
-
High-Fire Output Capacity: 96000
-
Brand: Goodman
-
Manufacturer: Goodman
-
Item Model Number: GMEC961004CN
-
Heating Capacity: 100,000 BTU
-
CFM: 1600 CFM
-
Cabinet Width: 21"
-
Voltage Rating: 115 V
-
Phase: 1 ph
-
Hertz: 60 Hz
-
Installation Type: Ducted
-
Product Type: Equipment
-
System Family: Unitary Split System
-
Function Category: Heating Only
-
Market Type: Residential-Single Family
-
Heat Exchanger Type: Gas
-
Installation Configuration: Upflow/Horizontal
-
Gas Valve Type: Two Stage
-
Vent Diameter: 2 in;3 in
-
Low-Fire Input Capacity: 70000
-
Low-Fire Output Capacity: 67200
-
Blower Available AC Tonnage High: 4 Tonnage
-
Blower Available AC Tonnage Low: 1.5 Tonnage
-
Temperature Rise Range High Fire: 35-65 °F
-
Temperature Rise Range Low Fire: 35-65 °F
-
Blower Motor HorsePower: 1 metric hp
-
Core Material: Aluminium Alloy
-
Control Method: App
-
Special Feature: Air Purification Filter
-
Air Flow Efficiency: 1200 Cubic Feet Per Minute Per Watt
-
Blower Motor: Multi-Speed - ECM
-
Maximum CFM: 1600
-
Configuration: Upflow/Horizontal
-
Flue Location: Right
-
Energy Star: Yes
-
Electrical: 115 V. 1 Phase 60 Hz
-
Burner Stages: Two
-
Fuel Type: Gas
-
Height: 34.5"
-
Depth: 28.75"
-
Airflow Direction: Upflow/Horizontal
-
Exhaust Flue Requirement: Plastic / PVC
-
Material: Heavy Gauge Steel
-
Tonnage: 4 ton
-
Amperage Rating: 13.3 A
-
HP Rating: 1 hp at 1075 rpm
-
Input BTU Rating: 100000 Btu/hr
-
Frequency Rating: 60 Hz
-
Connection Type: 1/2 in FPT
-
Number Of Burners: 5.0
-
Max Overcurrent Protection: 20 A
-
Prop65 Label Required: TRUE
