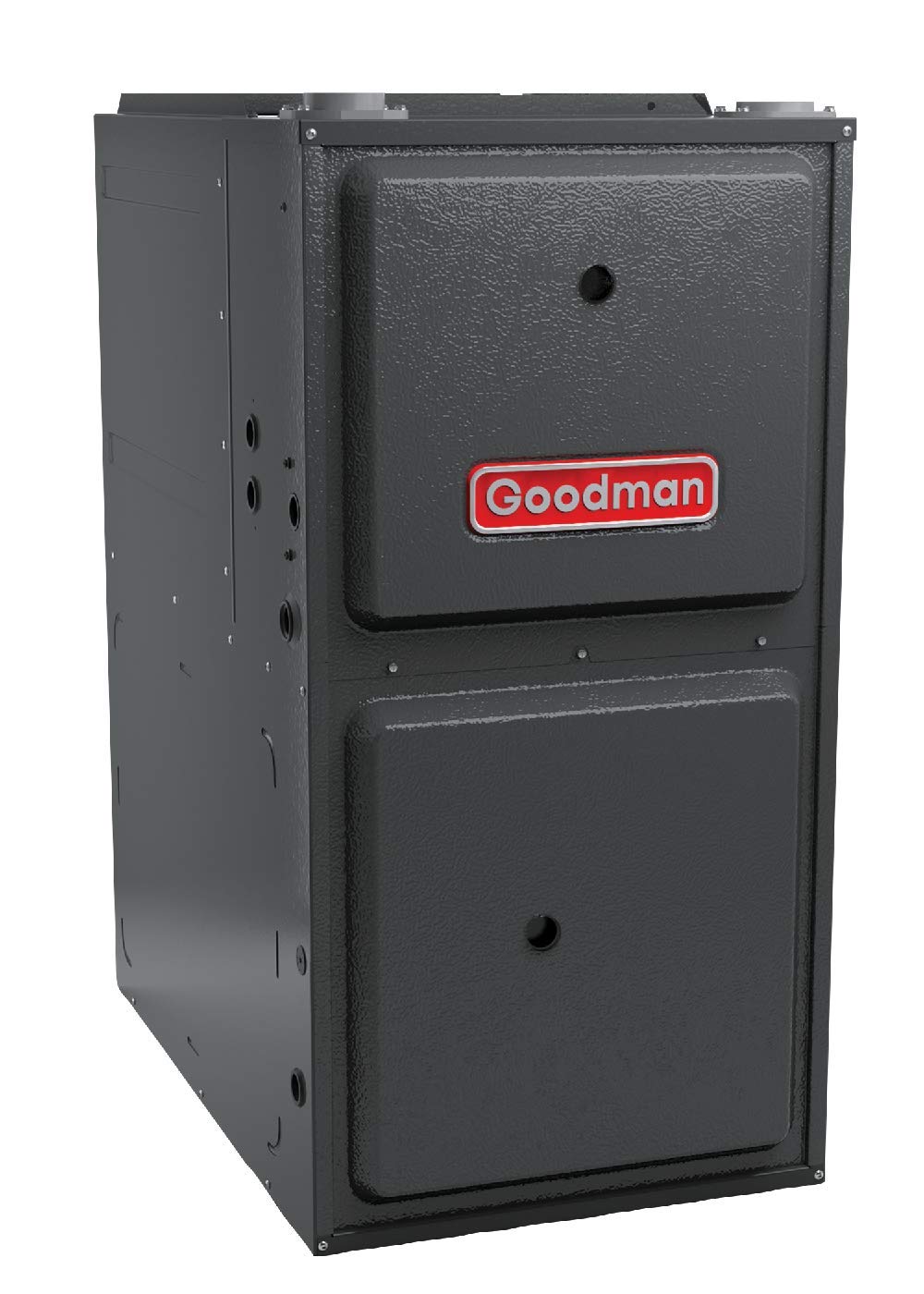

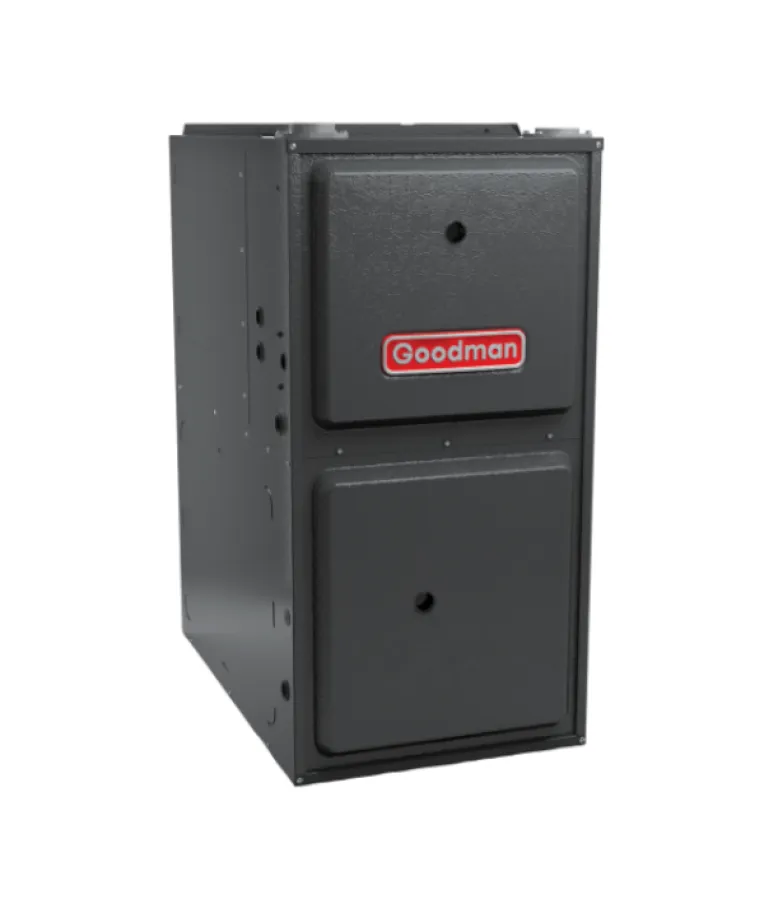

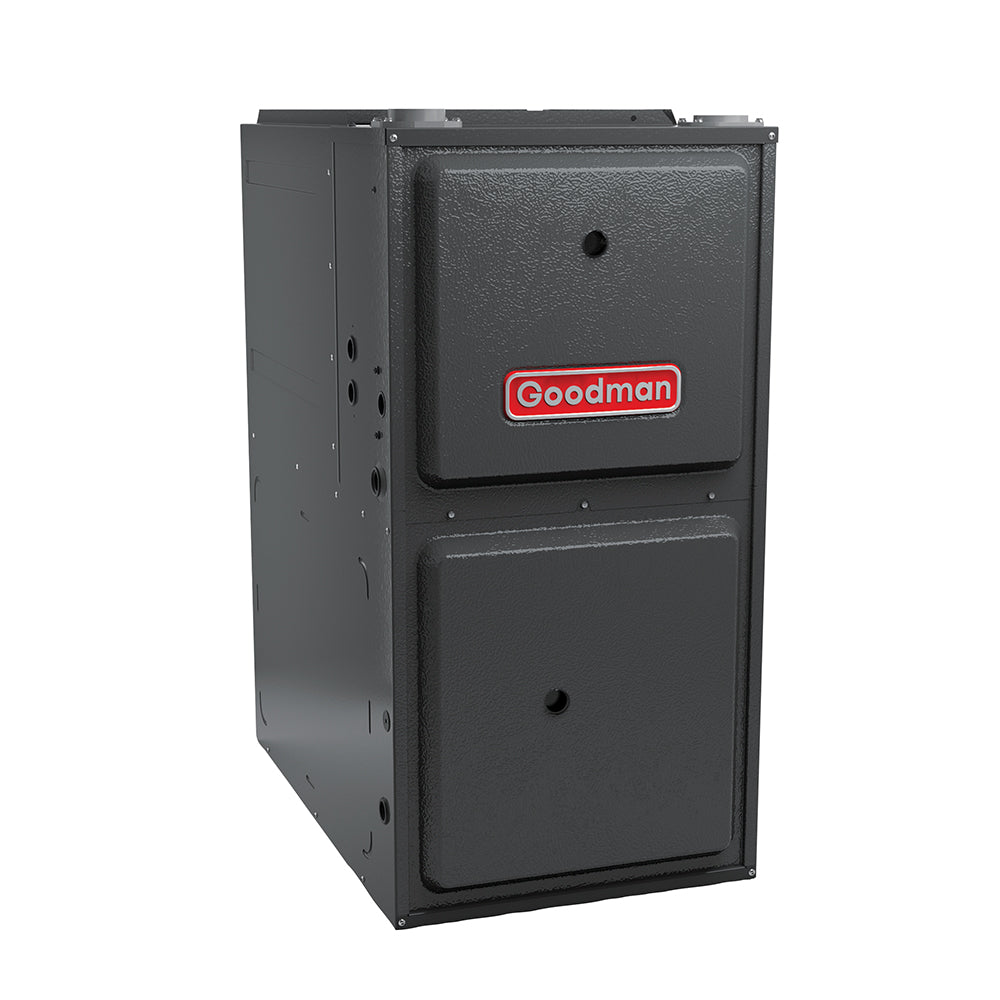

Goodman GMEC960803BN Gas Furnace Multi Speed ECM, Two Stage 80000 BTU 17-1/2 inches

Product Description

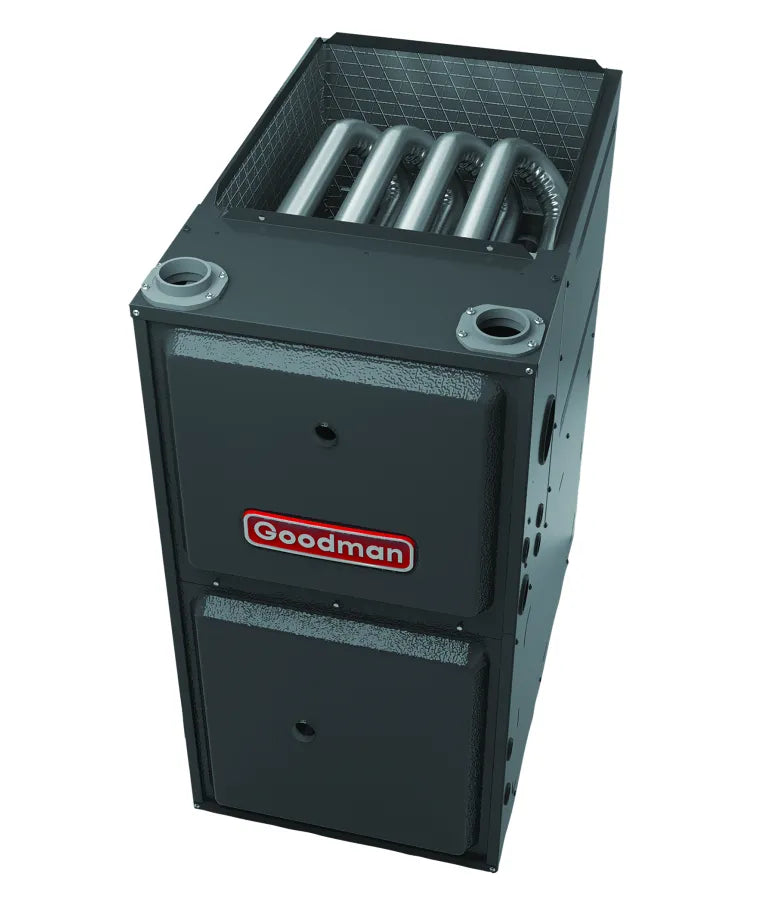

The Goodman GMEC960803BN is a gas furnace with a multi-speed ECM, two-stage operation, and an AFUE of 96%. This upflow/horizontal furnace features a heavy-duty aluminized-steel tubular heat exchanger and a stainless-steel sloped secondary heat exchanger. It is designed for quiet and economical heating with low NOx emissions.

• Equipped with a multi-speed ECM blower motor and a two-stage gas valve.
• Features a self-diagnostic control board with constant memory.
• Certified for direct vent (2-pipe) or non-direct vent (1 pipe) and multi-position installation.

Product Highlights

The Goodman GMEC960803BN gas furnace provides efficient and reliable heating with its two-stage operation and durable components.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GMEC960803BN
• Country of Origin: USA

Technical Specifications

• AFUE: 96 %
• Class: Gas Furnace
• Family: GMEC96
• Category: Gas Furnace
• Unit Type: Indoor
• Unit Depth: 29 in
• Unit Width: 17-1/2 in
• Power Phase: 1 Ph
• Unit Height: 34-1/2 in
• Min. Circuit: 7.5 A
• Power Voltage: 115 V
• NOX Burner Type: Low NOx
• Power Frequency: 60 Hz
• Model Efficiency: 0.96
• Motor Speed Type: Multi Speed ECM
• High-Fire Input Capacity: 80000 Btu
• High-Fire Output Capacity: 76800
• Family Description: Two-Stage, Multi-Speed ECM Gas Furnace Up to 96% AFUE
• Low-Fire Input Capacity: 56000
• Low-Fire Output Capacity: 53760
• Max Overcurrent Protection: 15 A
• Blower Available AC Tonnage High: 3 Tonnage
• Blower Available AC Tonnage Low: 1.5 Tonnage
• Temperature Rise Range High Fire: 35-65 °F
• Temperature Rise Range Low Fire: 35-65 °F
• Blower Motor HorsePower: 1/2 metric hp
• Installation Configuration: Upflow/Horizontal
• Heat Exchanger Type: Gas
• Number Of Burners: 4.0
• Vent Diameter: 2 in;3 in
• Gas Valve Type: Two Stage
• Fuel Type: Gas
• Voltage: 115
• Motor Type: Multi-speed blower
• Brand: Goodman
• Item Model Number: GMEC960803BN
• Manufacturer: Goodman
• Configuration: Upflow/Horizontal
• Heating BTU: 80,000
• Blower Motor: Multi-Speed - ECM
• Maximum CFM: 1200
• Energy Star: Yes
• Burner Stages: Two
• Cabinet Width: 17.5 inch
